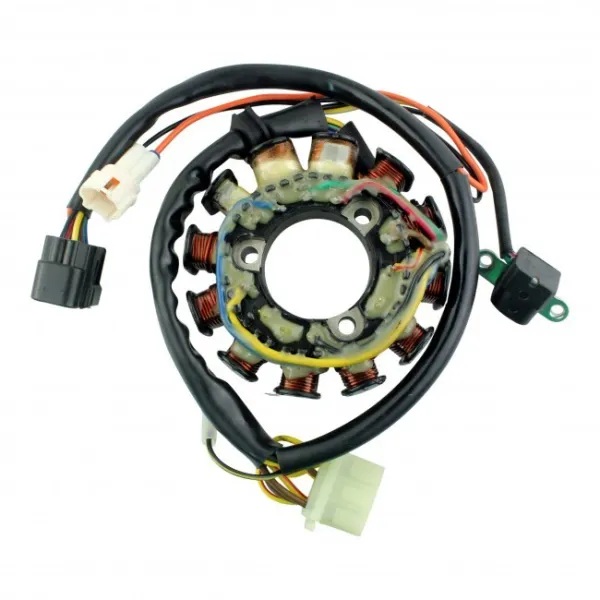

Alternateur Stator Polaris Motoneige Supersport Edge Classic Sport Touring Trail RMK Touring Indy Sport XCF 340 440 500 550

    2003
        Polaris
            340 Supersport Edge Carb F/C
                Snowmobile 2003 Polaris 340 Supersport Edge Carb F/C
            550 Classic Edge Carb F/C
                Snowmobile 2003 Polaris 550 Classic Edge Carb F/C
            550 Sport Touring Carb F/C
                Snowmobile 2003 Polaris 550 Sport Touring Carb F/C
            550 Supersport Edge Carb F/C
                Snowmobile 2003 Polaris 550 Supersport Edge Carb F/C
            550 Supersport M-10 F/O Carb F/C
                Snowmobile 2003 Polaris 550 Supersport M-10 F/O Carb F/C
            550 Supersport M-10 X F/O Carb F/C
                Snowmobile 2003 Polaris 550 Supersport M-10 X F/O Carb F/C
            550 Trail RMK Carb F/C
                Snowmobile 2003 Polaris 550 Trail RMK Carb F/C 136
    2002
        Polaris
            550 Classic Carb F/C
                Snowmobile 2002 Polaris 550 Classic Carb F/C
            550 Sport Touring Carb F/C
                Snowmobile 2002 Polaris 550 Sport Touring Carb F/C
                Snowmobile 2002 Polaris 550 Sport Touring Carb F/C ES Euro
            550 Supersport Carb F/C
                Snowmobile 2002 Polaris 550 Supersport Carb F/C
            550 Trail RMK Carb F/C
                Snowmobile 2002 Polaris 550 Trail RMK Carb F/C 136
            550 Trail Touring Carb F/C
                Snowmobile 2002 Polaris 550 Trail Touring Carb F/C
    2001
        Polaris
            550 Sport Touring Carb F/C
                Snowmobile 2001 Polaris 550 Sport Touring Carb F/C
                Snowmobile 2001 Polaris 550 Sport Touring Carb F/C ES
                Snowmobile 2001 Polaris 550 Sport Touring Carb F/C ES Euro
            550 Trail RMK Carb F/C
                Snowmobile 2001 Polaris 550 Trail RMK Carb F/C 136
            XCF Edge 440 Carb F/C
                Snowmobile 2001 Polaris XCF Edge 440 Carb F/C SP
    2000
        Polaris
            500 Widetrak LX Carb L/C
                Snowmobile 2000 Polaris 500 Widetrak LX Carb L/C Euro
            550 Sport Touring Carb F/C
                Snowmobile 2000 Polaris 550 Sport Touring Carb F/C
            550 Supersport Carb F/C
                Snowmobile 2000 Polaris 550 Supersport Carb F/C
            550 Trail Touring Carb F/C
                Snowmobile 2000 Polaris 550 Trail Touring Carb F/C
            Indy Sport 440 Carb F/C
                Snowmobile 2000 Polaris Indy Sport 440 Carb F/C Lite
            XCF Edge 440 Carb F/C
                Snowmobile 2000 Polaris XCF Edge 440 Carb F/C
    1999
        Polaris
            550 Supersport Carb F/C
                Snowmobile 1999 Polaris 550 Supersport Carb F/C
            550 Trail RMK Carb F/C
                Snowmobile 1999 Polaris 550 Trail RMK Carb F/C 136
            XCF 440 Carb F/C
                Snowmobile 1999 Polaris XCF 440 Carb F/C
                Snowmobile 1999 Polaris XCF 440 Carb F/C SP


OEM
3085934

Interior diameter: 41mm
Exterior diameter: 103mm
Thickness: 15mm
Length of wires stator to grommet: 35mm
Length of wires grommet to plug: 465mm
Length of pickup coil's wire to grommet: 85mm

Other specifications:
Number of wires: 11
Number of plugs: 4
Number of pins: 16

Wire to wire resistance:
Alternator: Yellow to Yellow/Red = 0.4ohms +/-20%
Pickup: Yellow to Black = 205ohms +/-20%
Source: Blue/Red to Black = 35ohms +/-20%
Source 2: Green/Red to Red/White = 450ohms +/-20%
