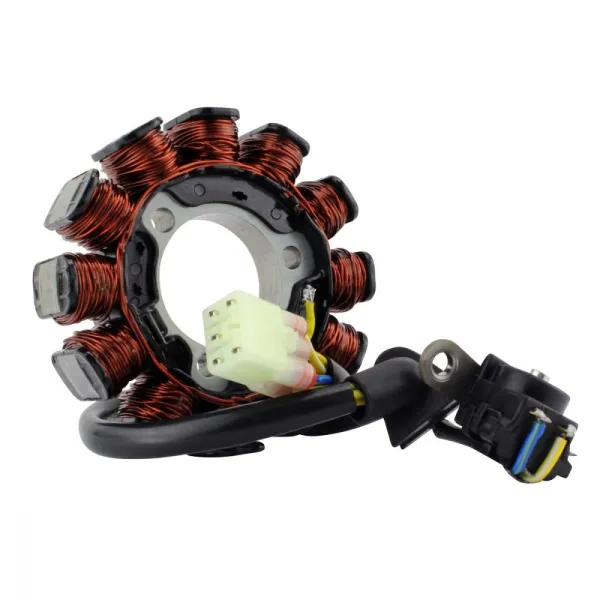

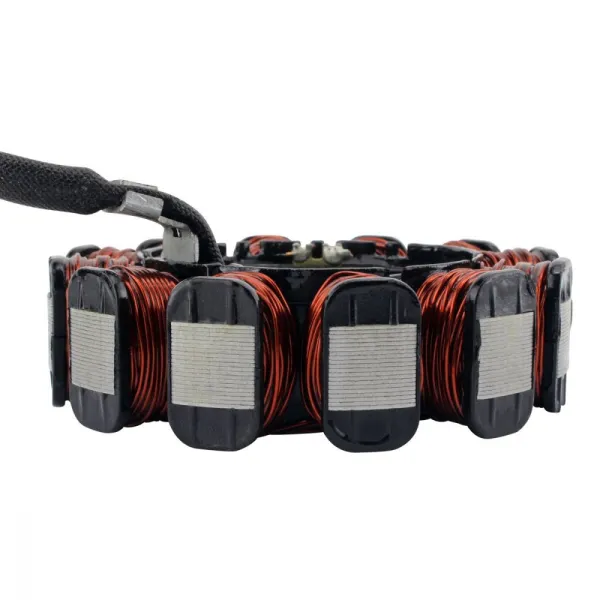

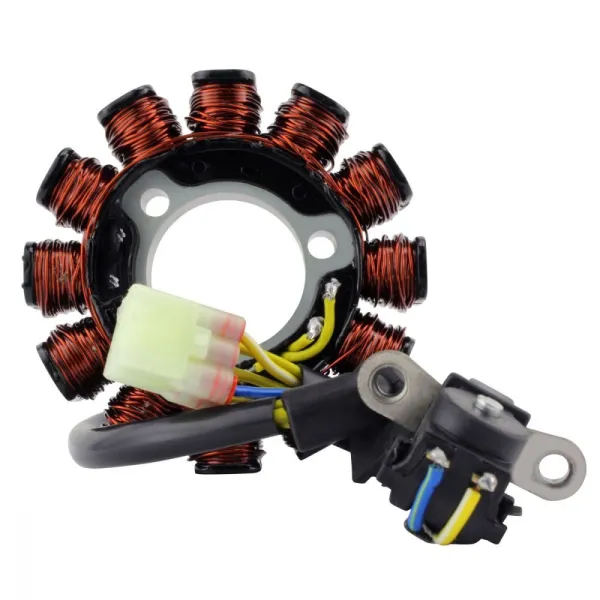

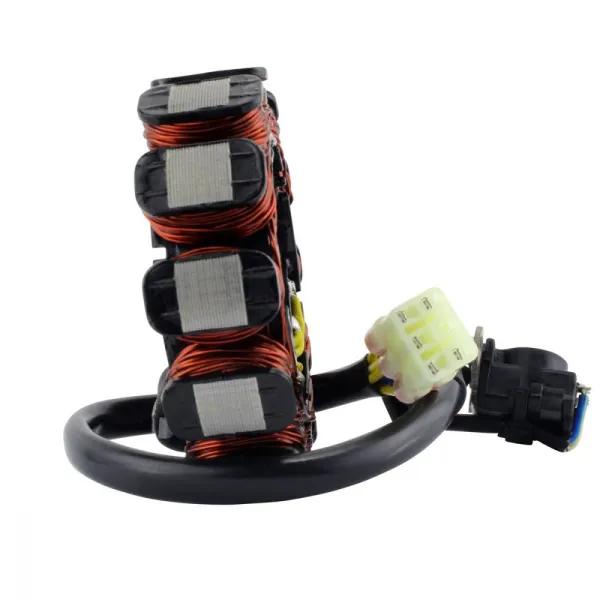

Allumage Stator Alternateur Honda CRF450RX OEM 31120-MKE-A01

2018 Honda CRF 450 RX
2018 Honda CRF 450 R
2017 Honda CRF 450 RX
2017 Honda CRF 450 R

OEM 31120-MKE-A01

Dimensions:
Interior diameter: 35 mm
Exterior diameter: 89 mm
Thickness: 12 mm
Length of wires stator to grommet: 70 mm
Length of wires grommet to plug: 240 mm

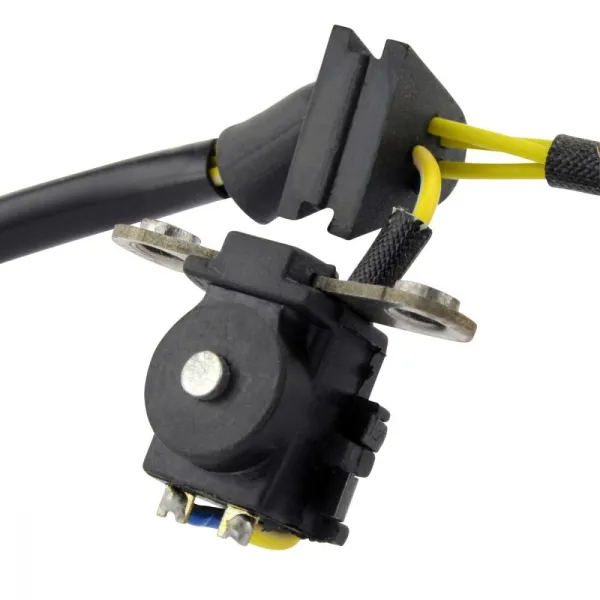

Length of pickup coil's wire to grommet: 40 mm

Other specifications:
Number of wires: 5

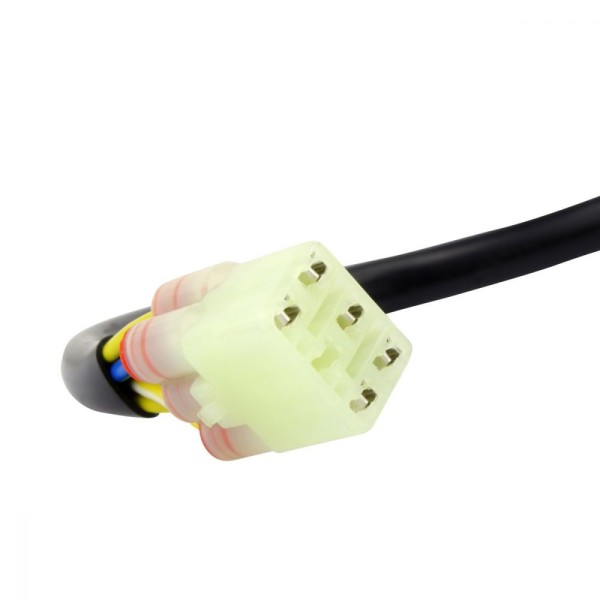

Number of plugs: 1
Number of pins: 5
Number of poles: 12
Wire to wire resistance:
Alternator: Yellow to Yellow = 1.3 ohms +-20%
Alternator: Yellow to ground = O.L
Pickup: Blue/Yellow to White/Yellow = 244 ohms +-20%
