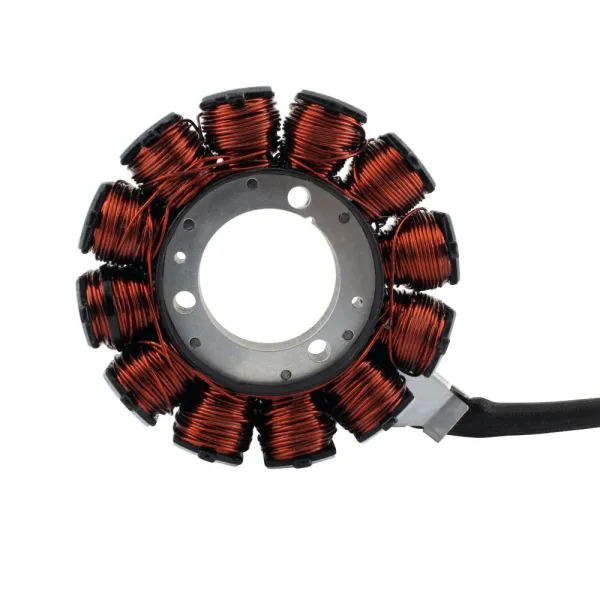

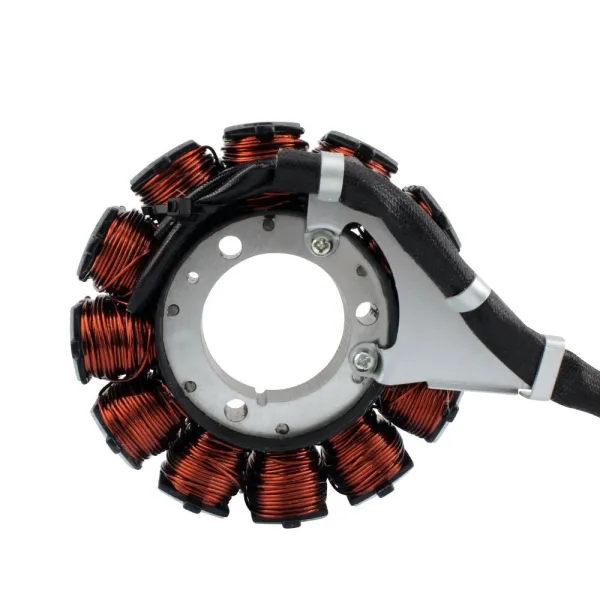

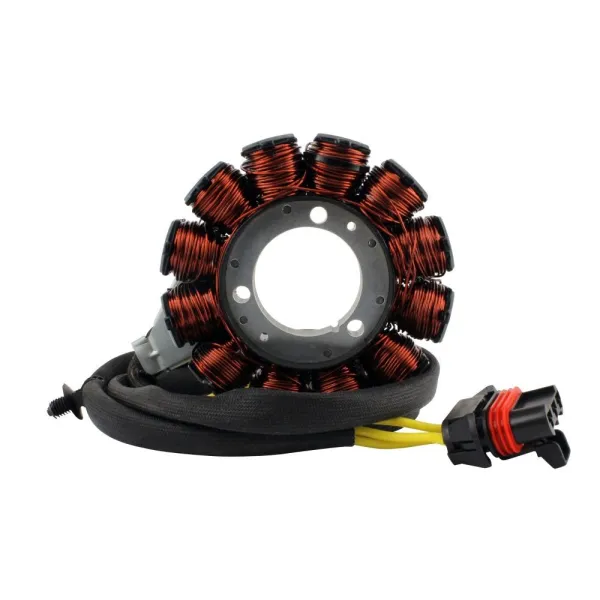

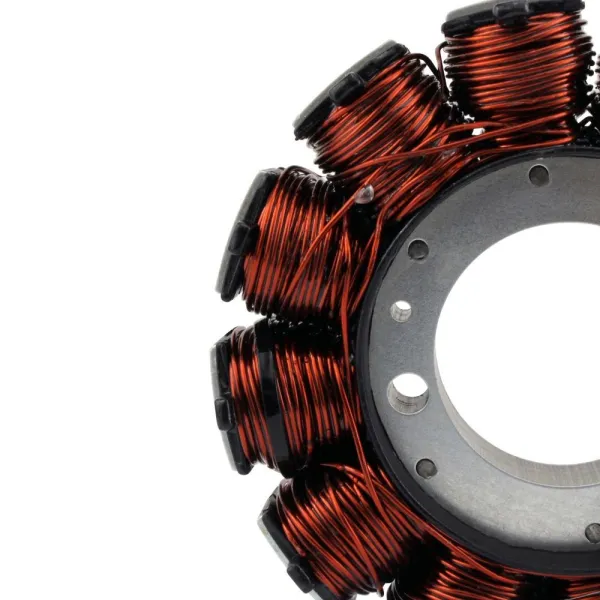

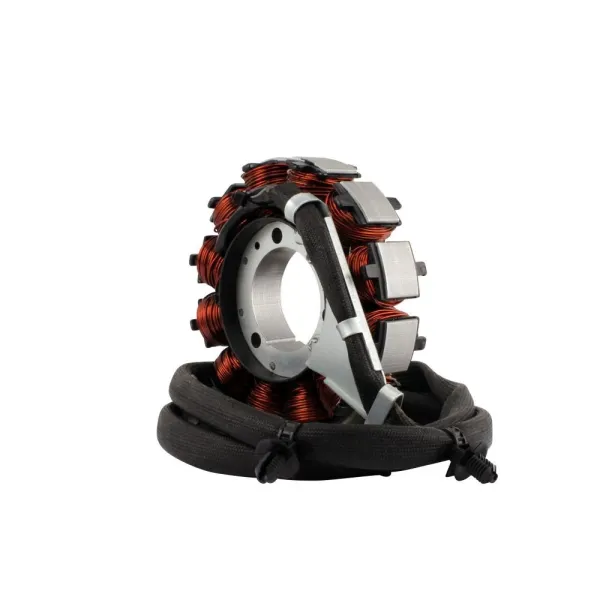

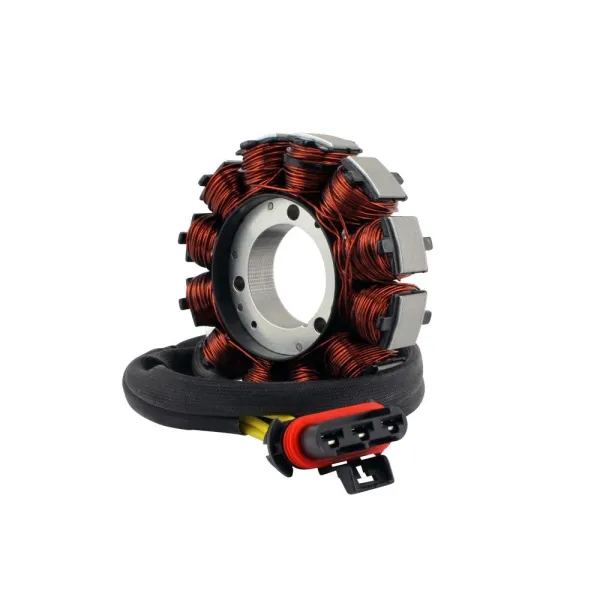

Stator CanAm Maverick 1000RR Turbo Maverick Max 1000RR Turbo OEM 420686363

Stator 850W

2024 Can-Am Maverick Max 1000RR Turbo

2024 Can-Am Maverick 1000RR Turbo

2023 Can-Am Maverick Max 1000RR Turbo

2023 Can-Am Maverick 1000RR Turbo

2022 Can-Am Maverick Max 1000RR Turbo

2022 Can-Am Maverick 1000RR Turbo

2021 Can-Am Maverick Max 1000RR Turbo

2021 Can-Am Maverick 1000RR Turbo

OEM 420686363

Dimensions:

Interior diameter: 42 mm

Exterior diameter: 115 mm

Thickness: 17 mm

Length of wires stator to grommet: 280 mm

Length of wires grommet to plug: 995 mm

Other specifications:

Number of wires: 3

Number of plugs: 1

Number of pins: 3

Number of poles: 12

Wire to wire resistance:

Alternator: Yellow to Yellow = 0.3 ohms +/-20%

Alternator: Yellow to ground = O.L

• Resistant to 200 degrees Celsius
