Kit SPLYT Rotor Stator Régulateurs 900W Polaris Scrambler 850 1000 Hawkeye 325 Sportsman 325 450 570 850 1000 Ace

Kit SPLYT Rotor Stator Régulateurs 900W Polaris Scrambler 850 1000 Hawkeye 325 Sportsman 325 450 570 850 1000 Ace

More details...

649,00 €

CARMS900-106951

Availability : 5-7 Days

3 items in stock

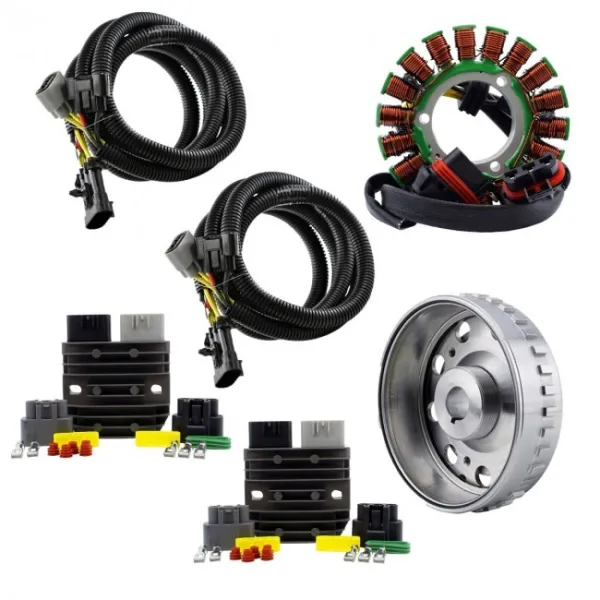

  • This kit includes:
    A Dual output stator
    Two smaller easy-to-mount new SERIES voltage regulators
    Two automotive grade relocation wiring harnesses with OEM-quality heavy-duty connectors for front hood placement
    A Flywheel
    Complete instructions for voltage regulator relocation
    Polaris RZR owners have long been looking for a permanent solution to charging system reliability issues. Polaris has long known about the unreliable charging system on these models, and has attempted a few fixes over the years with no permanent success. This mostly involved attempted voltage regulator improvements, which were a temporary solution on a larger problem. The root of the problem stems from an extremely powerful stator producing 650 watts, paired with a voltage regulator running at maximum capacity, barely able to handle the power of the system and having no breathing room.
    The solution comes from re-engineering the problem at the root, with a new type of stator designed to split the load between dual voltage regulators, both operating in their ideal power range. Both regulators consistently operate with 40% overhead for long life, stability, and reliability.
    RMSTATOR'S DUAL OUTPUT STATOR SYSTEM
    RMSTATOR's Dual Output Stator System works on all RZR 900 & 1000 models, and completely solves charging system reliability issues. It uses the OEM RZR flywheel with a specially designed dual output stator to produce the same 650 watts of power as the original charging system. The dual independent three phase stator windings are each routed through their own high quality wiring harness to separate highly efficient series voltage regulators. The regulators then charge the battery in parallel, sharing the load evenly. You get the same output as your OEM system, with an easy installation that does not require removal of the flywheel. This provides ultimate peace of mind and confidence in your charging system.
    Solve your Polaris RZR charging system issues today, once and for all, with RMSTATOR!

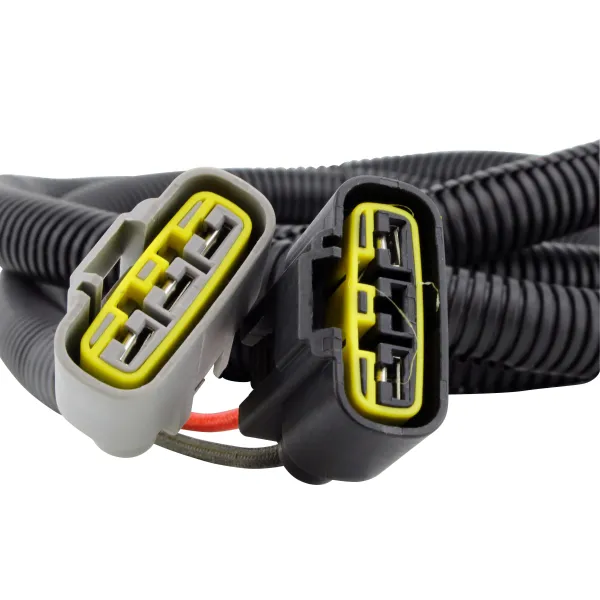

    Automotive grade wiring harness with OEM-quality heavy-duty connectors
    Made with the same Delphi connectors as OEM Polaris parts, our wiring harnesses are manufactured in a factory with controlled quality processes. They use the same Cross-Link braided copper wire as the OEM parts, and resist heat, oil, acid, gas and more with very low electrical resistance.
    Plug-and-Play design
    Our stator uses an OEM-equivalent core for easy, factory-like installation. All connections are sealed, keyed, and locking type for quick and easy installation.
    IMPORTANT NOTICE: This kit includes two wiring harness according to Polaris recal # Z-16-01-C (OEM # 2206620, 2206367,2206473). We strongly suggest you to relocate both of your regulators to make sure they do not wear out prematurely due to mud, dust or rocks.
    All item pictures are accurate, matching exactly what you will receive.
  • 2020 Polaris Scrambler 1000 XP
    2020 Polaris Sportsman 1000 XP
    2019 Polaris ACE 500
    2019 Polaris ACE 570 EFI
    2019 Polaris ACE 900
    2019 Polaris Scrambler 1000 XP
    2019 Polaris Scrambler 1000 XP Euro
    2019 Polaris Scrambler 850
    2019 Polaris Sportsman 1000 Touring Tractor
    2019 Polaris Sportsman 1000 XP
    2019 Polaris Sportsman 1000 XP Tractor
    2019 Polaris Sportsman 450 EFI F/C
    2019 Polaris Sportsman 570 6X6 EFI F/C
    2019 Polaris Sportsman 570 EFI F/C
    2019 Polaris Sportsman 570 EFI UTE F/C
    2019 Polaris Sportsman 570 EPS EFI F/C
    2019 Polaris Sportsman 570 HD EFI F/C
    2019 Polaris Sportsman 570 SP EFI F/C
    2019 Polaris Sportsman 570 SP Touring EFI F/C
    2019 Polaris Sportsman 570 Touring EPS EFI F/C
    2019 Polaris Sportsman 570 X2 EPS EFI F/C
    2019 Polaris Sportsman 570 X2 EPS Tractor EFI F/C
    2019 Polaris Sportsman 850
    2019 Polaris Sportsman 850 High Lifter
    2019 Polaris Sportsman 850 Touring SP
    2018 Polaris ACE 500
    2018 Polaris ACE 570 EFI
    2018 Polaris ACE 900
    2018 Polaris Scrambler 1000 XP
    2018 Polaris Scrambler 850
    2018 Polaris Sportsman 1000 High Lifter
    2018 Polaris Sportsman 1000 Touring
    2018 Polaris Sportsman 1000 Touring Tractor
    2018 Polaris Sportsman 1000 XP
    2018 Polaris Sportsman 1000 XP Tractor
    2018 Polaris Sportsman 450 HO
    2018 Polaris Sportsman 570
    2018 Polaris Sportsman 570 Touring
    2018 Polaris Sportsman 850
    2018 Polaris Sportsman 850 High Lifter
    2018 Polaris Sportsman 850 Touring SP
    2018 Polaris Sportsman X2 570
    2017 Polaris ACE 500
    2017 Polaris ACE 900
    2017 Polaris Farmhand 450
    2017 Polaris Scrambler 1000 XP
    2017 Polaris Scrambler 850
    2017 Polaris Sportsman 1000 High Lifter
    2017 Polaris Sportsman 1000 Touring
    2017 Polaris Sportsman 1000 Touring Tractor
    2017 Polaris Sportsman 1000 XP
    2017 Polaris Sportsman 1000 XP Tractor
    2017 Polaris Sportsman 450 HO
    2017 Polaris Sportsman 570
    2017 Polaris Sportsman 570 ACE
    2017 Polaris Sportsman 570 Touring
    2017 Polaris Sportsman 850
    2017 Polaris Sportsman 850 High Lifter
    2017 Polaris Sportsman 850 Touring SP
    2017 Polaris Sportsman X2 570
    2016 Polaris ACE 325 EFI L/C
    2016 Polaris ACE 900
    2016 Polaris Sportsman 1000 XP
    2016 Polaris Sportsman 1000 XP Tractor
    2016 Polaris Sportsman 450 HO
    2016 Polaris Sportsman 570
    2016 Polaris Sportsman 570 ACE
    2016 Polaris Sportsman 570 Touring
    2016 Polaris Sportsman X2 570
    2015 Polaris Hawkeye 325
    2015 Polaris Sportsman 325 ACE
    2015 Polaris Sportsman 325 ETX
    2015 Polaris Sportsman 570
    2015 Polaris Sportsman 570 ACE
    2015 Polaris Sportsman 570 Touring
    2015 Polaris Sportsman X2 570
    2014 Polaris Sportsman 325 ACE
    2014 Polaris Sportsman 570
    2014 Polaris Sportsman 570 Touring

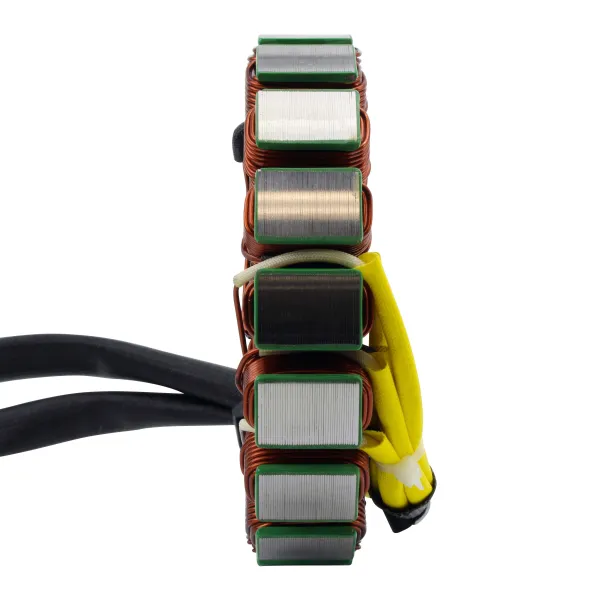

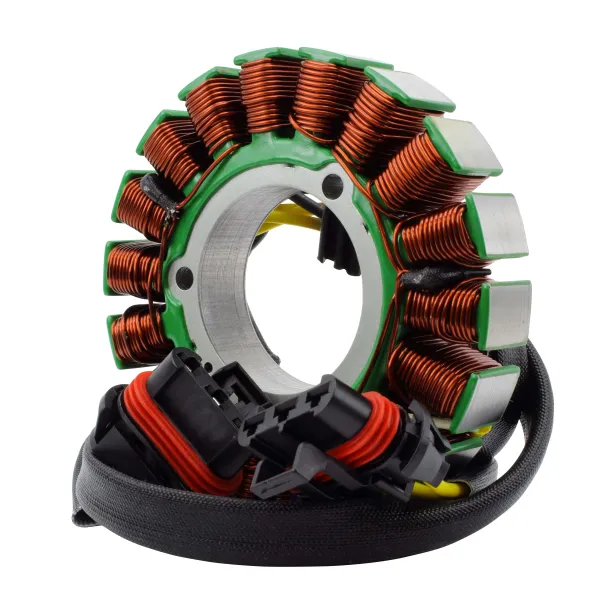

  • Dual Stator
    Dimensions :
    Interior diameter : 53 mm
    Exterior diameter : 125 mm
    Thickness : 26 mm
    Length of wires stator to grommet : 125 mm
    Length of wires grommet to plug : 290 mm and 550 mm
    Other specifications :
    Number of wires : 6
    Number of plugs : 2
    Number of pins : 6
    Number of poles : 18
    Wire to wire resistance :
    Alternator Yellow / Black to Yellow / Black : = 0.5 ohms +-20%
    Alternator to ground = O.L

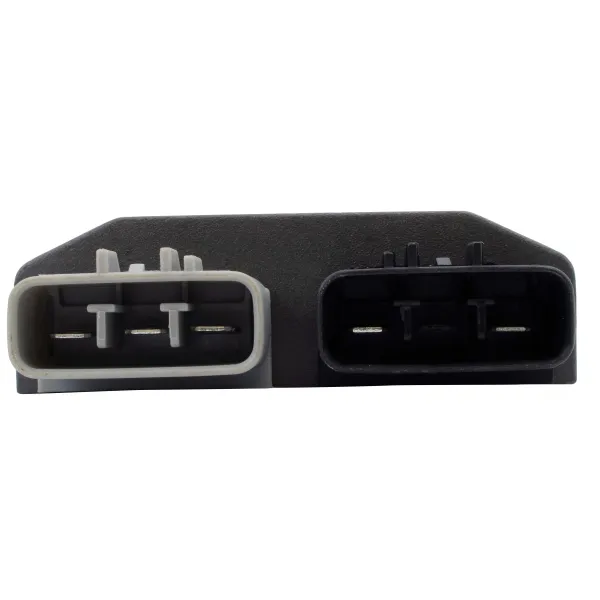

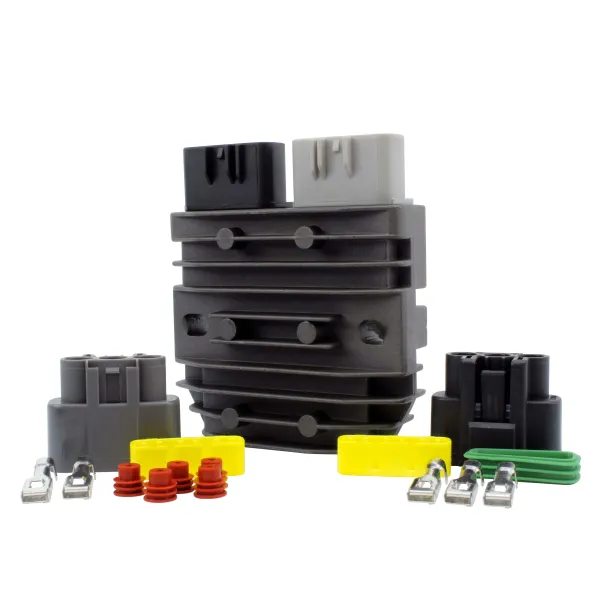

  • Regulator
    Dimensions:
    Width: 84 mm
    Length: 90 mm
    Height: 32 mm
    Fixation holes center to center: 69 mm
    Other specifications:
    Number of plugs: 2
    Number of pins: 5
    Minimum Charging Voltage: 14.5 V +- 0.5 V
    Maximum Charging Current: 50 A / 500 W
    Open Circuit Voltage: < 15 V
    Operation Temperature: -20º to 85º
    Relocation Harness
    Wires length : 3400 mm
    Number of yellow wires : 3
    Number of red wires : 1
    Number of black wires : 1
    Number of plugs : 2

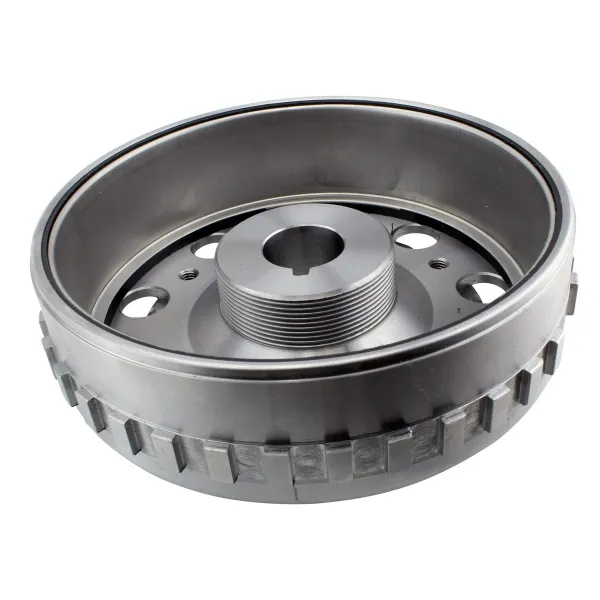

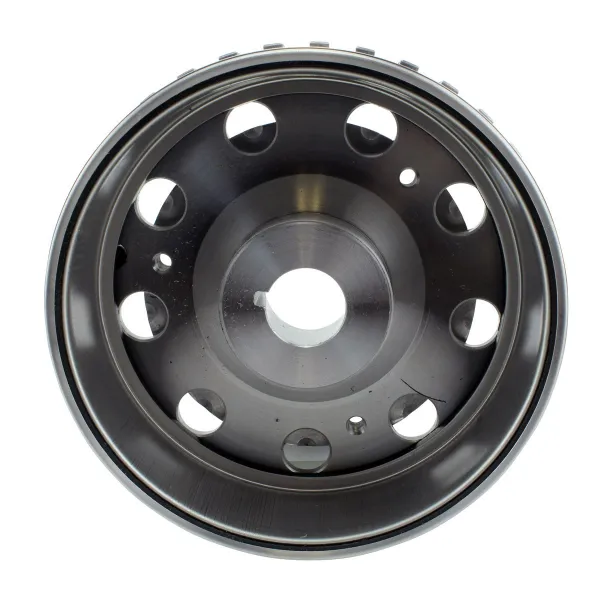

  • Flywheel Dimensions
    Exterior Diameter: 140.6 mm
    Interior Diameter: 127.8 mm
    Interior Diameter Center Housing: 22.4 mm
    Exterior Diameter Center Housing: 50 mm
    Thickness (exterior): 49.3 mm
    Thickness (interior): 38.7 mm

    Diameter of the Shaft largest to the narrowest:

    37.4 mm
    27.8 mm
    22.4 mm
