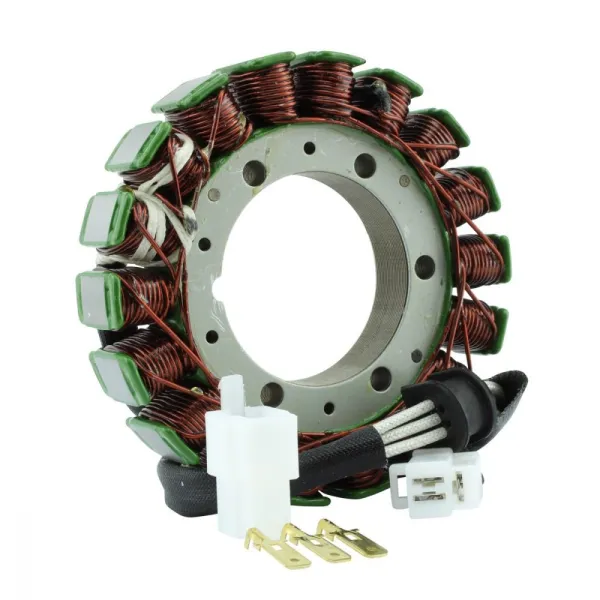

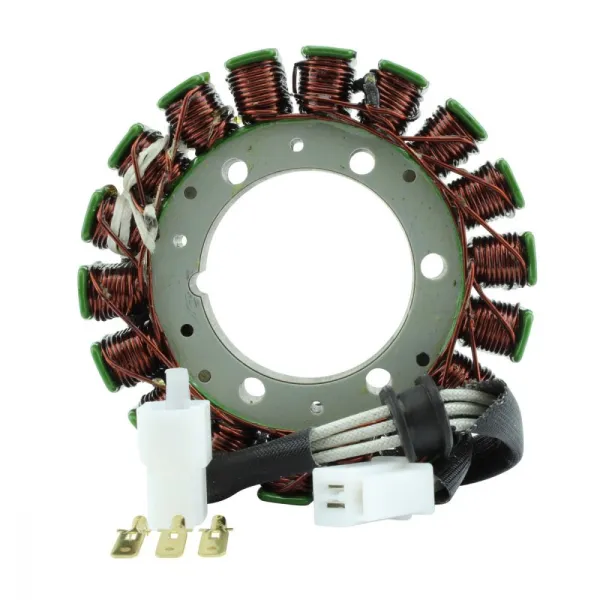

Stator-Ducati-1198-Street Fighter 1099-749-999-MultiStrada 1000

2013 Ducati 848 Street Fighter
2013 Ducati 848 Super Bike
2012 Ducati 848 Street Fighter
2012 Ducati 848 Super Bike
2012 Ducati Street Fighter S 1099
2011 Ducati 848 Super Bike
2011 Ducati Street Fighter S 1099
2011 Ducati Superbike 1198
2010 Ducati 848 Super Bike
2010 Ducati Street Fighter S 1099
2010 Ducati Superbike 1198
2009 Ducati 848 Super Bike
2009 Ducati Street Fighter S 1099
2009 Ducati Superbike 1098 R
2009 Ducati Superbike 1198
2009 Ducati Superbike 1198 S
2008 Ducati 848 Super Bike
2008 Ducati Superbike 1098
2008 Ducati Superbike 1098 R
2008 Ducati Superbike 1098 S
2007 Ducati Superbike 1098
2007 Ducati Superbike 1098 S
2007 Ducati Superbike 749
2007 Ducati Superbike 999
2006 Ducati Multistrada 1000
2006 Ducati Superbike 749
2006 Ducati Superbike 749 R
2006 Ducati Superbike 749 S
2006 Ducati Superbike 999
2006 Ducati Superbike 999 R
2006 Ducati Superbike 999 S
2005 Ducati Multistrada 1000
2005 Ducati Superbike 749
2005 Ducati Superbike 749 R
2005 Ducati Superbike 749 S
2005 Ducati Superbike 999
2005 Ducati Superbike 999 R
2005 Ducati Superbike 999 S
2004 Ducati Multistrada 1000
2004 Ducati Superbike 749
2004 Ducati Superbike 749 R
2004 Ducati Superbike 749 S
2004 Ducati Superbike 999
2004 Ducati Superbike 999 R
2004 Ducati Superbike 999 S
2003 Ducati Multistrada 1000
2003 Ducati Superbike 749
2003 Ducati Superbike 999
2003 Ducati Superbike 999 R
2003 Ducati Superbike 999 S

OEM 26440171A
26420172A

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 19 mm
Length of wires stator to grommet : 600 mm
Length of wires grommet to plug : 800 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18

Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +-20%

There are 2 possible stators for Ducati Multistrada 2003-2006. The other stator possible for this model is CARMS010-104750.
