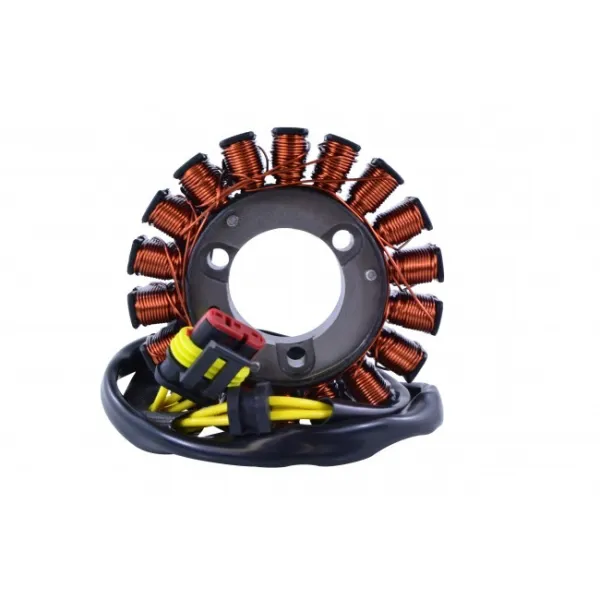

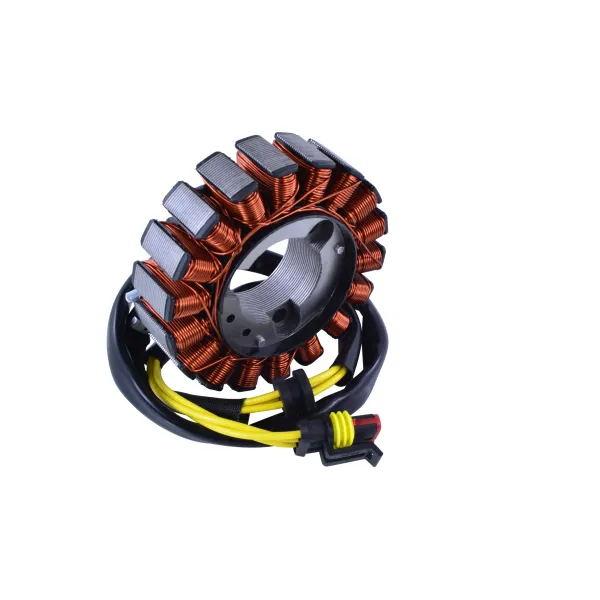

Stator Honda 125 Varadero (04-06)
Stator Honda
XL125V Varadero (2004-2006)
OEM 31120-KPC-D21
Dimensions :
Interior diameter : 35 mm
Exterior diameter : 94.8 mm
Thickness : 21 mm
Length of wires stator to grommet : 70 mm
Length of wires grommet to plug : 600 mm
Length of pickup coil's wire to grommet : 450 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Interior diameter : 35 mm
Exterior diameter : 94.8 mm
Thickness : 21 mm
Length of wires stator to grommet : 70 mm
Length of wires grommet to plug : 600 mm
Length of pickup coil's wire to grommet : 450 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Yellow between Yellow = 0.4 ohms +-20%
Pickup : White to Yellow = 200 ohms +-20%
Alternator : Yellow between Yellow = 0.4 ohms +-20%
Pickup : White to Yellow = 200 ohms +-20%
