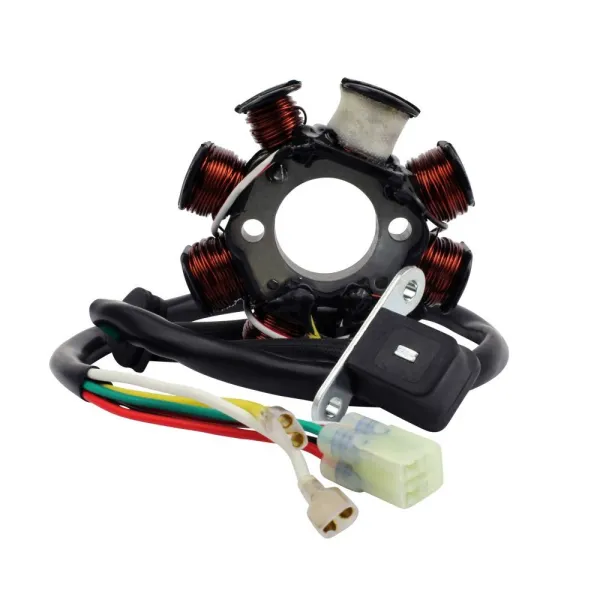

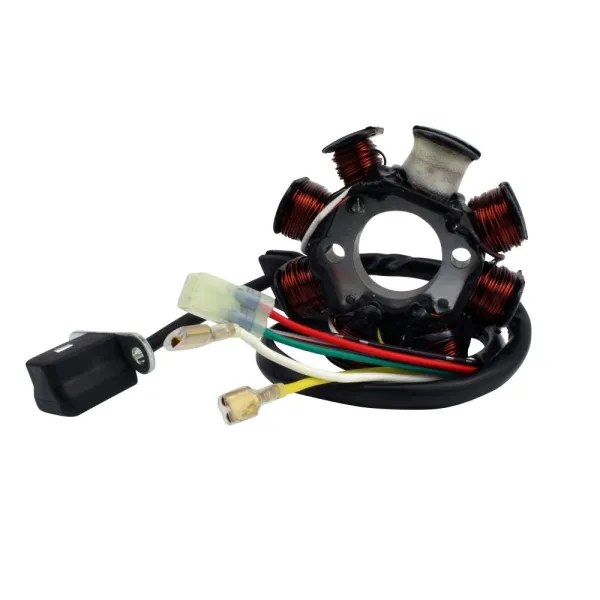

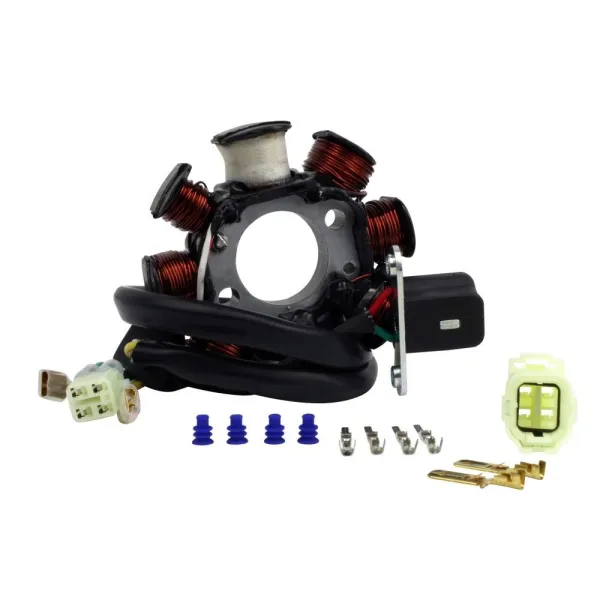

Stator KTM 200 250 300 EXC 200 300 XC 300 MXC 2005-2012 OEM 54839204000

2012 KTM 200 XC-W

2011 KTM 200 XC-W

2010 KTM 200 XC-W

2009 KTM 200 XC-W

2009 KTM 200 XC

2008 KTM 200 XC

2007 KTM 300 XC-W

2007 KTM 300 XC

2006 KTM 300 XC-W

2006 KTM 300 XC

2005 KTM 300 MXC

2005 KTM 300 EXC

2005 KTM 250 EXC-G

2005 KTM 250 EXC-F

2005 KTM 250 EXC Euro

2005 KTM 200 EXC

OEM 54839204000

Dimensions:

Interior diameter: 29 mm

Exterior diameter: 84 mm

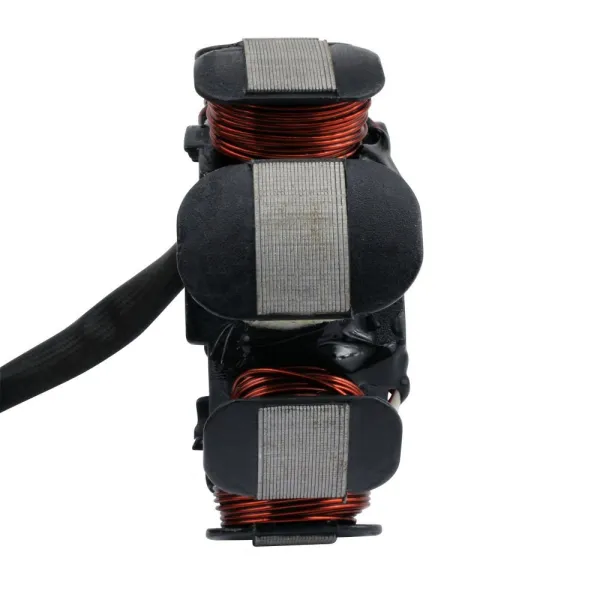

Thickness: 13 mm

Length of wires stator to grommet: 70 mm

Length of wires grommet to plug: 420 mm

Length of pickup coil's wire to grommet: 45 mm

Other specifications:

Number of wires: 6

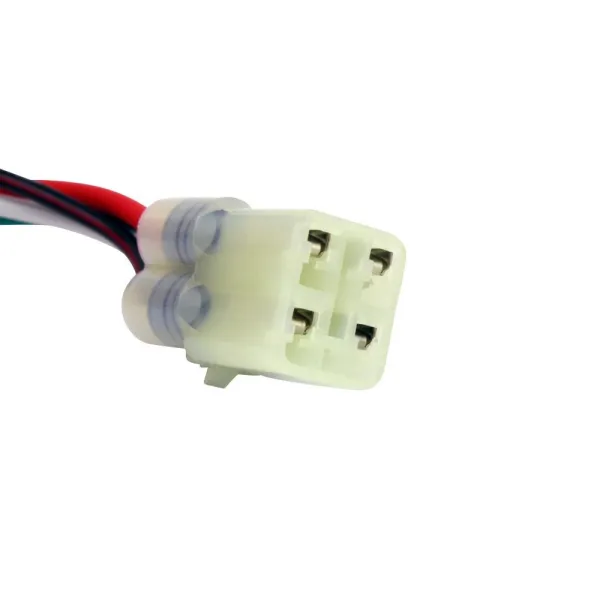

Number of plugs: 2

Number of pins: 6

Number of poles: 8

Wire to wire resistance:

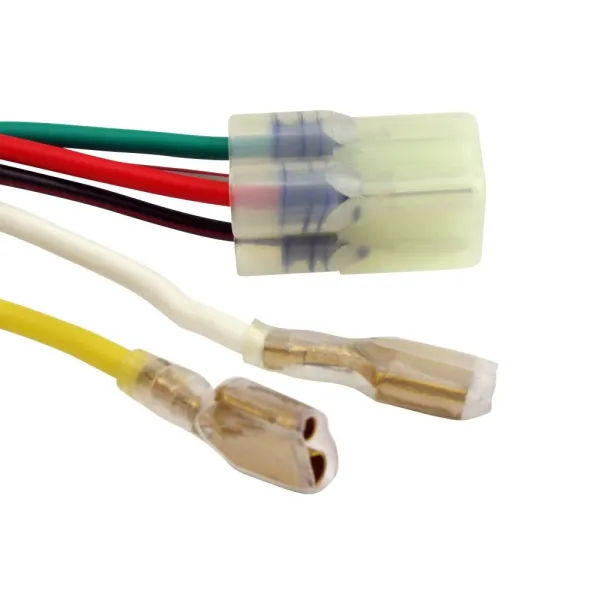

Alternator: White to Yellow = 0.4 ohms +-20%

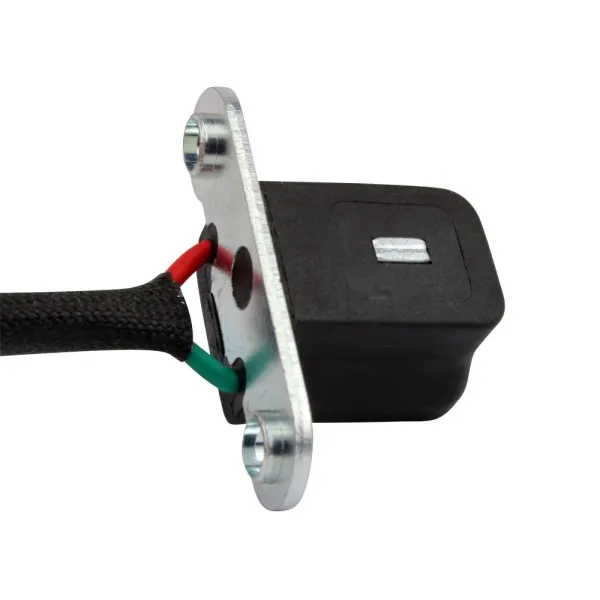

Pickup: Red to Green = 101.7 ohms +-20%

Source: Black/Red to Red/White = 15.1 ohms +-20%

Please note: There are two different stators used on the 2005 KTM 200 EXC and 300 EXC models.

This part will replace the Kokusan 2K-3 stator and OEM 54839204000.

If your machine uses the Kokusan 2K-2 stator or replaces OEM 54839104000 please see our CARM01374.
