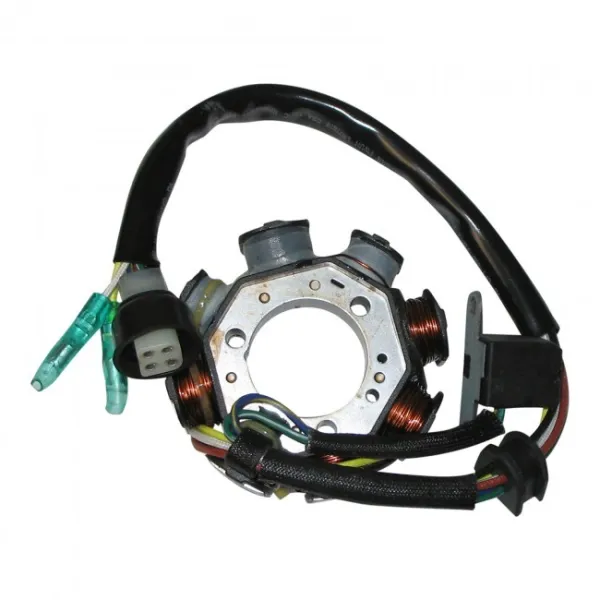

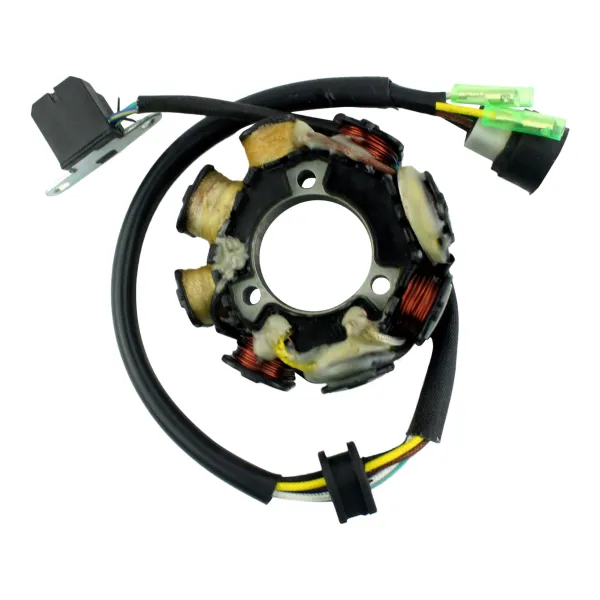

Stator-Yamaha-250 Timberwolf

• • Stator resistant to 200 degrees Celsius

  • 1992 Yamaha YFB 250 Timberwolf
    1993 Yamaha YFB 250 Timberwolf

  •

OEM
4BD-85510-00-00


Dimensions :
Interior diameter : 34mm
Exterior diameter : 83mm
Thickness : 14mm
Length of wires stator to grommet : 90mm
Length of wires grommet to plug : 225mm
Length of pickup coil's wire to grommet : 160mm

Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6

Wire to wire resistance :
Alternator : Yellow to White = 0.4ohms +/-20%
Pickup : Green/White to Blue/Yellow = 275ohms +/-20%
Source : Black to Brown = 475ohms +/-20%
