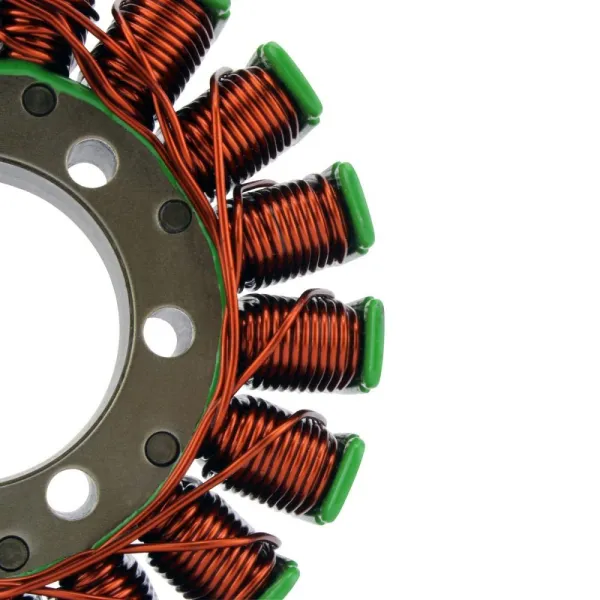

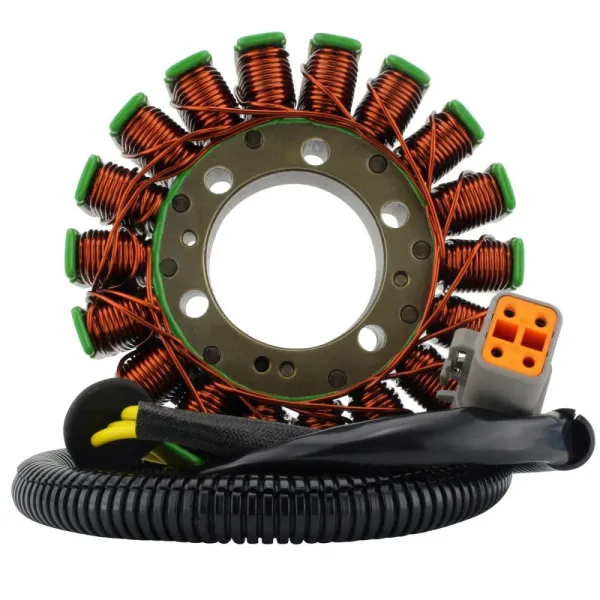

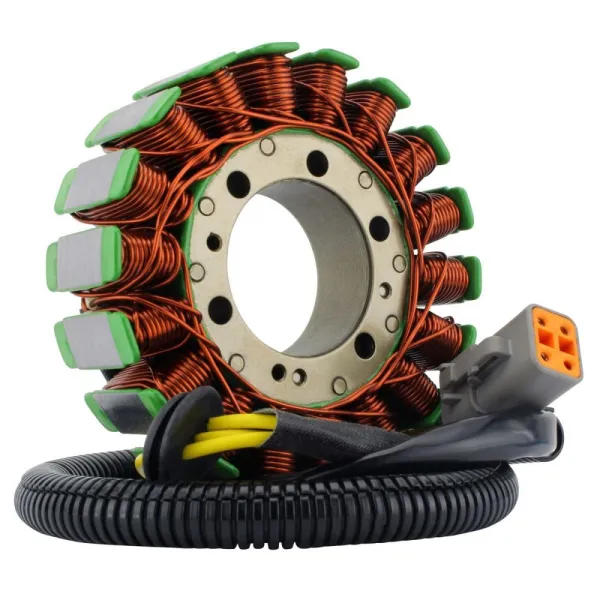

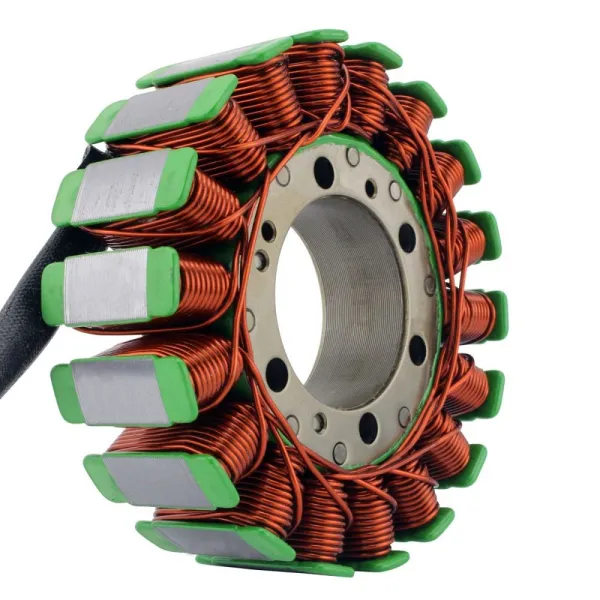

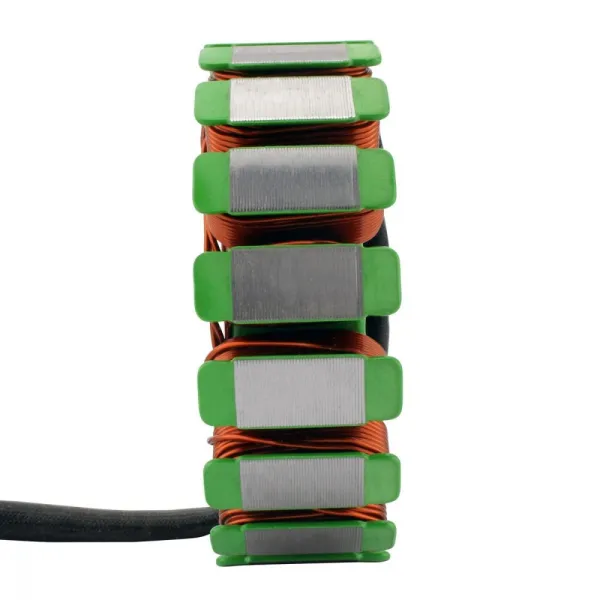

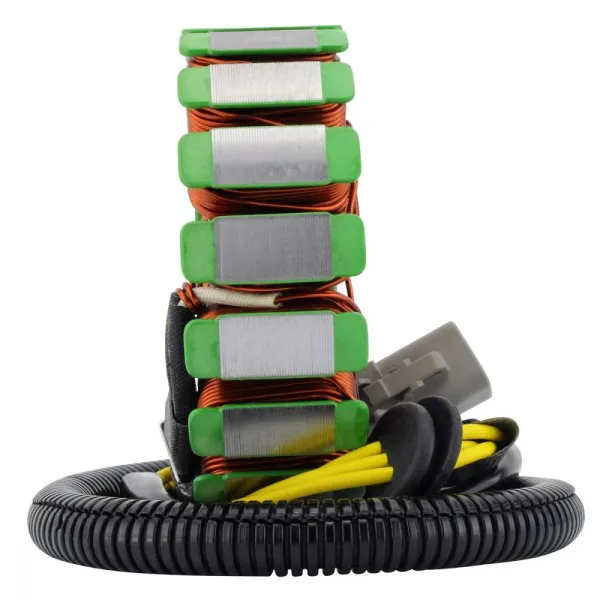

Stator CanAm Outlander Max 400 Outlander 400 Outlander 330 OEM 420296910

2004 Can-am Outlander Max 400
2004 Can-am Outlander 400
2004 Can-am Outlander 330

OEM 420296910

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 107 mm
Thickness: 24 mm
Length of wires stator to grommet: 160 mm
Length of wires grommet to plug: 780 mm

Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.5 ohms +-20%
Alternator: to ground = O.L

• Resistant to 200 degrees Celsius
