Kit 400W Stator MOSFET Regulator Yamaha 350 Bruin Grizzly Wolverine OEM 5KM-81410-00-00 5KM-81410-01-00 5UH-81410-00-00

2014 Yamaha YFM 350 Grizzly

2013 Yamaha YFM 350 Grizzly

2012 Yamaha YFM 350 Grizzly

2011 Yamaha YFM 350 Grizzly IRS

2011 Yamaha YFM 350 Grizzly

2010 Yamaha YFM 350 Grizzly IRS

2010 Yamaha YFM 350 Grizzly

2009 Yamaha YFM 350 Wolverine

2009 Yamaha YFM 350 Grizzly IRS

2009 Yamaha YFM 350 Grizzly

2008 Yamaha YFM 350 Wolverine

2008 Yamaha YFM 350 Grizzly IRS

2008 Yamaha YFM 350 Grizzly

2007 Yamaha YFM 350 Wolverine

2007 Yamaha YFM 350 Grizzly IRS

2007 Yamaha YFM 350 Grizzly

2006 Yamaha YFM 350 Wolverine

2006 Yamaha YFM 350 Bruin

2005 Yamaha YFM 350 Bruin

2004 Yamaha YFM 350 Bruin

OEM 5km-81410-00-00
5km-81410-01-00
5uh-81410-00-00

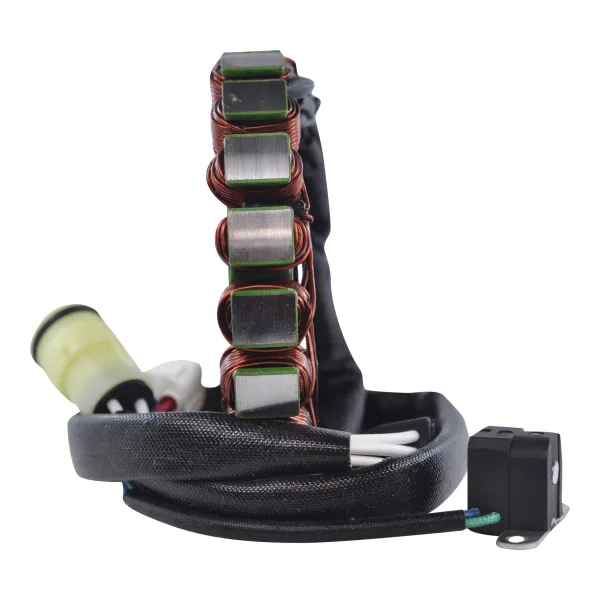

Pick up pulsar coil included
Connector included

Highest grade copper windings, resistant to 200 degrees Celsius

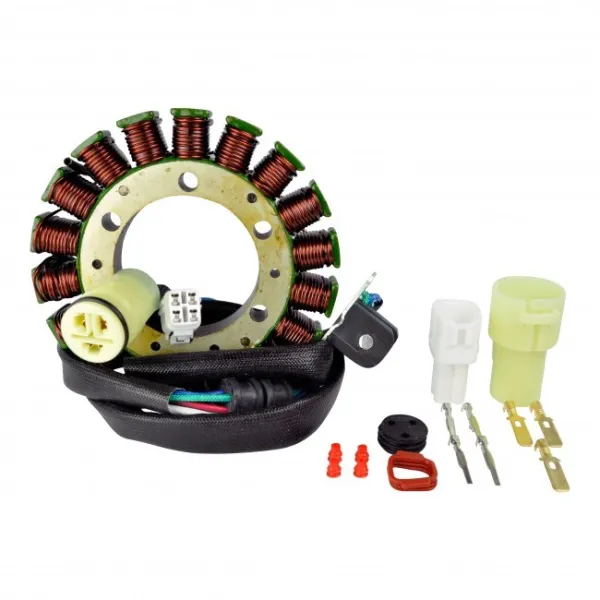

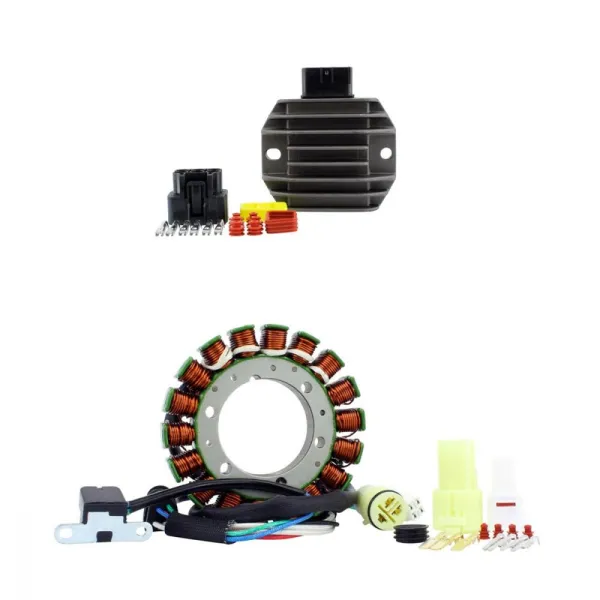

Stator:

Dimensions:

Interior diameter: 54 mm

Exterior diameter: 114.7 mm

Thickness: 13 mm

Length of wires stator to grommet: 300 mm

Length of wires grommet to plug: 470 mm

Length of pickup coil's wire to grommet: 240 mm

Other specifications:

Number of wires: 7

Number of plugs: 2

Number of pins: 7

Number of poles: 18

Wire to wire resistance:

Alternator: White to White = 0.6 ohms +/-20%

Alternator: White to ground = O.L

Pickup: Blue to Green = 501 ohms +/-20%

Position Sensor: Red to Blue/White = 0.3 ohms +/-20%

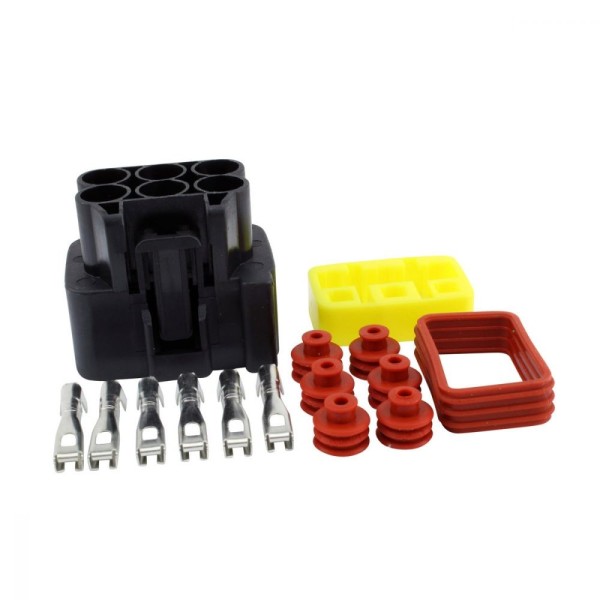

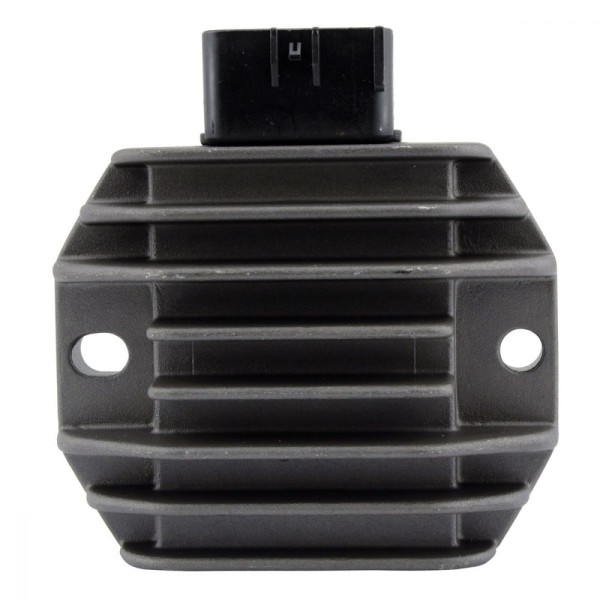

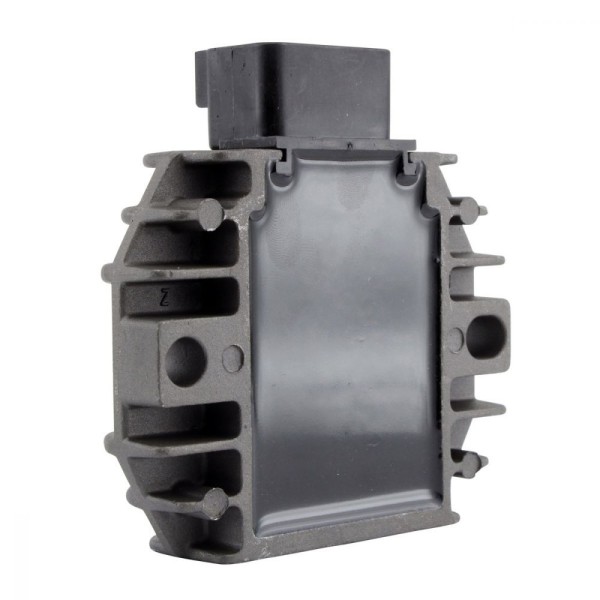

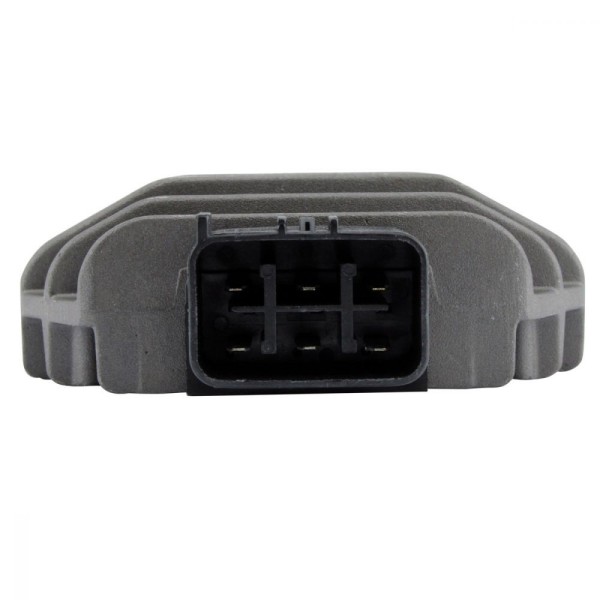

MOSFET Voltage Regulator:

Dimensions:

Width: 25 mm

Length: 79 mm

Height: 83 mm

Fixation holes center to center: 60 mm

Other specifications:

Number of plugs: 1

Number of pins: 6

Minimum Charging Voltage: 14.5 V +/- 0.5 V

Maximum Charging Current: 50 A / 500 W

Open Circuit Voltage: < 15 V

Operation Temperature: -20°C to 85°C
