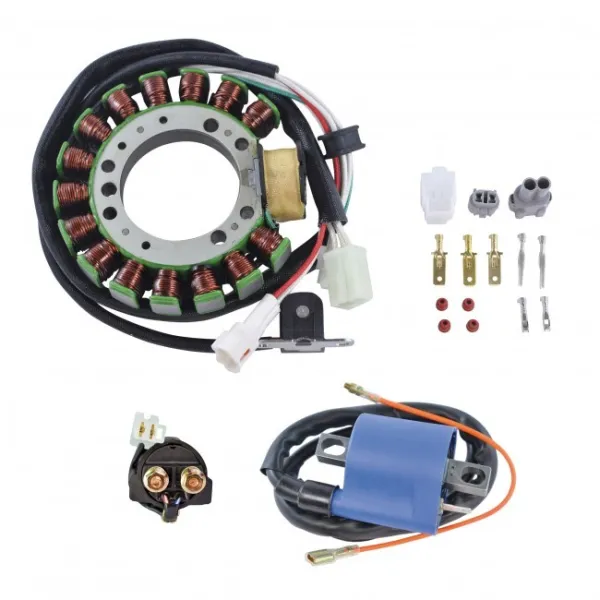

Stator Ignition Coil Relay Solenoid Yamaha 350 Warrior 1996-2001

Stator Resistant to 200 degrees Celsius, Ignition Coil Relay Solenoid

Yamaha 350 Warrior 1996-2001

Dimensions Stator
Dimensions :
Interior diameter : 53mm
Exterior diameter : 115mm
Thickness : 14mm
Length of wires stator to grommet : 150mm
Length of wires grommet to plug : 420mm
Length of pickup coil's wire to grommet : 300mm

Other specifications :
Number of wires : 7
Number of plugs : 3
Number of pins : 7

Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
Pickup : White to Red = 450 ohms +/-20%
Source : Green to Brown = 320 ohms +/-20%

Dimensions Starter Relay Solenoid Switch:
Height : 39 mm
Lenght : 43 mm
Width : 46 mm

Other specifications :
Number of wires : 2
Number of terminals : 2
Number of plugs : 1

External ignition coil
Fixation holes center to center: 55 mm

Stator:
3HN-85510-10-00
4GB-85510-00-00

Starter Relay Solenoid Switch :
3AY-81940-00-00

External Ignition Coil:
3GD-82310-10-00
3KJ-82310-01-00
