Aluminium Mosfet Regulator ByPass Arctic Cat 400 500 Automatic Bearcat 454 OEM 3430-016 3430-037 3430-072

• Regulator Rectifier - Mosfet By Pass

• 1999 Arctic Cat 500 Automatic
  1999 Arctic Cat 400 Automatic
  1998 Arctic Cat Bearcat 454
  1998 Arctic Cat 500 Automatic
  1998 Arctic Cat 400 Automatic
  1997 Arctic Cat Bearcat 454
  1996 Arctic Cat Bearcat 454
  OEM
  3430-016
  3430-037
  3430-072

• It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

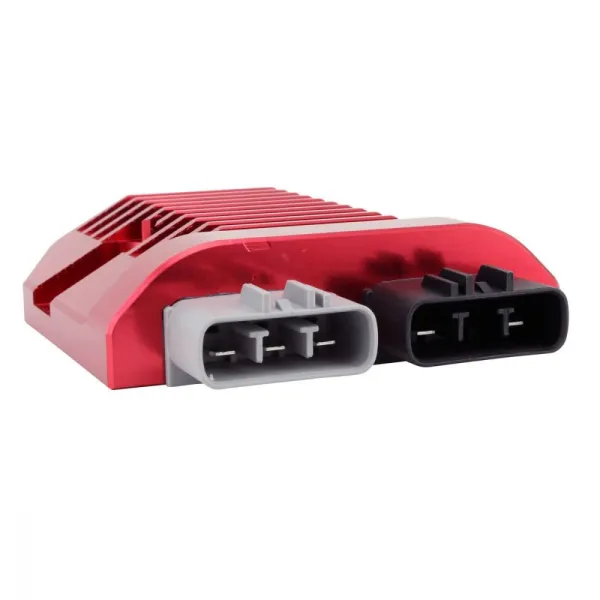

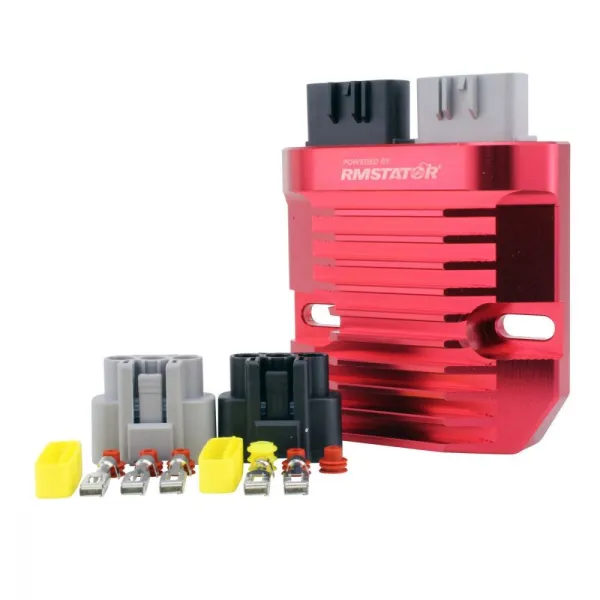

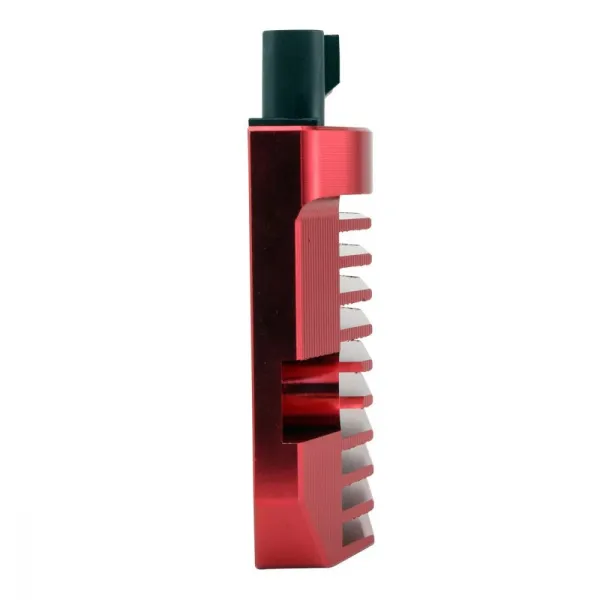

• Red Machined Aluminum Mosfet Regulator :
  Width: 103 mm
  Length: 103 mm
  Height: 28 mm
  Fixation holes center to center: 80 mm
  Other specifications:
  Number of plugs: 2
  Number of pins: 5
  Number of wires: 0
  Minimum Charging Voltage: 14.5 V +/- 0.5 V
  Maximum Charging Current: 50 A / 500 W
  Open Circuit Voltage: < 15 V
  Operation Temperature: -20° C to 85°C

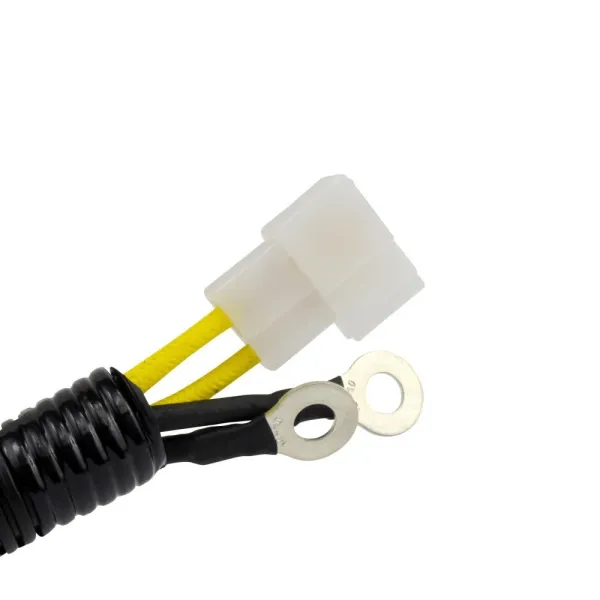

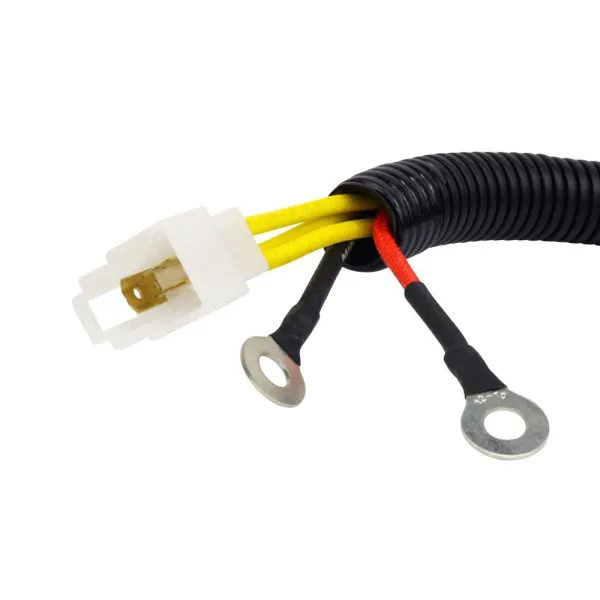

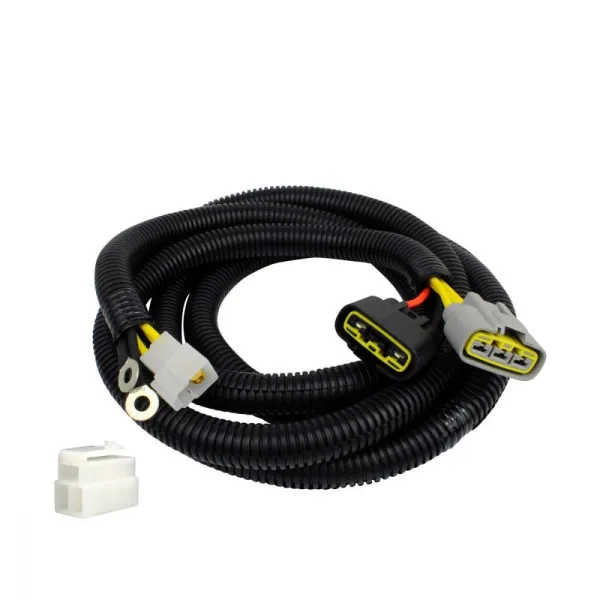

  Voltage Regulator bypass Harness
  Wires length : 1180 mm
  Number of yellow wires : 3
  Number of red wires : 1
  Number of black wires : 1
  Number of plugs : 3

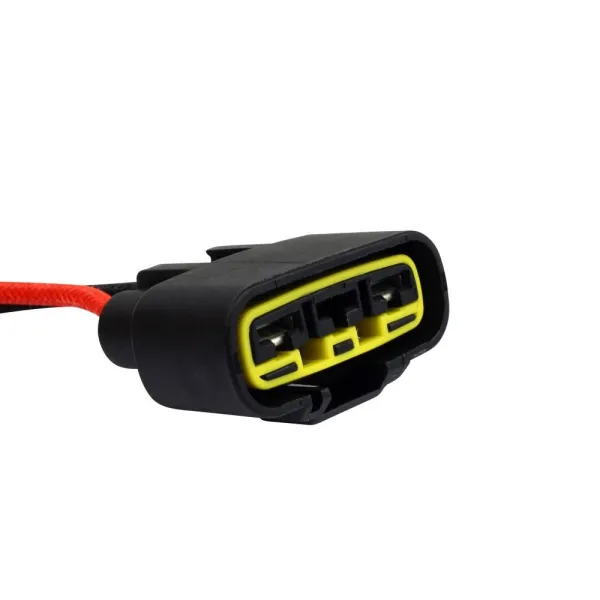

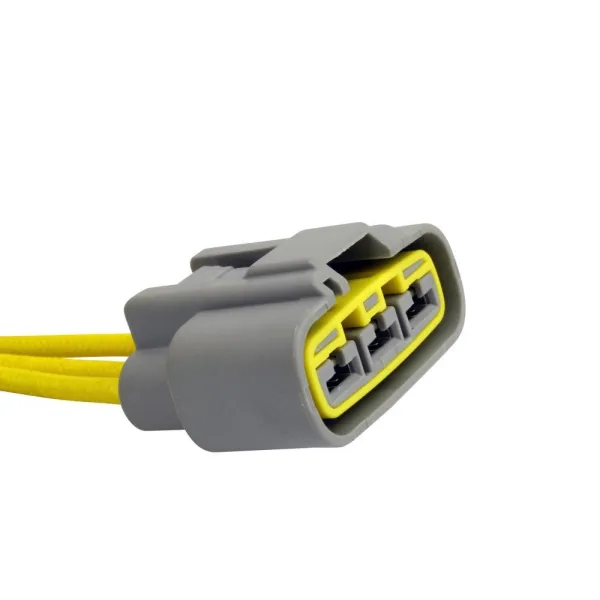

• When using this harness on Arctic Cat equipment you will need to replace your stator connector with the one we include. This will allow it to easily plug into our harness.
• Our new machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.

Our new bypass voltage regulator brings back the renowned Mosfet technology with the machined aluminum case in a new configuration designed to bypass the main wiring harness and connect the voltage regulator directly to the battery. This configuration has demonstrated a major increase in voltage regulator reliability in real life scenarios over the years.
