400 KingQuad

New products

All new products

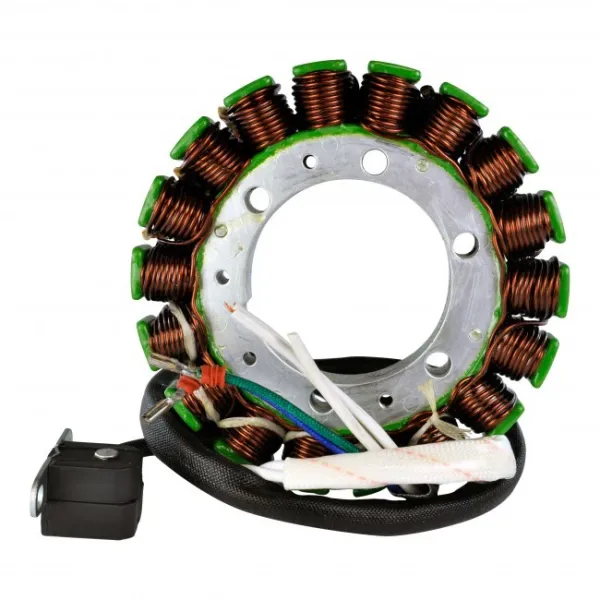

Stator-Suzuki-400 KingQuad

Resistant to 200 degrees Celsius

LTA400 KingQuad-LTF400 KingQuad (08-16)

More details...

143,33 €

CARM01071G

Availability : 5-7 Days

4 items in stock

  • Stator

    2016 Suzuki LTA 400 F KingQuad 4x4 Automatic 400 AS
    2016 Suzuki LTF 400 KingQuad 400FS 4x4 Manual
    2015 Suzuki LTA 400 F KingQuad 4x4 Automatic 400 AS
    2015 Suzuki LTF 400 KingQuad 400FS 4x4 Manual
    2014 Suzuki LTA 400 F KingQuad 4x4 Automatic 400 AS
    2014 Suzuki LTF 400 KingQuad 400FS 4x4 Manual
    2013 Suzuki LTA 400 F KingQuad 4x4 Automatic 400 AS
    2013 Suzuki LTF 400 KingQuad 400FS 4x4 Manual
    2012 Suzuki LTA 400 F KingQuad 4x4 Automatic 400 AS
    2012 Suzuki LTF 400 KingQuad 400FS 4x4 Manual
    2011 Suzuki LTA 400 F KingQuad 4x4 Automatic 400 AS
    2011 Suzuki LTF 400 KingQuad 400FS 4x4 Manual
    2010 Suzuki LTA 400 F KingQuad 4x4 Automatic 400 AS
    2010 Suzuki LTF 400 KingQuad 400FS 4x4 Manual
    2009 Suzuki LTA 400 F KingQuad 4x4 Automatic 400 AS
    2009 Suzuki LTA 400 KingQuad Automatic
    2009 Suzuki LTF 400 KingQuad 400FS 4x4 Manual
    2008 Suzuki LTA 400 F KingQuad 4x4 Automatic 400 AS
    2008 Suzuki LTA 400 KingQuad Automatic
    2008 Suzuki LTF 400 KingQuad 400FS 4x4 Manual

    OEM
    32101-27H00
    32101-27H10




    Dimensions:
    Interior diameter: 53mm
    Exterior diameter: 118mm
    Thickness: 15mm
    Length of wires stator to grommet: 112mm
    Length of wires grommet to plug: 380mm
    Length of pickup coil's wire to grommet: 50mm

    Other specifications:
    Number of wires: 5
    Number of plugs: 2
    Number of pins: 5

    Wire to wire resistance:
    Alternator: Black between each Black = 0.4ohms +/-20%
    Pickup: Blue to Green = 196ohms =+/-20%

  • Resistant to 200 degrees Celsius
