€471.00 Tax included

Highest grade copper windings, resistant to 200 degrees Celsius

Kit Stator Ignition Coil CDI Unit Regulator Rectifier Yamaha 400 Kodiak 2000-2001

Reference
CARM23012
7-8 Days (1 Item)

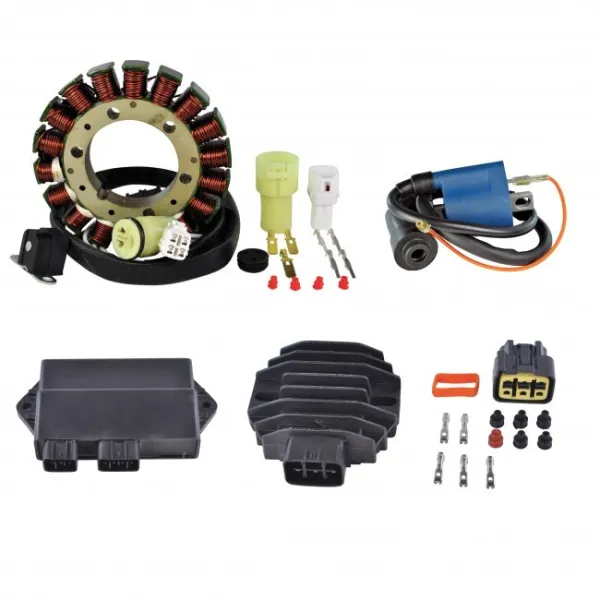

  • Kit Stator Ignition Coil CDI Unit Regulator Rectifier
  • Yamaha 400 Kodiak 2000-2001

  • OEM

  • Stator
    5GH-81410-00-00

    Voltage regulator
    5GT-81960-00-00

    High performance CDI Box
    5GH-85540-10-00

    External ignition coil
    3KJ-82310-10-00

  • Highest grade copper windings, resistant to 200 degrees Celsius

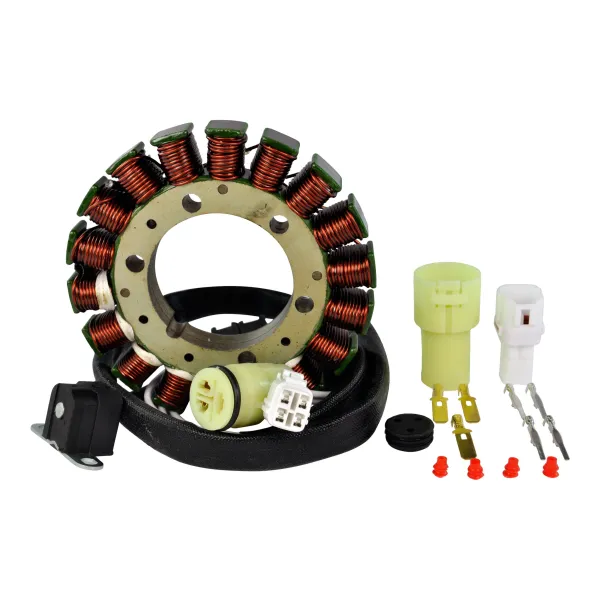

  • Stator
     Interior diameter : 53mm
    Exterior diameter : 115mm
    Thickness : 16mm
    Length of wires stator to grommet : 160mm
    Length of wires grommet to plug : 460mm
    Length of pickup coil's wire to grommet : 110mm

    Other specifications :
    Number of wires : 7
    Number of plugs : 2
    Number of pins : 7

    Wire to wire resistance :
    Alternator : White between each White = 0.4ohms +/-20%
    Pickup : Green to Blue = 440 ohms +/-20%
    Source : Red to Blue/White = 0.2ohms +/-20%

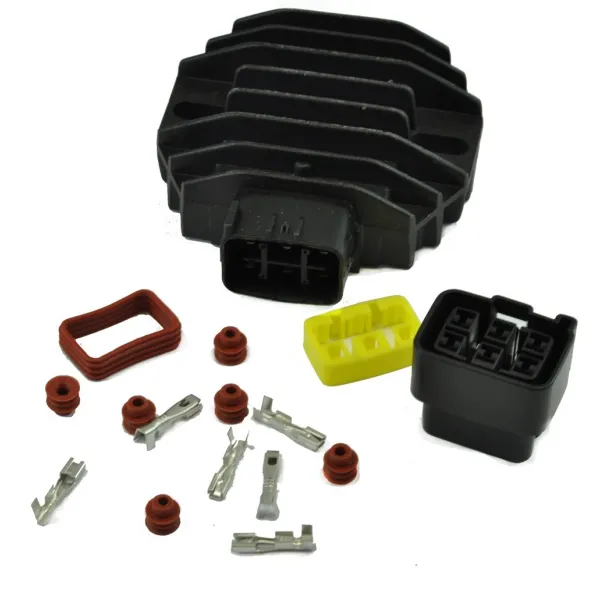

    Voltage Regulator Rectifier
    Dimensions:
    Height: 84 mm
    Length: 79 mm
    Width: 25 mm

    Other specifications:
    Number of plugs: 1
    Number of pins : 6
    Bracket center to center 60 mm

    High performance CDI Box
    Dimensions:
    Height : 27 mm
    Length : 110 mm
    Width : 78 mm
    Distance between fixations holes : 126 mm

    Other specifications:
    Number of plugs : 2
    Number of pins : 10

    External ignition coil
    Distance between fixation holes: 55 mm
