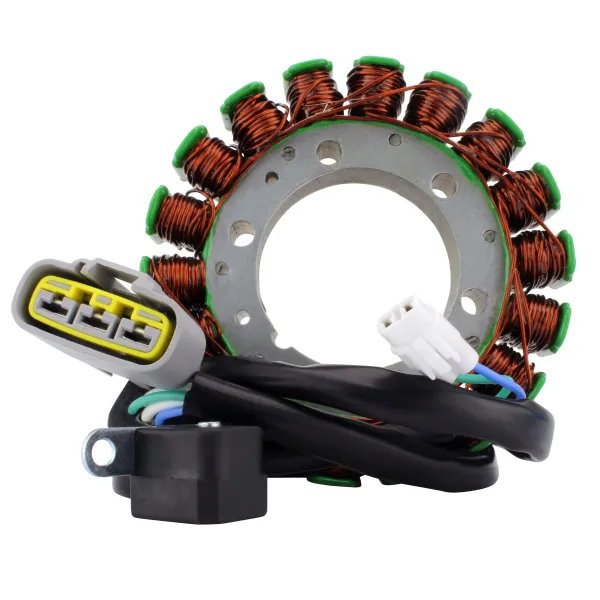

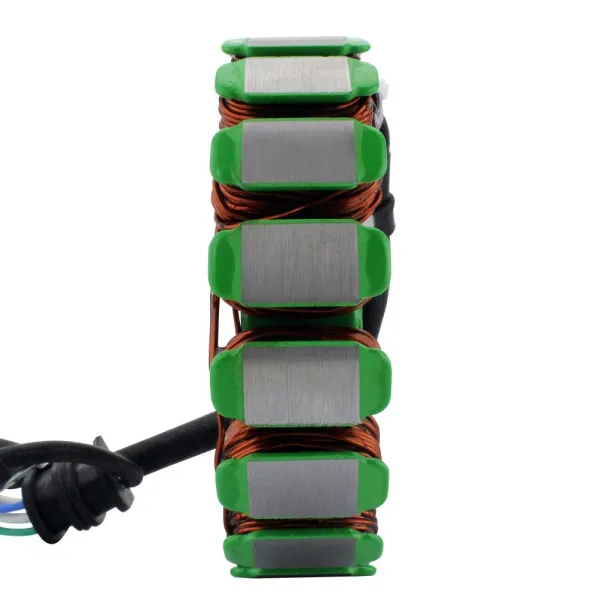

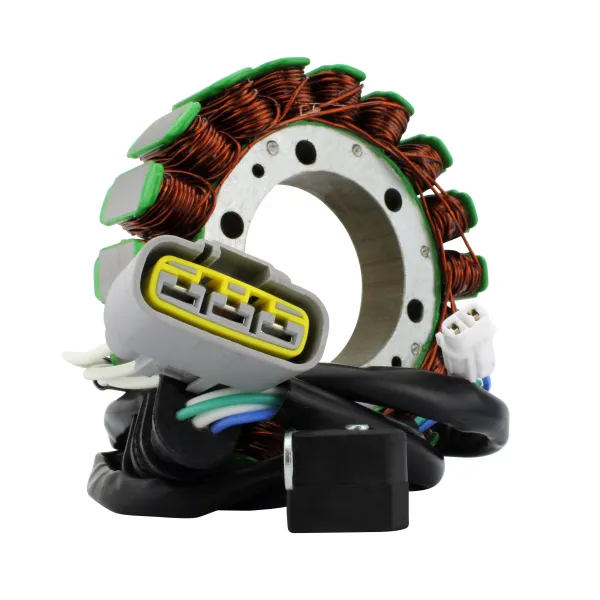

Stator Yamaha YFM 450 Kodiak OEM BB5-81410-00-00

Stator

2018-2024 Yamaha YFM 450 Kodiak

OEM BB5-81410-00-00

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 115 mm
Thickness: 19 mm
Length of wires stator to grommet: 125 mm
Length of wires grommet to plug #1: 395 mm
Length of wires grommet to plug #2: 560 mm
Length of pickup coil's wire to grommet: 55 mm
Other specifications:
Number of wires: 5

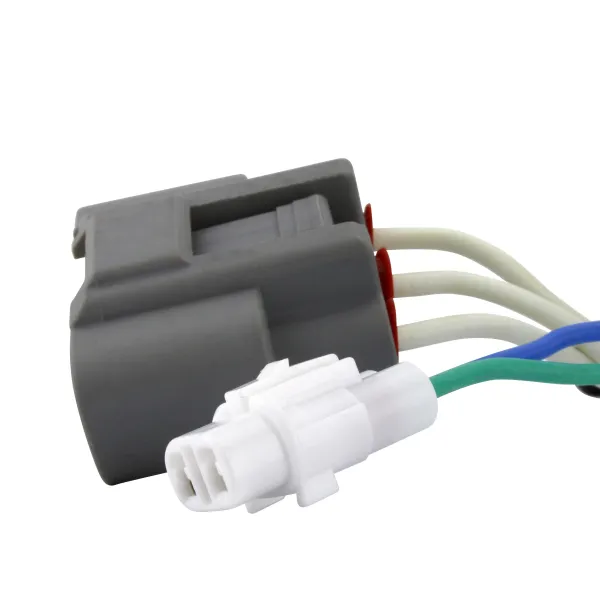

Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: White to White = 0.5 ohms +-20%
Pickup: Grey to Black = 507 ohms +-20%
