Regulator CanAm Defender HD5 HD8 HD10 Outlander 450 500 570 Traxter HD5 HD8 OEM 278002021 515177000 515177325 710005569

Runs much cooler than the Shunt and MOSFET voltage regulator rectifier.
Power only flows through the electrical components when the battery is charging.
Allows the stator to have lower current flowing when not used, extending its lifetime.
The regulator is easier to mount because it’s smaller than the OEM one.

With enhanced technology design
This product is an advanced technology that lowers operating temperatures for extended longevity and better performance than the OEM part.

THE SERIES VOLTAGE REGULATION TECHNOLOGY
RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators. A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely. This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.
In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
The quality exceeds the OEM equipment
Improved heat sink and charging capabilities
Higher grade of electric components
All shipped products are tested

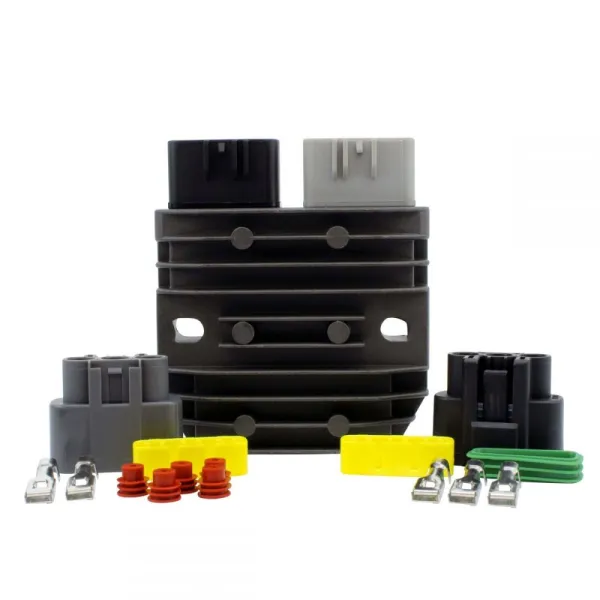

We even include the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

Can-am Defender HD5/HD8/HD10 2017-2020
Can-am Outlander 450/570 2015-2020
Can-am Outlander 500 2015
Can-am Spyder Roadster 990 2008-2012

OEM 278002021 515177000 515177325 710005569

Dimensions:
Width: 84 mm
Length: 90 mm
Height: 32 mm
Fixation holes center to center: 69 mm

Other specifications:

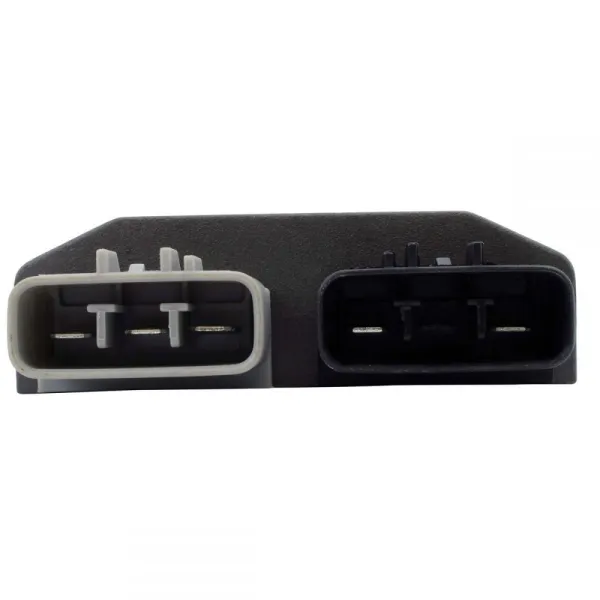

Number of plugs: 2
Number of pins: 5
