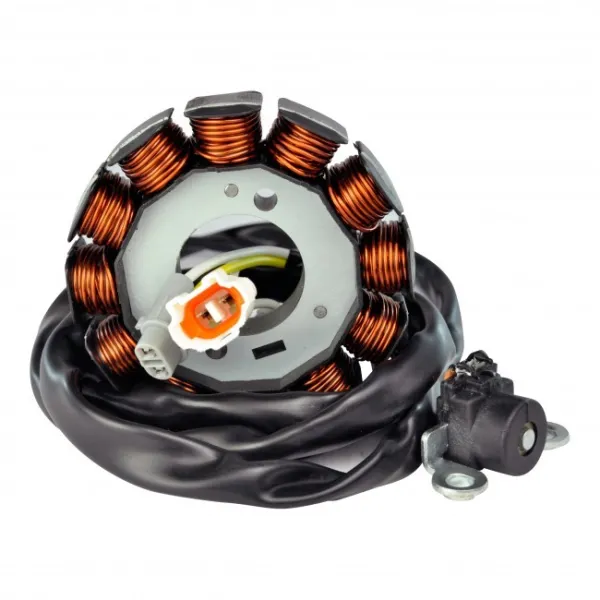

Stator-Yamaha-YFZ450

Stator - Highest grade copper windings, resistant to 200 degrees Celsius

• 2004 Yamaha YFZ 450
  2005 Yamaha YFZ 450
  2006 Yamaha YFZ 450
  2007 Yamaha YFZ 450
  2009 Yamaha YFZ 450
  2012 Yamaha YFZ 450
  2013 Yamaha YFZ 450

  2004 Yamaha YFZ 450 Limited Edition

  2005 Yamaha YFZ 450 Special Edition
  2006 Yamaha YFZ 450 Special Edition
  2007 Yamaha YFZ 450 Special Edition
  2008 Yamaha YFZ 450 Special Edition

  2007 Yamaha YFZ 450 Bill Ballance Edition

  2007 Yamaha YFZ 450 Special Edition II
  2008 Yamaha YFZ 450 Special Edition II

  2008 Yamaha YFZ 450 X





  OEM 5tg-81410-01-00
  5tg-81410-00-00
  5tg-81410-02-00
  5TG-81410-10-00

• Dimensions:
  Interior diameter: 30mm
  Exterior diameter: 85mm
  Thickness: 10mm
  Length of wires stator to grommet: 180mm
  Length of wires grommet to plug: 700mm
  Length of pickup coil's wire to grommet: 90mm
  Other specifications:
  Number of wires: 4
  Number of plugs: 2
  Number of pins: 4
  Wire to wire resistance:
  Alternator: White to Yellow = 0.4ohms +/-20%
  Pickup: White to Red = 275ohms =+/-20%
