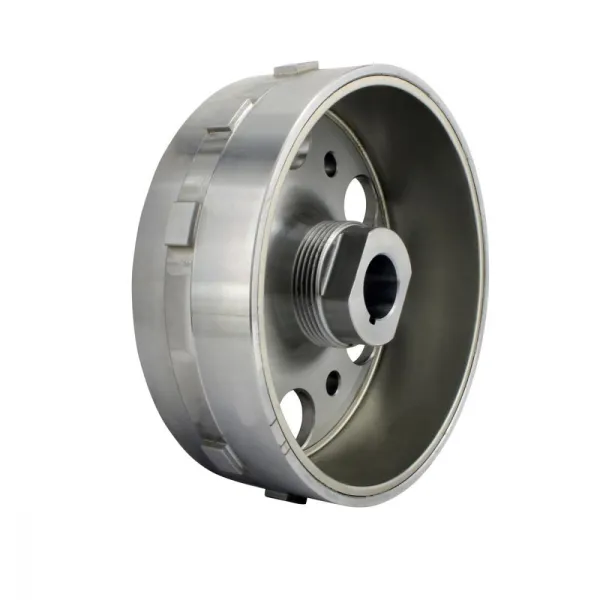

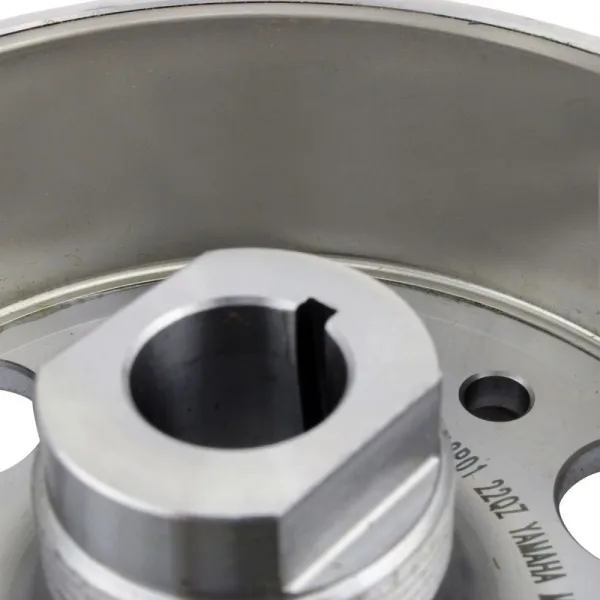

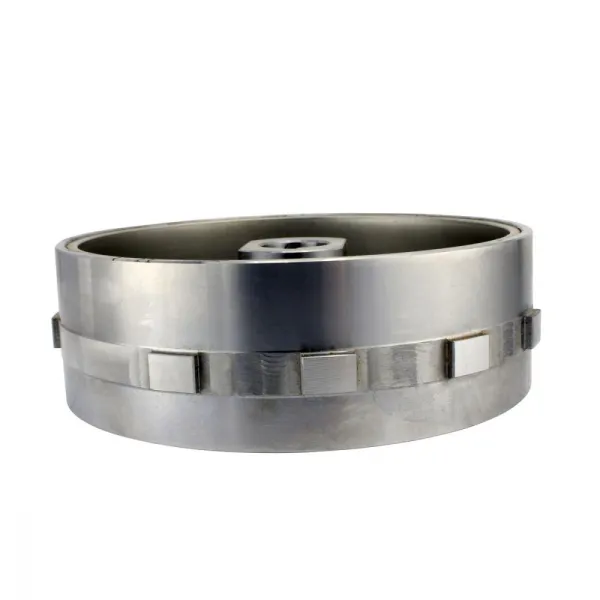

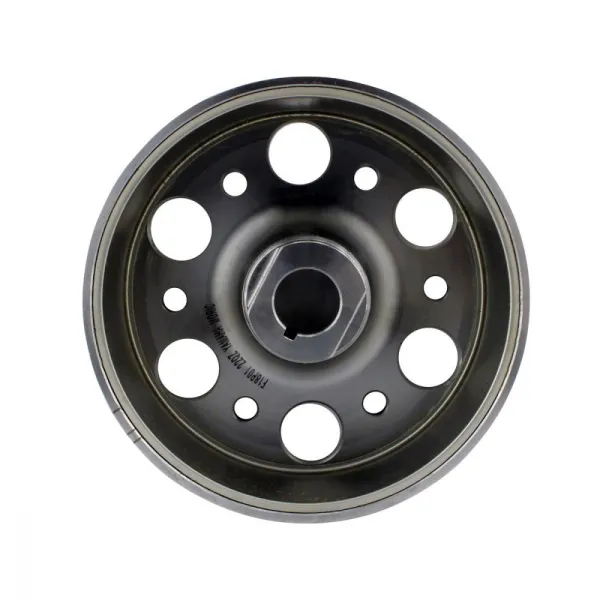

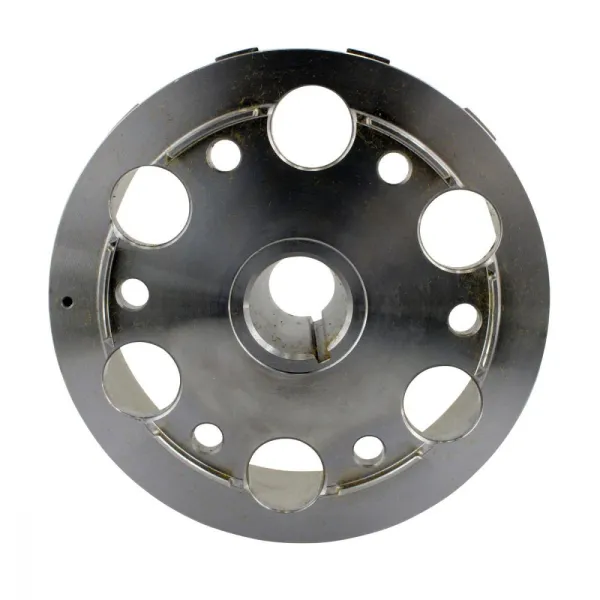

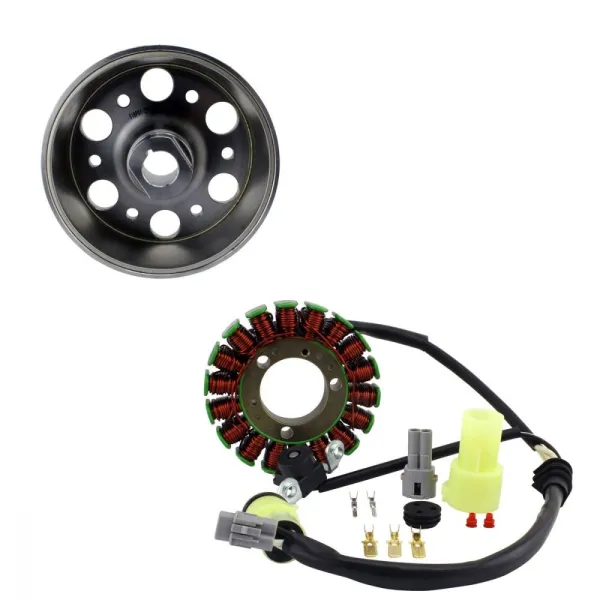

Stator Rotor 300W Yamaha YFZ450X YFZ450R OEM 18P-81410-00-00 18P-81450-00-00 18P-81450-01-00

2010-2011 Yamaha YFZ 450 X

2009-2024 Yamaha YFZ 450 R

OEM 18P-81450-00-00

18P-81450-01-00

18P-81410-00-00

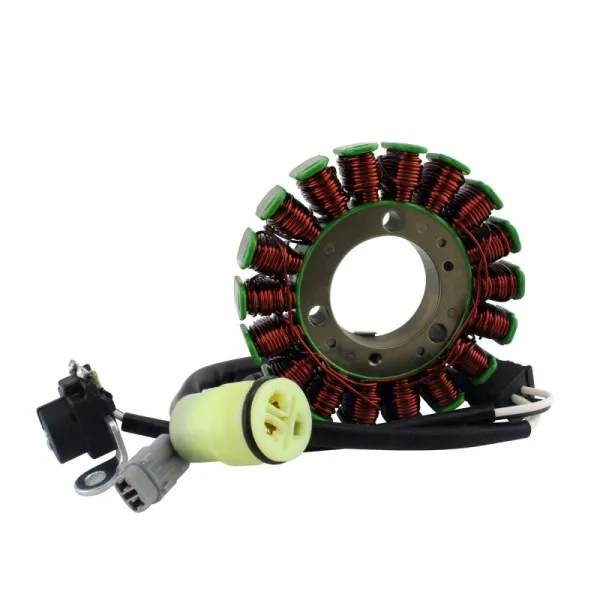

Stator Dimensions:
Interior diameter: 37 mm
Exterior diameter: 97 mm
Thickness: 14 mm
Length of wires stator to grommet: 160 mm
Length of wires grommet to plug: 180 mm

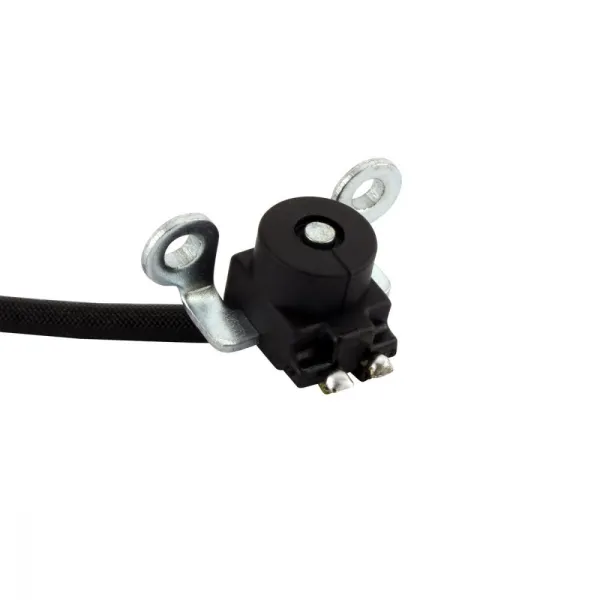

Length of pickup coil's wire to grommet: 180 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: White to White = 0.2 ohms +-20%
Alternator: White to ground = O.L
Pickup: White to Black = 260 ohms +-20%
