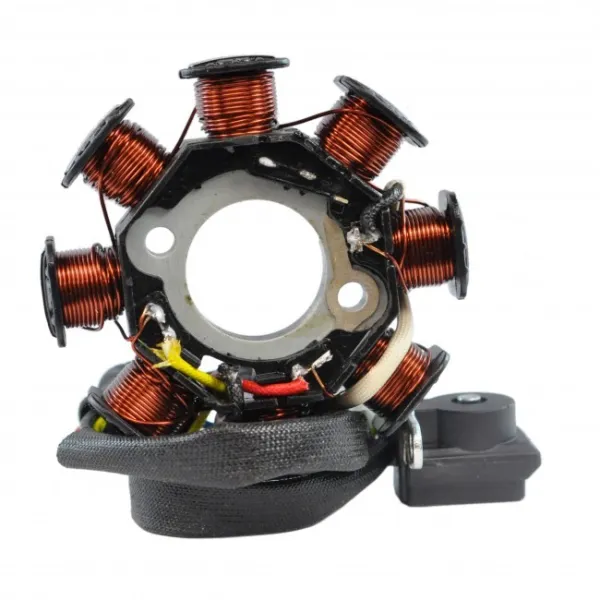

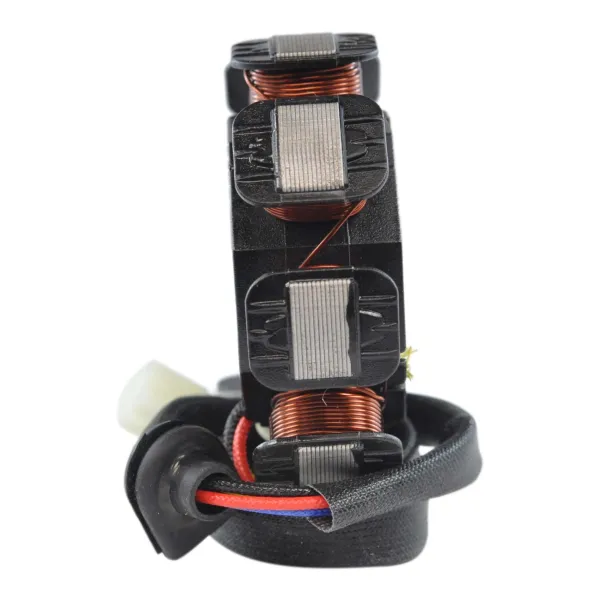

Stator Polaris Outlaw 50 Outlaw 90 Predator 50 Sportsman 90

2017 Polaris Outlaw 50
2016 Polaris Outlaw 50
2016 Polaris Outlaw 90 4 Stroke
2016 Polaris Sportsman 90 4 Stroke Carb
2015 Polaris Outlaw 50
2014 Polaris Outlaw 50
2014 Polaris Outlaw 90 4 Stroke
2014 Polaris Sportsman 90 4 Stroke Carb
2013 Polaris Outlaw 50
2013 Polaris Outlaw 90 4 Stroke
2013 Polaris Sportsman 90 4 Stroke Carb
2012 Polaris Outlaw 50
2012 Polaris Outlaw 90 4 Stroke
2012 Polaris Sportsman 90 4 Stroke Carb
2011 Polaris Outlaw 50
2011 Polaris Outlaw 90 4 Stroke
2011 Polaris Sportsman 90 4 Stroke Carb
2010 Polaris Outlaw 50
2010 Polaris Outlaw 90 4 Stroke
2010 Polaris Sportsman 90 4 Stroke Carb
2009 Polaris Outlaw 50
2009 Polaris Outlaw 90 4 Stroke
2009 Polaris Sportsman 90 4 Stroke Carb
2008 Polaris Outlaw 50
2008 Polaris Outlaw 90 4 Stroke
2008 Polaris Sportsman 90 4 Stroke Carb
2007 Polaris Outlaw 90 4 Stroke
2007 Polaris Predator 50
2007 Polaris Sportsman 90 4 Stroke Carb

OEM
0454949
0453559

Dimensions :
Interior diameter : 29mm
Exterior diameter : 88mm
Thickness : 12mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 300mm
Length of pickup coil's wire to grommet : 30mm

Other specifications :
Number of wires : 4
Number of plugs : 1
Number of pins : 4

Wire to wire resistance :
Alternator : Red to Black = 1ohms +/-20%
Alternator : Yellow to Black = 0.8ohms +/-20%
Pickup : Blue to Black = 120ohms +/-20%

Resistant to 200 degrees Celsius
