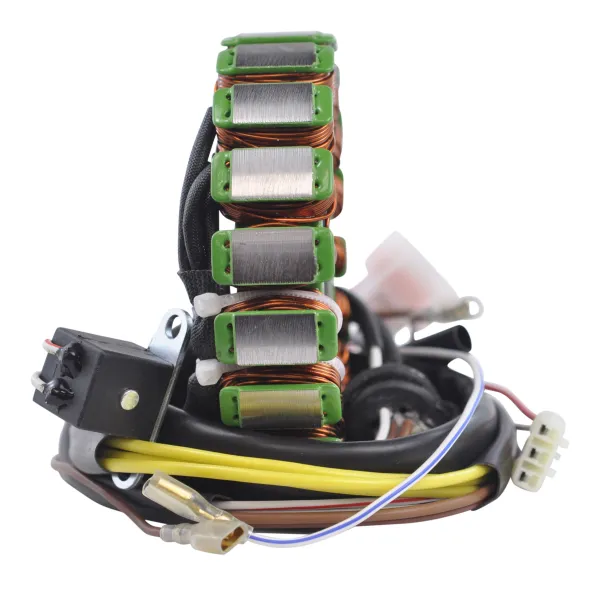

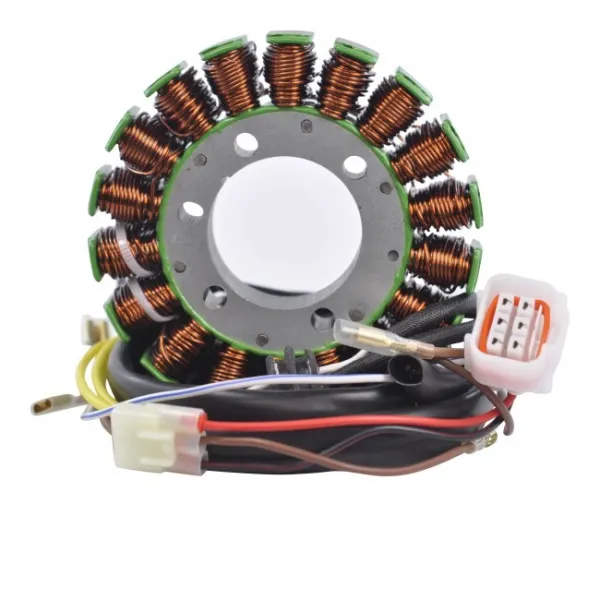

Stator Polaris ATP500 2005

• Stator

• Resistant to 200 degrees Celsius
• Polaris ATP500 2005

• OEM

• 3089249
  3089546



• Pick up pulsar coil included
•

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 108 mm
Thickness: 19 mm

Other specifications:
Number of wires: 11

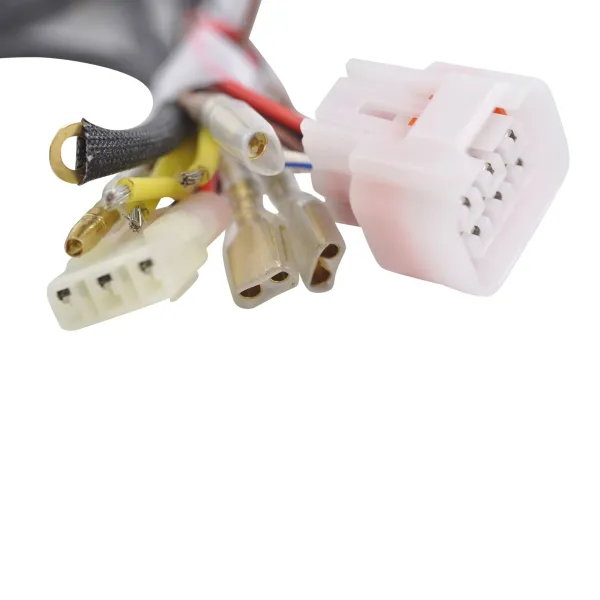

Number of plugs: 6
Number of pins: 9
Harness length Stator to grommet: 100 mm
Harness length grommet to plug: 1000 mm
Pickup coil`s wire length to grommet: 150 mm

Wire to wire resistance:
Alternator:Yellow between each yellow= 0.4 ohms +/-20%
Pickup: White to white/red= 100 ohms =+/-20%
