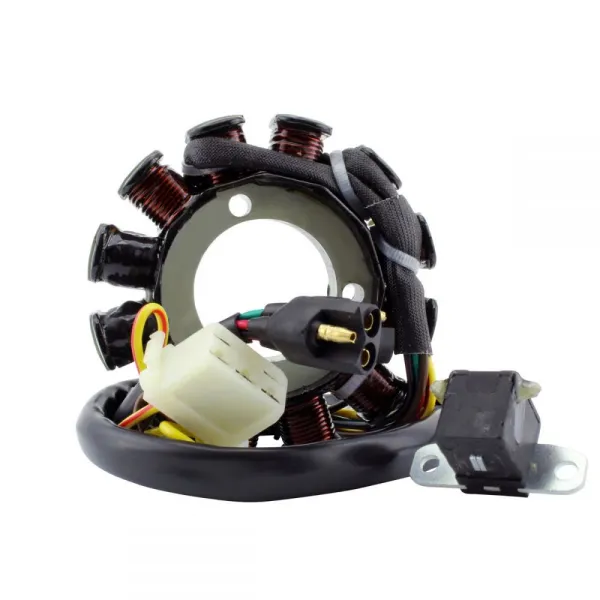

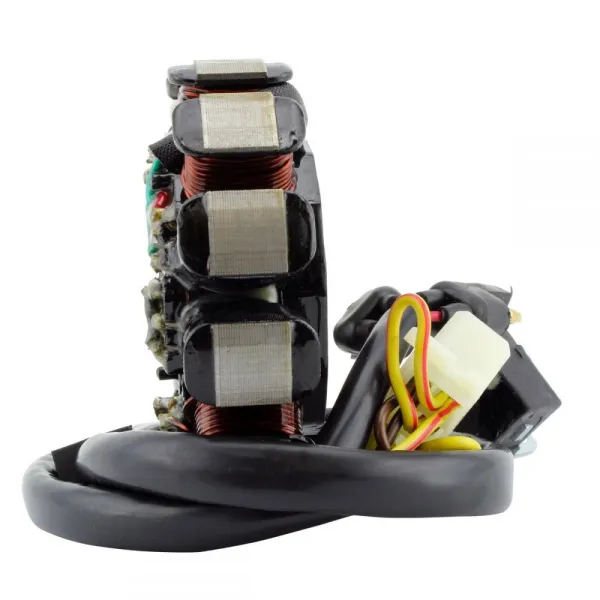

Stator Snowmobile Polaris 500 550 Indy 550 Widetrak 550 IQ LXT OEM 3090362

2020
Polaris
500 Indy RMK Carb L/C
Snowmobile 2020 Polaris 500 Indy RMK Carb L/C
550 Indy Adventure Carb
Snowmobile 2020 Polaris 550 Indy Adventure Carb
550 Indy Carb
Snowmobile 2020 Polaris 550 Indy Carb
550 Indy LXT Carb
Snowmobile 2020 Polaris 550 Indy LXT Carb
550 Indy Voyageur Carb
Snowmobile 2020 Polaris 550 Indy Voyageur Carb
2019
Polaris
550 Indy Adventure Carb
Snowmobile 2019 Polaris 550 Indy Adventure Carb
550 Indy Carb
Snowmobile 2019 Polaris 550 Indy Carb
550 Indy Evo Carb L/C
Snowmobile 2019 Polaris 550 Indy Evo Carb L/C
550 Indy LXT Carb
Snowmobile 2019 Polaris 550 Indy LXT Carb
550 Indy Voyageur Carb
Snowmobile 2019 Polaris 550 Indy Voyageur Carb
550 Widetrak Carb L/C
Snowmobile 2019 Polaris 550 Widetrak Carb L/C
2018
Polaris
550 Indy Adventure Carb
Snowmobile 2018 Polaris 550 Indy Adventure Carb
550 Indy Carb
Snowmobile 2018 Polaris 550 Indy Carb
550 Indy LXT Carb
Snowmobile 2018 Polaris 550 Indy LXT Carb
550 Indy Voyageur Carb
Snowmobile 2018 Polaris 550 Indy Voyageur Carb
550 Widetrak Carb L/C
Snowmobile 2018 Polaris 550 Widetrak Carb L/C
2017
Polaris
550 Indy Adventure Carb
Snowmobile 2017 Polaris 550 Indy Adventure Carb
550 Indy Carb
Snowmobile 2017 Polaris 550 Indy Carb
550 Indy Voyageur Carb
Snowmobile 2017 Polaris 550 Indy Voyageur Carb
550 Widetrak Carb L/C
Snowmobile 2017 Polaris 550 Widetrak Carb L/C
2016
Polaris
550 IQ LXT Carb F/C
Snowmobile 2016 Polaris 550 IQ LXT Carb F/C
550 Indy Adventure Carb
Snowmobile 2016 Polaris 550 Indy Adventure Carb
550 Indy Carb
Snowmobile 2016 Polaris 550 Indy Carb
550 Indy Voyageur Carb
Snowmobile 2016 Polaris 550 Indy Voyageur Carb
550 Widetrak Carb L/C
Snowmobile 2016 Polaris 550 Widetrak Carb L/C
2015
Polaris
550 Indy Adventure Carb
Snowmobile 2015 Polaris 550 Indy Adventure Carb
550 Indy Carb
Snowmobile 2015 Polaris 550 Indy Carb
550 Indy LXT Carb
Snowmobile 2015 Polaris 550 Indy LXT Carb
550 Indy Voyageur Carb
Snowmobile 2015 Polaris 550 Indy Voyageur Carb
2014
Polaris
550 Indy Adventure Carb
Snowmobile 2014 Polaris 550 Indy Adventure Carb
550 Indy Carb
Snowmobile 2014 Polaris 550 Indy Carb
550 Indy LXT Carb
Snowmobile 2014 Polaris 550 Indy LXT Carb
550 Indy Voyageur Carb
Snowmobile 2014 Polaris 550 Indy Voyageur Carb

OEM 3090362

Dimensions :
Interior diameter : 40 mm
Exterior diameter : 100 mm
Thickness : 35 mm
Length of wires stator to grommet : 50 mm
Length of wires grommet to plug : 500 mm
Length of pickup coil's wire to grommet : 90 mm
Other specifications :
Number of wires : 11
Number of plugs : 3
Number of pins : 11
Number of poles : 12

Wire to wire resistance :
Alternator : Yellow to Yellow/Red = 0.4 ohms +-20%
Alternator to ground = O.L
Pickup : White to White/Red = 325 ohms +-20%
Source 1 : Green to Red = 13.8 ohms +-20%
Source 2 : Green to Black/Red = 13.8 ohms +-20%
