Mosfet Regulator Bypass Sportsman Scrambler OEM 22036374010670 4010796 2203638 2203636 4060173 4010657 4013954

2008 Polaris Sportsman 500 6x6

2004 Polaris Sportsman 700 Carb

2004 Polaris Sportsman 600

2004 Polaris Sportsman 500 4x4

2004 Polaris Sportsman 400 4x4 F/C Carb

2004 Polaris Ranger 500 Series 11

2004 Polaris ATP 500

2003 Polaris Sportsman 700 Carb

2003 Polaris Sportsman 600

2003 Polaris Sportsman 500 HO

2003 Polaris Sportsman 500 4x4

2003 Polaris Sportsman 400

2003 Polaris Scrambler 500 4x4

2003 Polaris Ranger 500 Series 10 6x6

2003 Polaris Ranger 500 Series 10 4x4

2003 Polaris Magnum 500 HDS 4x4

2002 Polaris Worker 500

2002 Polaris Sportsman 700 Carb

2002 Polaris Sportsman 500 HO

2002 Polaris Sportsman 500 6x6

2002 Polaris Sportsman 500 4x4

2002 Polaris Serie 10 PTV 4x4 F/C Carb

2002 Polaris Scrambler 500 4x4

2002 Polaris Scrambler 500 2x4

2002 Polaris Magnum 500 HDS 4x4

2002 Polaris Magnum 500 HDS 2x4

2002 Polaris Magnum 500

2002 Polaris LUH 6x6 PPS F/C Carb

2002 Polaris Intl Big Boss 500

2002 Polaris 500 Pro 4x4 F/C Carb

2001 Polaris Worker 500

2001 Polaris Sportsman 500 HO

2001 Polaris Sportsman 500 6x6

2001 Polaris Sportsman 500 4x4

2001 Polaris Scrambler 500 4x4

2001 Polaris Scrambler 500 2x4

2001 Polaris Magnum 500 HDS 4x4

2001 Polaris Magnum 500 4x4

2001 Polaris Intl Big Boss 500

2000 Polaris Worker 500

2000 Polaris Sportsman 500 6x6

2000 Polaris Sportsman 500 4x4

2000 Polaris Scrambler 500 4x4

2000 Polaris Scrambler 500 2x4

2000 Polaris Magnum 500 HDS 4x4

2000 Polaris Magnum 500 EB

2000 Polaris Magnum 500 4x4

2000 Polaris Intl Big Boss 500

1999 Polaris Worker 500

1999 Polaris Sportsman 500 6x6

1999 Polaris Sportsman 500 4x4

1999 Polaris Scrambler 500 4x4

1999 Polaris Scrambler 500 2x4

1999 Polaris Ranger 500 6x6

1999 Polaris Magnum 500 HDS 4x4

1999 Polaris Intl Big Boss 500

1999 Polaris Big Boss 500

1998 Polaris Sportsman 500 4x4

1998 Polaris Scrambler 500 4x4

1998 Polaris Scrambler 500 2x4

1998 Polaris Big Boss 500

1997 Polaris Scrambler 500 4x4

1997 Polaris Scrambler 500 2x4

OEM 2203637

4010670

4010796

2203638

2203636

4060173

4010657

4013954

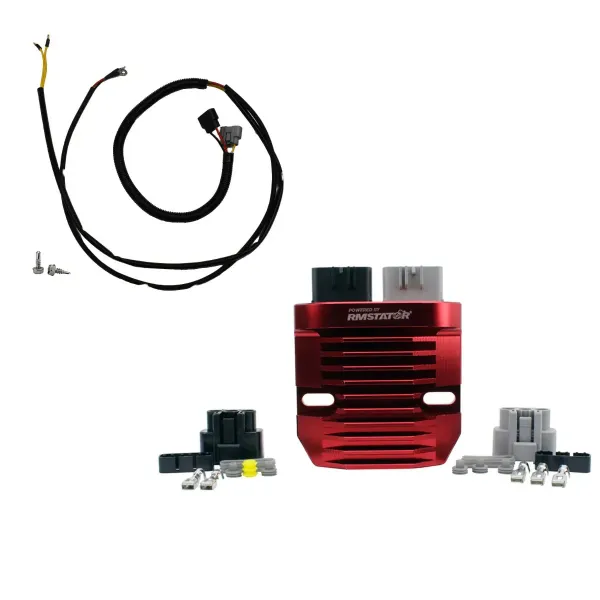

Red Machined Aluminum Mosfet Regulator :

Width: 103 mm

Length: 103 mm

Height: 28 mm

Fixation holes center to center: 80 mm

Other specifications:

Number of plugs: 2

Number of pins: 5

Number of wires: 0

Minimum Charging Voltage: 14.5 V +/- 0.5 V

Maximum Charging Current: 50 A / 500 W

Open Circuit Voltage: < 15 V

Operation Temperature: -20° C to 85°C

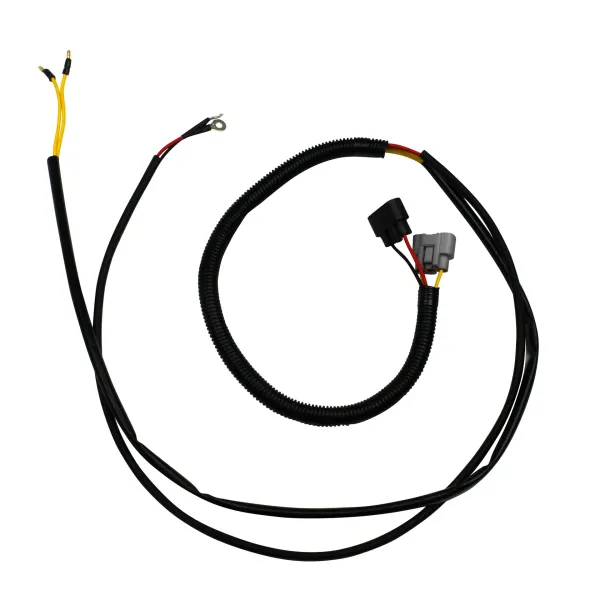

Regulator Bypass Harness :

Wires length: 1000 mm

Number of yellow wires: 2

Number of red wires: 1

Number of black wires: 1

Number of plugs: 2

NEW WIRE HARNESS BYPASS DESIGN

The undersized OEM Polaris regulators are notoriously prone to failures which can affect the entire charging system (including the stator) and incur steep repair expenses. But we have designed a regulator upgrade & bypass harness kit for your Sportsman 500/600/700 (and Scrambler, Big Boss, Worker, Magnum, etc) to significantly improve your charging system!

Our new bypass voltage regulator brings back the renowned RMSTATOR Mosfet technology with the RMSTATOR machined aluminum case in a new configuration designed to bypass the main wiring harness and connect the voltage regulator directly to the battery. This configuration has demonstrated a major increase in voltage regulator reliability in real life scenarios over the years.

Features

Mosfet circuit

Significantly lowers the operating temperature for an increased voltage regulator lifespan. Provide a steadier and smoother signal to the battery.

Billet aluminum housing

Runs 33% cooler than standard cast voltage regulator housings.

PRO-FIT System

Includes everything required to perform a RMSTATOR-style professional installation: part connectors, harness-side connectors & dielectric connector grease.
