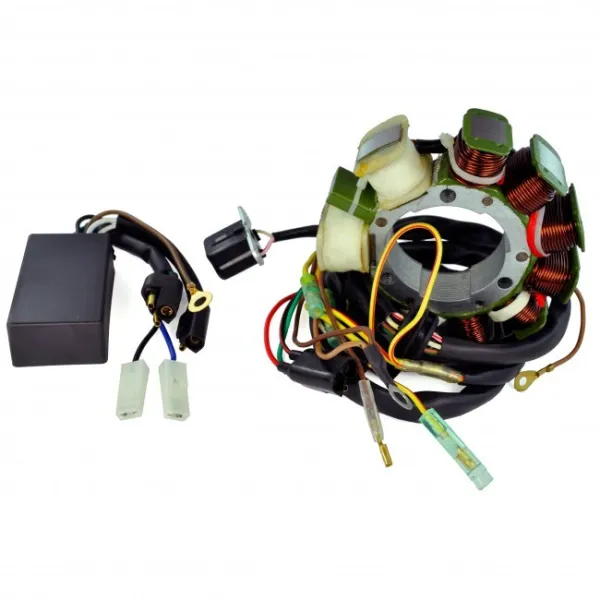

Kit Stator CDI Box Polaris Magnum 500 Worker 500 Big Boss 500 Sportsman 500 Scrambler 500 Ranger 500 6x6

Kit Stator CDI Box Polaris Magnum 500  Worker 500 Big Boss 500 Sportsman 500 Scrambler 500 Ranger 500 6x6

2000 Polaris Big Boss 500 6x6
2000 Polaris Magnum 500 4x4
2000 Polaris Magnum 500 EB
2000 Polaris Magnum 500 HDS 4x4
2000 Polaris Scrambler 500 4x4
2000 Polaris Sportsman 500 4x4 Carb
2000 Polaris Sportsman 500 6x6 Carb
2000 Polaris Sportsman 500 RSE Carb
1999 Polaris Big Boss 500 6x6
1999 Polaris Big Boss 500 6x6 International
1999 Polaris Magnum 500 4x4
1999 Polaris Scrambler 500 4x4
1999 Polaris Sportsman 500 4x4 Carb
1999 Polaris Sportsman 500 RSE Carb
1999 Polaris Worker 500
1998 Polaris Big Boss 500 6x6
1998 Polaris Scrambler 500 4x4
1998 Polaris Sportsman 500 4x4 Carb
1997 Polaris Scrambler 500 4x4

1999 Polaris Ranger 500 6x6

OEM
Stator:
3085561
3086821

High Performance CDI Box:
3085639

Dimensions:
Interior diameter: 51 mm
Exterior diameter: 114 mm
Thickness: 20 mm

Other specifications:
Number of wires: 9
Number of plugs: 7
Number of pins: 10

Wire to wire resistance:
Alternator: Yellow to Yellow/Red = 0.4 ohms +/-20%
Pickup: White to White/Red = 100 ohms =+/-20%
Source Green to Red = 450 ohms =+/-20%
Source 2: Green to Black/Red = 3.8 ohms =+/-20%

Dimensions CDI Box:
Height: 70 mm
Length: 23 mm
Width: 38 mm

Other specifications:
Number of plugs: 5
Number of pins: 8
