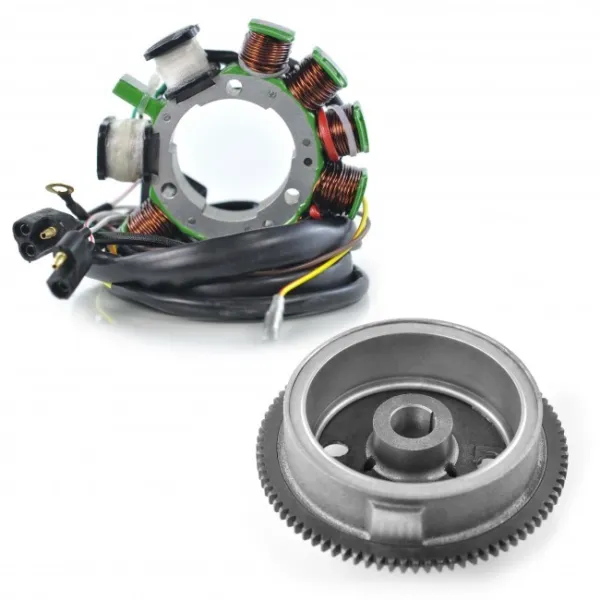

Kit Stator Flywheel Rotor Polaris Sportsman 500 1998-2001
Kit Stator Flywheel Rotor Polaris Sportsman 500 1998-2001
Kit Stator Flywheel Rotor Polaris Sportsman 500 1998-2001
Kit Stator Flywheel Rotor Polaris Sportsman 500 1998-2001
Kit Stator Flywheel Rotor Polaris Sportsman 500 1998-2001

Kit Stator Flywheel Rotor Polaris Sportsman 500 1998-2001

€458.00 Tax included

  • Resistant to 200 degrees Celsius
  • Kit Stator Flywheel Rotor Polaris Sportsman 500 1998-2001
Reference
CARMS900-102180
5-7 Days (3 Items)

  • Kit Stator Flywheel Rotor Polaris
  • 2001 Polaris Big Boss 500 6x6
    2001 Polaris Big Boss 500 6x6 International
    2001 Polaris Sportsman 500 6x6 Carb
    2000 Polaris Big Boss 500 6x6 International
    2000 Polaris Magnum 500 4x4
    2000 Polaris Magnum 500 EB
    2000 Polaris Magnum 500 HDS 4x4
    2000 Polaris Scrambler 500 4x4
    2000 Polaris Sportsman 500 4x4 Carb
    2000 Polaris Sportsman 500 6x6 Carb
    2000 Polaris Sportsman 500 RSE Carb
    1999 Polaris Big Boss 500 6x6
    1999 Polaris Big Boss 500 6x6 International
    1999 Polaris Magnum 500 4x4
    1999 Polaris Scrambler 500 4x4
    1999 Polaris Sportsman 500 4x4 Carb
    1999 Polaris Sportsman 500 RSE Carb
    1999 Polaris Worker 500
    1998 Polaris Big Boss 500 6x6
    1998 Polaris Scrambler 500 4x4
    1998 Polaris Sportsman 500 4x4 Carb
    1997 Polaris Scrambler 500 4x4

  • OEM
    Stator:
    3085561
    3086821

    Flywheel:
    3085558
    3087166
    3086819
    3086983

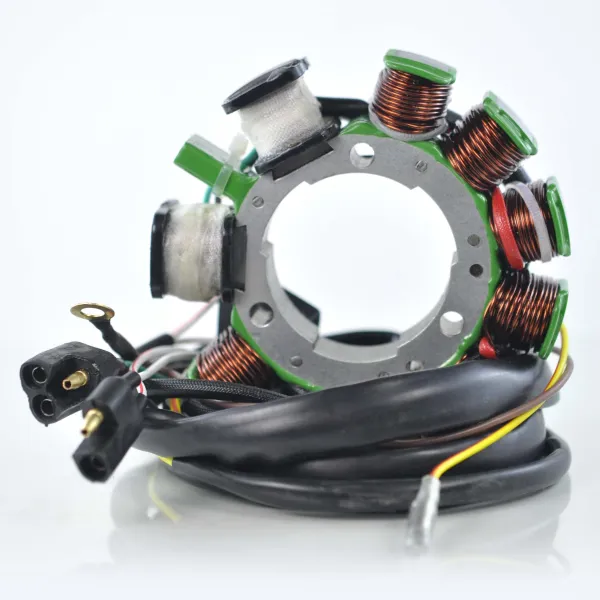

    Stator:
    Dimensions:
    Interior diameter: 51 mm
    Exterior diameter: 114 mm
    Thickness: 20 mm
    Other specifications:
    Number of wires: 9
    Number of plugs: 7
    Number of pins: 10
    Wire to wire resistance:
    Alternator: Yellow to Yellow/Red = 0.6 ohms +/-20%
    Pickup: White to White/Red = 100 ohms =+/-20%
    Source Green to Red/Black = 450 ohms =+/-20%
    Source 2: Green to Black = 3.8 ohms =+/-20%

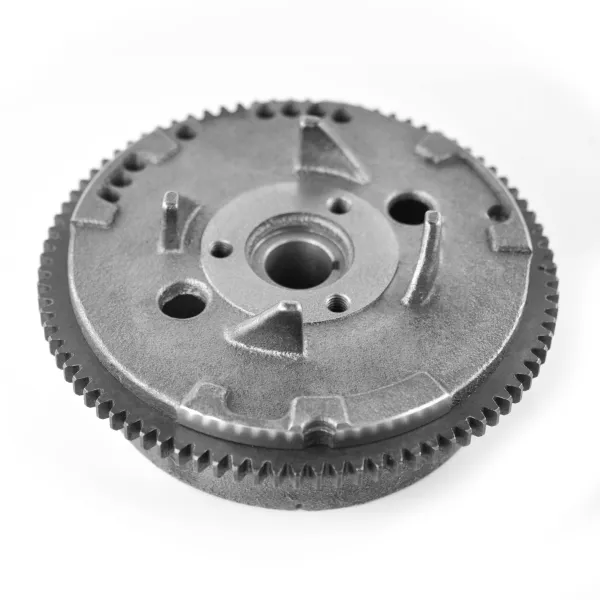

    Flywheel:
    Dimensions:
    Exterior Diameter: 141 mm
    Interior Diameter: 117 mm
    Interior Diameter Center Housing: 25 mm
    Exterior Diameter Center Housing: 23 mm



  • Pick up pulsar coil included
    Connector included

  • Resistant to 200 degrees Celsius
