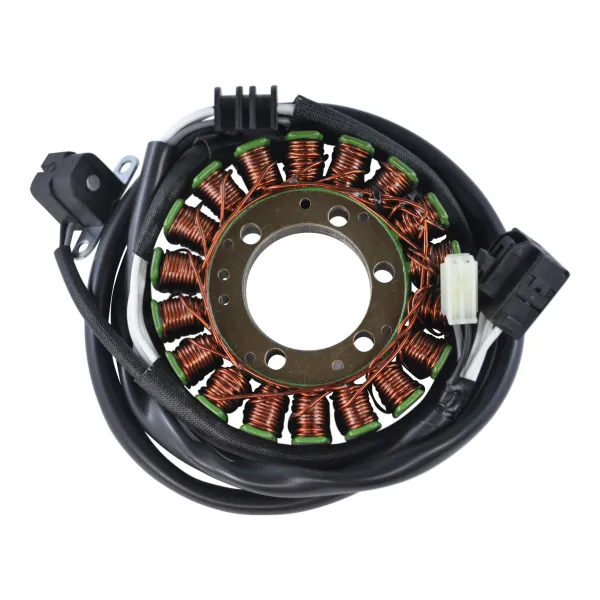

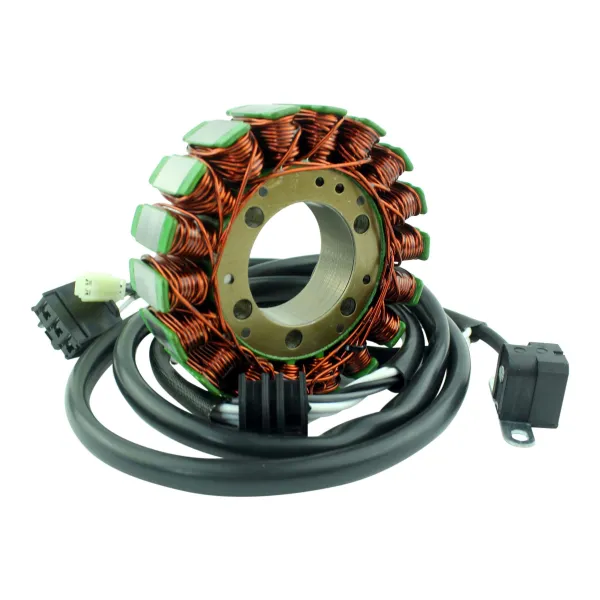

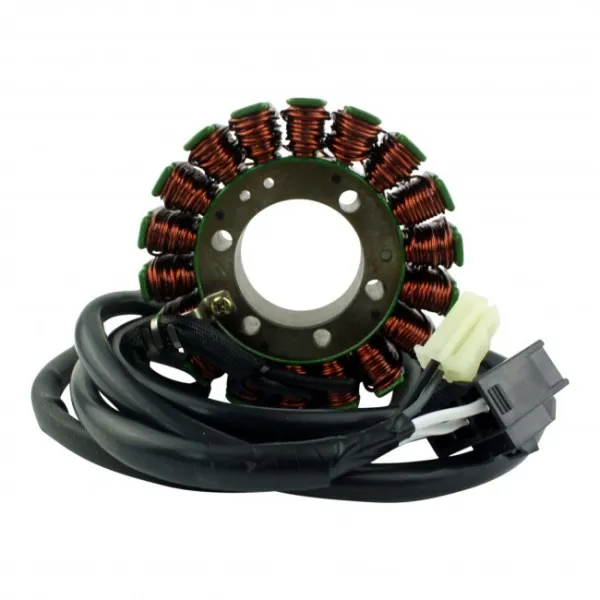

Stator-Yamaha-TMax 500

    2011
        Yamaha
            TMAX 500
                Scooter 2011 Yamaha TMAX 500
    2010
        Yamaha
            TMAX 500
                Scooter 2010 Yamaha TMAX 500
    2009
        Yamaha
            TMAX 500
                Scooter 2009 Yamaha TMAX 500
    2008
        Yamaha
            TMAX 500
                Scooter 2008 Yamaha TMAX 500
    2007
        Yamaha
            TMAX 500
                Scooter 2007 Yamaha TMAX 500
    2006
        Yamaha
            TMAX 500
                Scooter 2006 Yamaha TMAX 500
    2005
        Yamaha
            TMAX 500
                Scooter 2005 Yamaha TMAX 500
    2004
        Yamaha
            TMAX 500
                Scooter 2004 Yamaha TMAX 500
    2003
        Yamaha
            TMAX 500
                Scooter 2003 Yamaha TMAX 500
    2002
        Yamaha
            TMAX 500
                Scooter 2002 Yamaha TMAX 500
    2001
        Yamaha
            TMAX 500
                Scooter 2001 Yamaha TMAX 500

OEM
4B5-81410-00-00

Dimensions:
Interior diameter: 43mm
Exterior diameter: 105mm
Thickness: 22mm
Length of wires stator to grommet: 360mm
Length of wires grommet to plug: 1060mm
Length of wires pickup coil to grommet: 280mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5

Wire to wire resistance:
Alternator: = 0.4ohms +/-20%
Pickup: = 563ohms =+/-20%


Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
Rubber grommet included
All products shipped are tested
