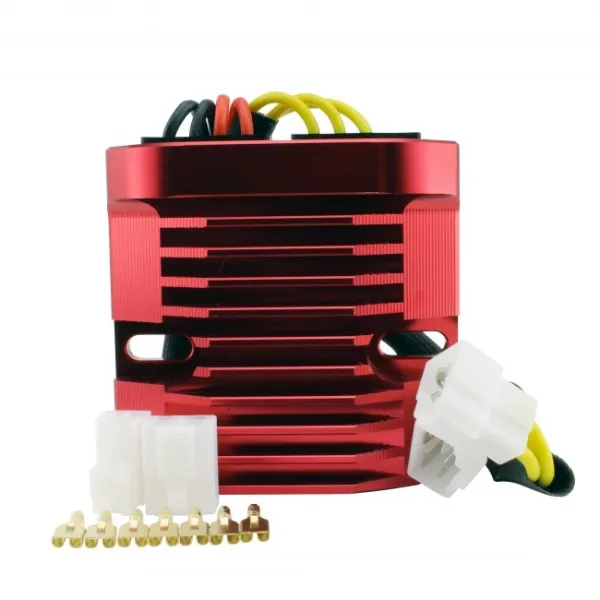

Aluminum Mosfet Regulator Triumph Daytona 955i Daytona 600 Daytona 650 Sprint ST955 Sprint RS955 OEM T1300560 T1304040

Regulator Rectifier - Mosfet
1997-2006 Daytona 955i
2000-2005 Daytona 600
2002-2005 Daytona 650
1999-2004 Sprint ST 955
2000-2004 Sprint RS 955
OEM T1300560 T1304040
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
Dimensions:
Width: 90 mm
Length: 94 mm
Height: 30 mm
Fixation holes center to center: 79 mm
Other specifications:

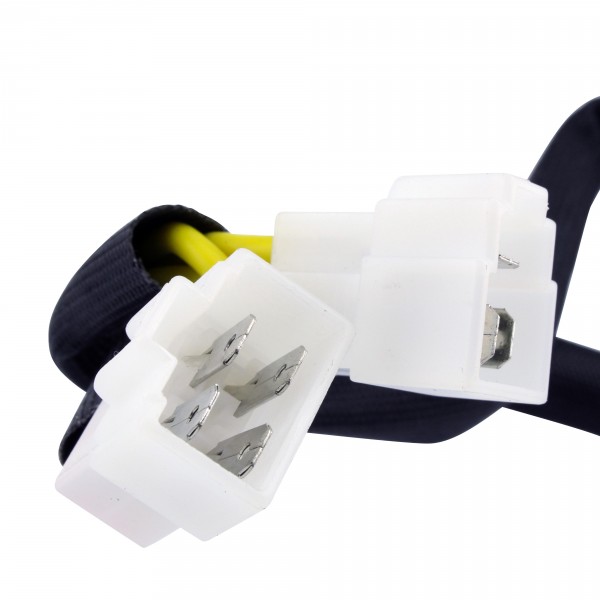

Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20⁰ to 85⁰

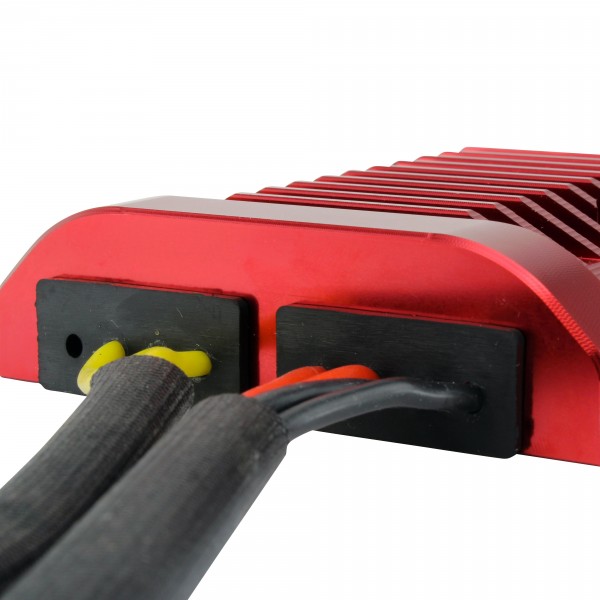

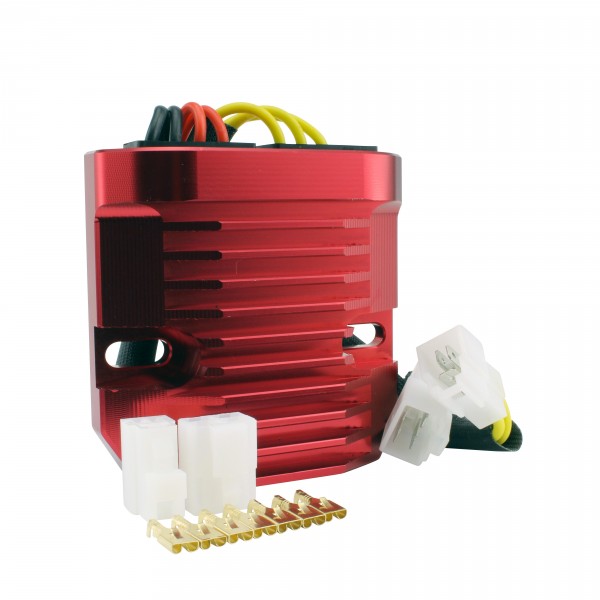

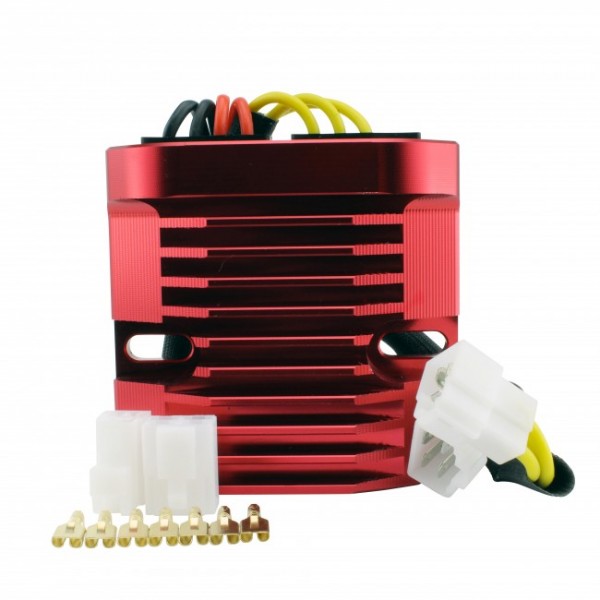

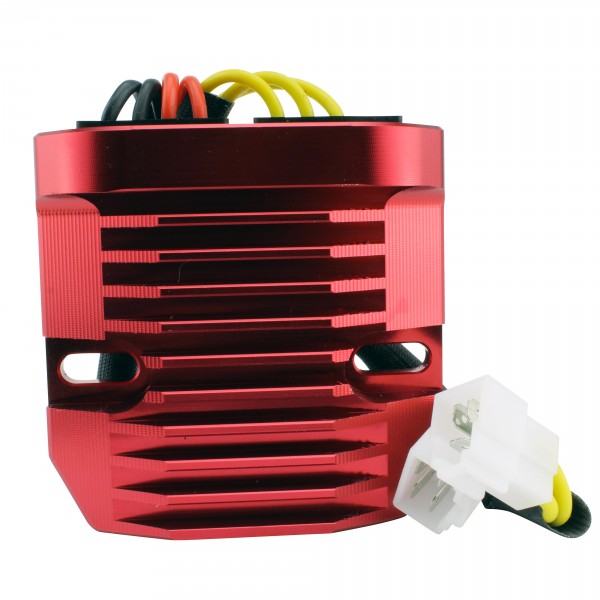

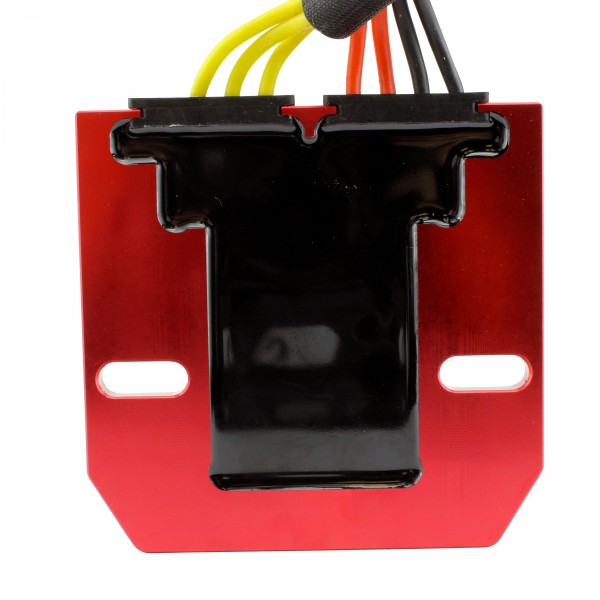

Our new machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
