Kit Stator Rotor Puller Regulator Rectifier Mosfet Arctic Cat 650 H1 Prowler 650

Kit Stator Rotor Puller Regulator Rectifier Mosfet Arctic Cat 650 H1 Prowler 650

650 H1 2008-2010

2008
Prowler 650 H1 4x4 Automatic
Prowler 650 XT 4x4 Automatic
Prowler 650 XT 4x4 Automatic M4
2007
Prowler 650 H1 4x4 Automatic
Prowler 650 XT 4x4 Automatic
2006
Prowler 650 XT 4x4 Automatic

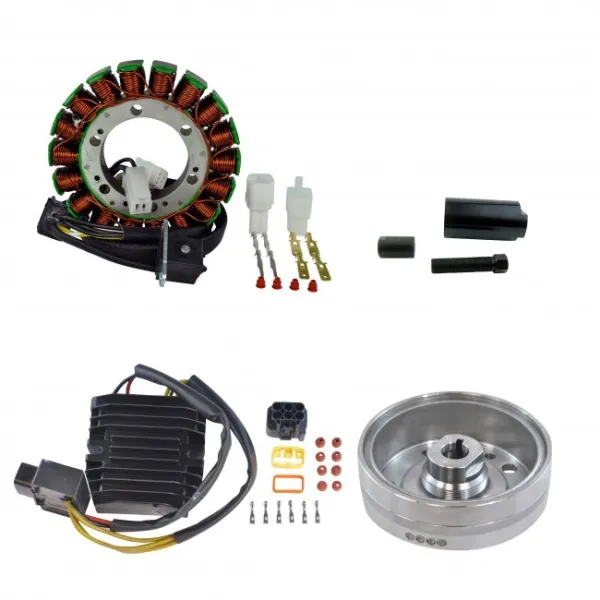

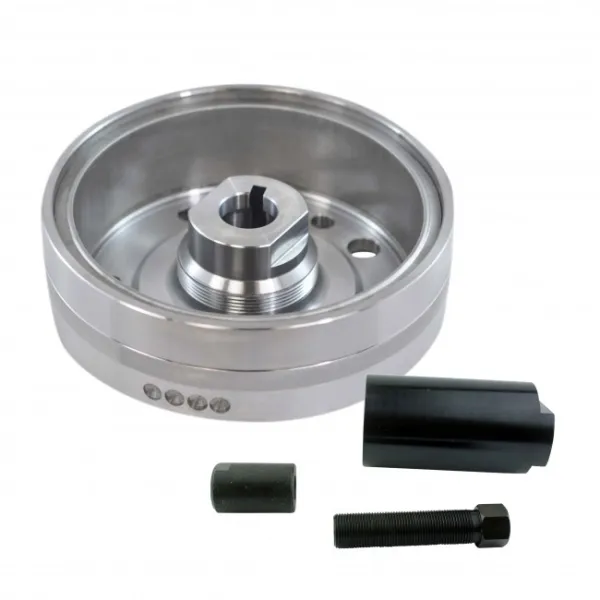

OEM
Stator
0802-037
Flywheel
0802-036
Flywheel Puller
0444-254
Mosfet Voltage Regulator Rectifier
0824-037

Stator
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 119 mm
Thickness: 15 mm
Other specifications:
Number of wires: 7
Number of plugs: 4
Number of pins: 7
Wire to wire resistance:
Alternator : White Between each White = 0.4 ohms+/-20%
Alternator : White to Ground = O.L. ON DISPLAY
Pick up Coil : Blue to green = 200 ohms+/- 20%
Position Sensor :White to yellow = 0.2 ohms+/- 20%

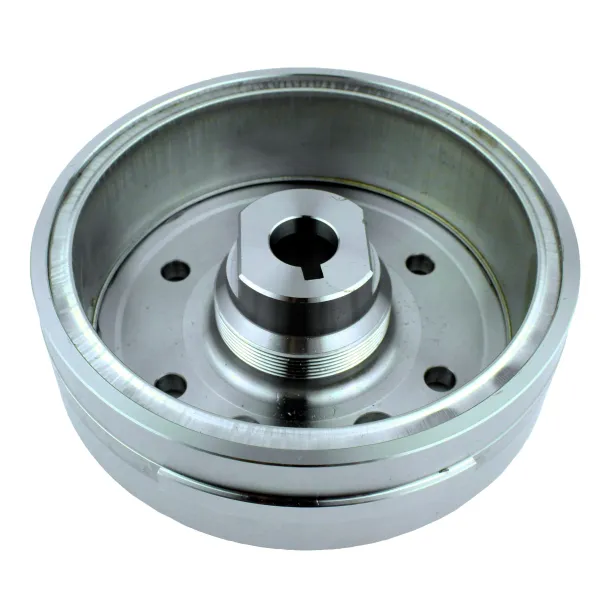

Flywheel
Dimensions:
Exterior Diameter: 143.40mm
Interior Diameter: 120.50mm
Interior Diameter Center Housing: 20.25mm
Exterior Diameter Center Housing: 33.45mm
Thickness (exterior): 50.95mm
Thickness (interior): 41.60mm

Mosfet Voltage Regulator Rectifier
Dimensions :
Width : 93mm
Length : 102mm
Height: 27mm
Fixation holes center to center : 72mm
Other specifications :
Number of plugs : 1
Number of pins : 6
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: <15V
Operation Temperature: -20⁰ to 85⁰
