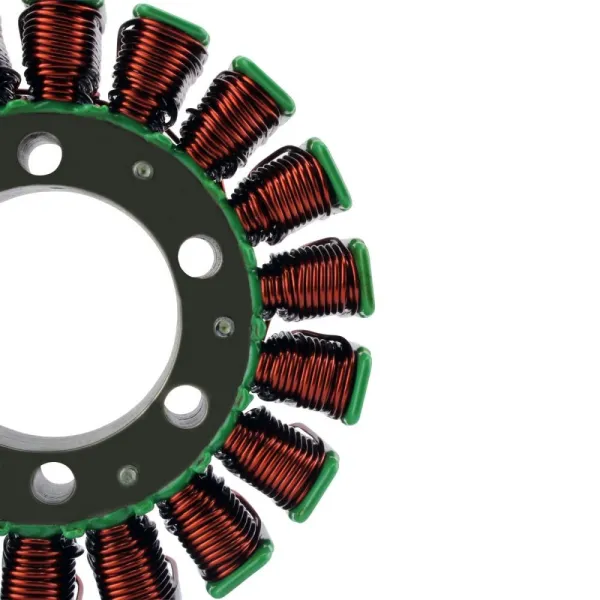

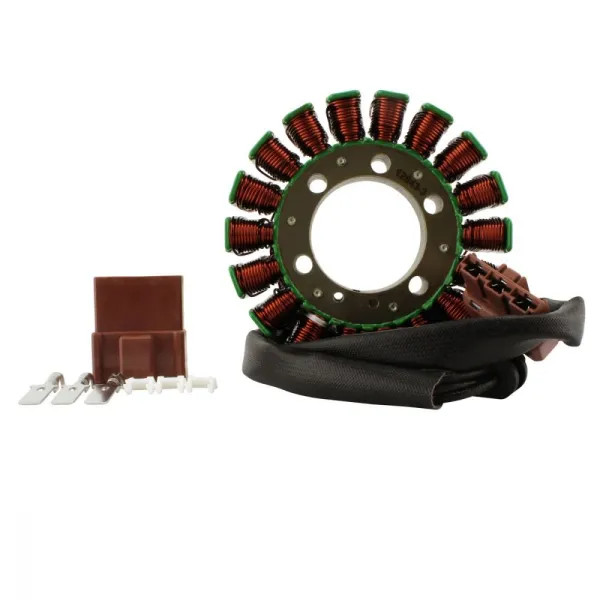

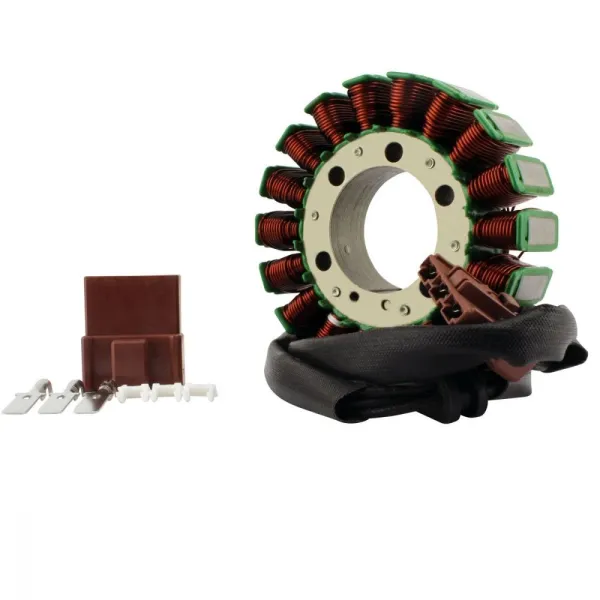

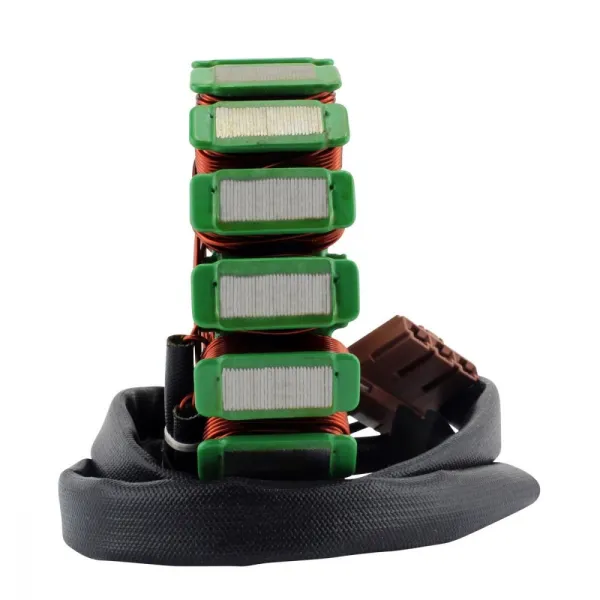

Stator KTM 690 Duke 690 Enduro SMC OEM 750239004100 75039004200

2022 KTM 690 SMC R
2022 KTM 690 Enduro R
2021 KTM 690 SMC R
2021 KTM 690 Enduro R
2020 KTM 690 SMC R
2020 KTM 690 Enduro R
2019 KTM 690 SMC R
2019 KTM 690 Enduro R
2018 KTM 690 Enduro R
2017 KTM 690 Enduro R
2017 KTM 690 Duke
2016 KTM 690 Enduro R
2016 KTM 690 Duke
2015 KTM 690 Enduro R
2015 KTM 690 Duke
2014 KTM 690 Enduro R
2014 KTM 690 Duke
2013 KTM 690 Duke

OEM 75039004200
75039004100

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 105 mm
Thickness: 17 mm
Length of wires stator to grommet: 85 mm
Length of wires grommet to plug: 575 mm

Other specifications:
Number of wires: 3

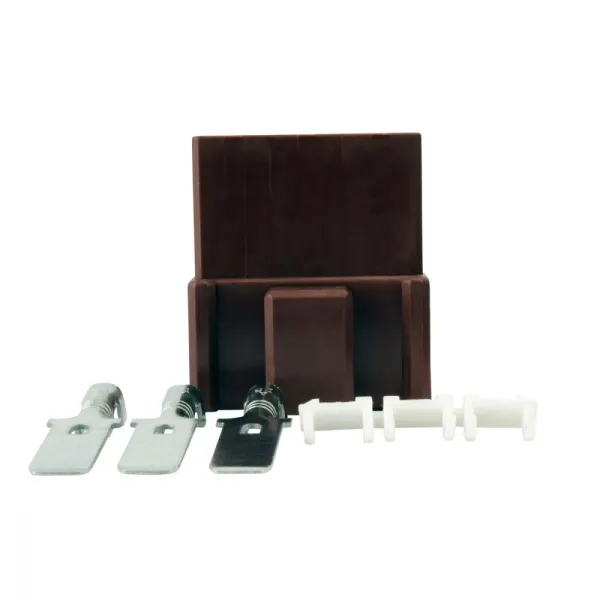

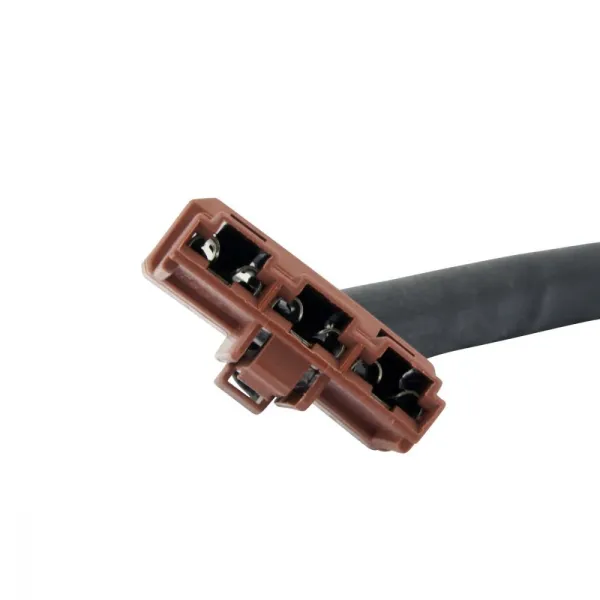

Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: Black to Black = 0.4 ohms +-20%
Alternator: Black to ground = O.L
