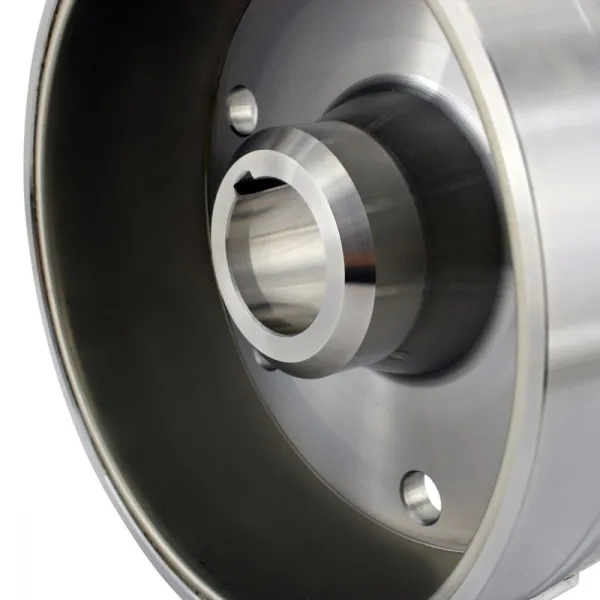

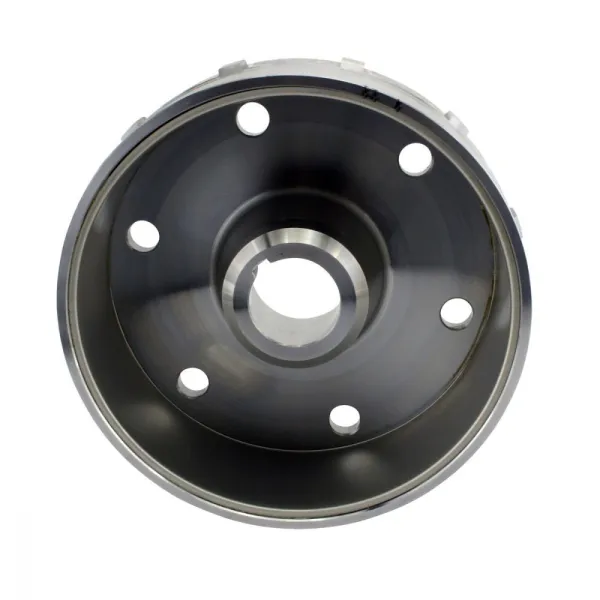

Rotor Yamaha YXR 700 Rhino YFM 700 Grizzly OEM 3B4-81450-00-00

2013 Yamaha YXR 700 Rhino
2012 Yamaha YXR 700 Rhino
2011 Yamaha YXR 700 Rhino
2009 Yamaha YXR 700 Rhino
2008 Yamaha YXR 700 Rhino
2008 Yamaha YFM 700 Grizzly
2007 Yamaha YFM 700 Grizzly

OEM 3B4-81450-00-00

Dimensions:
Exterior Diameter: 118 mm
Interior Diameter: 107 mm
Interior Diameter Center Housing: 28 mm
Exterior Diameter Center Housing: 38 mm

Improved epoxy: Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.

High grade steel capping: Prevents heat and friction from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.

Precise balancing: Eliminates crankshaft vibrations for longer engine longevity.
