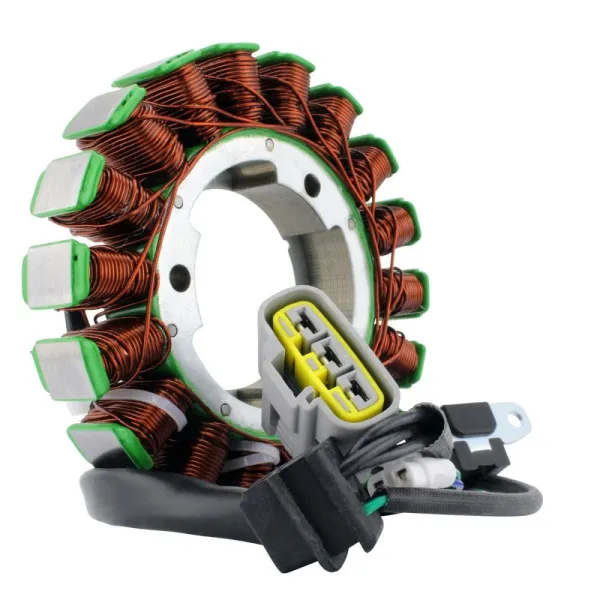

Stator Suzuki LTA750 KingQuad AXi OEM 32101-34K00

2022 Suzuki LTA 750 KingQuad AXi
2021 Suzuki LTA 750 KingQuad AXi
2020 Suzuki LTA 750 KingQuad AXi
2019 Suzuki LTA 750 KingQuad AXi

OEM 32101-34K00

Dimensions :
Interior diameter : 54mm
Exterior diameter : 127mm
Thickness : 19mm
Length of wires stator to grommet : 195mm
Length of wires grommet to plug : 250mm & 270mm
Length of pickup coil's wire to grommet : 130mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator :  = 0.6 ohms +/-20%
Pickup : Blue to White = 196 ohms +/-20%
