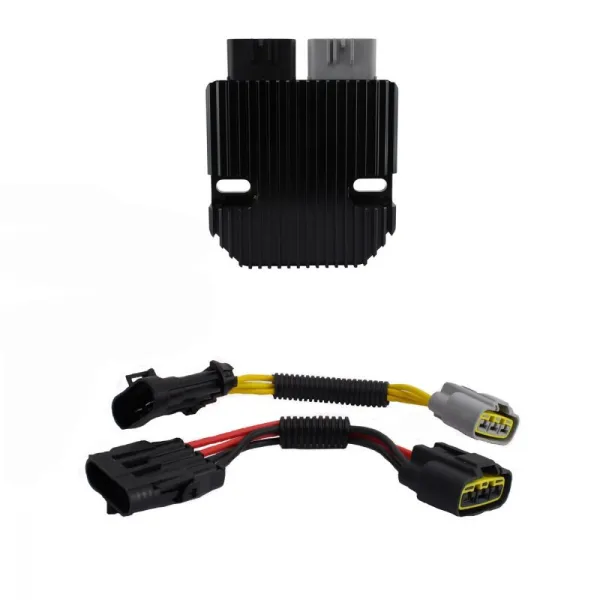

REVOLT Regulator Polaris RZR800 Sportsman 500 700 800 Ranger 500 700 OEM 4011569 4011925 4012384

2010 Polaris Sportsman 800 Big Boss
2009 Polaris Sportsman X2 800
2009 Polaris Sportsman X2 500
2009 Polaris Sportsman 800 Touring
2009 Polaris Sportsman 800 HO
2009 Polaris Sportsman 800 EFI
2009 Polaris Sportsman 500 Touring
2009 Polaris Sportsman 500
2009 Polaris Ranger Crew 700
2009 Polaris Ranger 700
2009 Polaris Ranger 500 EFI 4x4
2009 Polaris RZR 800 S
2009 Polaris RZR 800 EFI
2008 Polaris Sportsman X2 800
2008 Polaris Sportsman X2 700
2008 Polaris Sportsman X2 500
2008 Polaris Sportsman 800 Touring
2008 Polaris Sportsman 800 HO
2008 Polaris Sportsman 800 EFI
2008 Polaris Sportsman 500 Touring
2008 Polaris Sportsman 500 HO EFI
2008 Polaris Sportsman 500
2008 Polaris Ranger Crew 700
2008 Polaris Ranger 700 6x6 EFI
2008 Polaris Ranger 700
2008 Polaris Ranger 500 EFI 4x4
2008 Polaris RZR 800 EFI
2007 Polaris Sportsman X2 800
2007 Polaris Sportsman 800 INTL
2007 Polaris Sportsman 800 EFI
2007 Polaris Sportsman 700 EFI
2007 Polaris Ranger 700 XP
2007 Polaris Ranger 700 6x6 EFI
2007 Polaris Ranger 700

OEM 4011569
4011925
4012384

REVOLT Voltage Regulator Rectifier:
Width: 103mm
Length: 102 mm
Height: 26mm
Fixing holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A / 500W
Open Circuit Voltage: <15V
Operating Temperature: -20°C to 85°C

REVOLT Harness
Wire length: 150mm
Number of yellow wires: 3
Number of red wires: 1
Number of green wires: 1
Number of plugs: 3

RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products.

SOLVES THE MAJOR CAUSE OF FAILURE
REVOLT is the only voltage regulator rectifier on the market with a redesigned rectifier circuit to considerably improve reliability.

DISSIPATE HEAT 45% BETTER THAN OEM
Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

REVOLT is engineered, designed, and manufactured in USA under strict USA-based quality control standards.
