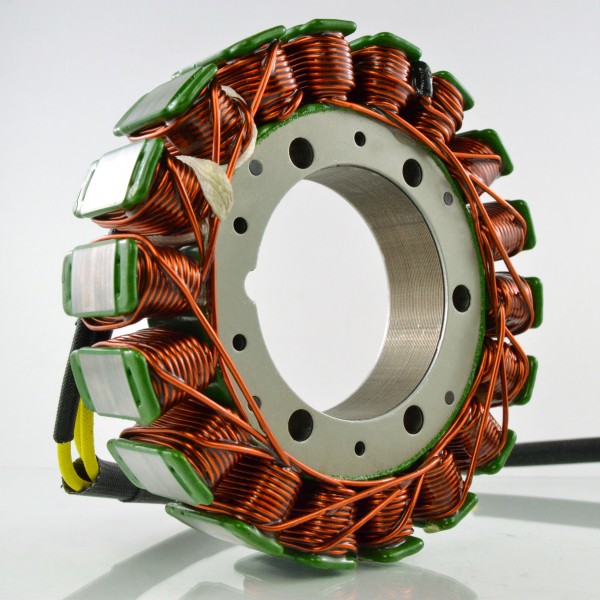

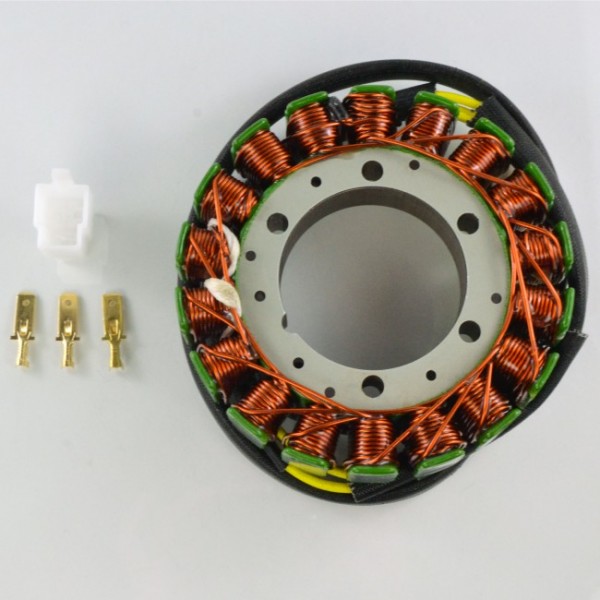

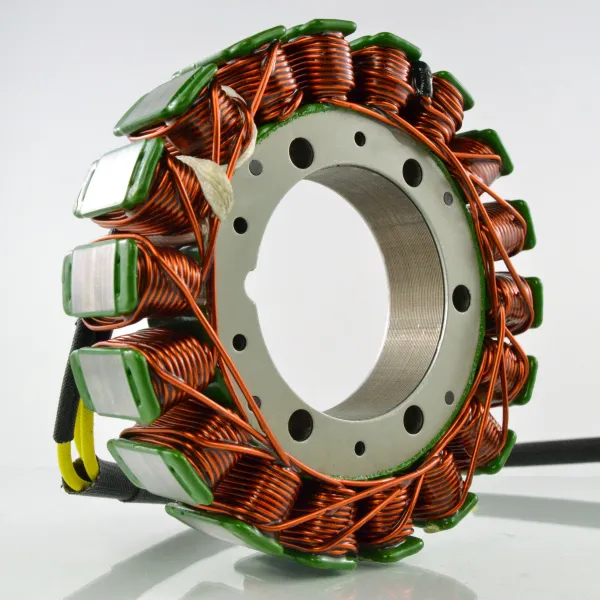

Stator Triumph Scrambler 900 Thruxton 900 Speedmaster 800 900 America 800 Bonneville 50 900 T100 OEM T1300076

Stator

2001 Triumph America 800
2002 Triumph America 800
2003 Triumph America 800
2004 Triumph America 800
2005 Triumph America 800
2006 Triumph America 800

2007 Triumph America 900
2008 Triumph America 900

2001 Triumph Bonneville 800
2002 Triumph Bonneville 800
2003 Triumph Bonneville 800
2004 Triumph Bonneville 800
2005 Triumph Bonneville 800
2006 Triumph Bonneville 800
900
2007 Triumph Bonneville 900
2008 Triumph Bonneville 900

2006 Triumph Scrambler 900
2007 Triumph Scrambler 900
2008 Triumph Scrambler 900
2009 Triumph Scrambler 900

2003 Triumph Speedmaster 800
2004 Triumph Speedmaster 800
2005 Triumph Speedmaster 800

2006 Triumph Speedmaster 900
2007 Triumph Speedmaster 900
2008 Triumph Speedmaster 900

2001 Triumph T100
2002 Triumph T100
2003 Triumph T100
2004 Triumph T100
2005 Triumph T100
2006 Triumph T100
2007 Triumph T100
2008 Triumph T100

2004 Triumph Thruxton 900
2005 Triumph Thruxton 900
2006 Triumph Thruxton 900
2007 Triumph Thruxton 900
2008 Triumph Thruxton 900

OEM T1300076

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 20 mm
Length of wires stator to grommet : 195 mm
Length of wires grommet to plug : 660 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow Between Yellow = 0.4 ohms +-20%
