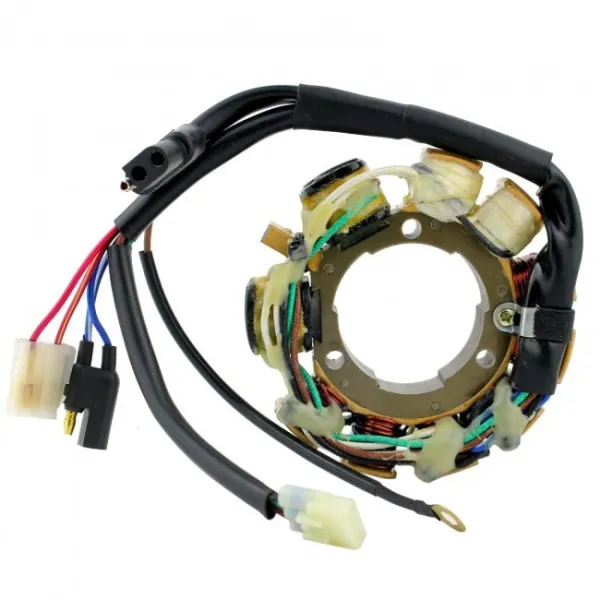

Stator Arctic Cat Pantera 580 ZL500 600 Powder 500 580 600 ZR500 580 600

2001 Arctic Cat Pantera 580 EFI L/C
2000 Arctic Cat ZR 500 EFI L/C
2000 Arctic Cat ZL 580 EFI L/C
2000 Arctic Cat ZL 500 EFI L/C
2000 Arctic Cat Powder 600 Special EFI L/C
2000 Arctic Cat Powder 500 Special EFI L/C
2000 Arctic Cat Pantera 580 EFI L/C
1999 Arctic Cat ZR 600 EFI L/C
1999 Arctic Cat ZR 500 EFI L/C
1999 Arctic Cat ZL 600 EFI L/C
1999 Arctic Cat ZL 500 EFI L/C
1999 Arctic Cat Powder 600 Special LE EFI L/C
1999 Arctic Cat Powder 600 Special EFI L/C
1999 Arctic Cat Powder 500 Special EFI L/C
1999 Arctic Cat Pantera 580 EFI L/C
1998 Arctic Cat ZR 600 EFI L/C
1998 Arctic Cat Powder 600 Special EFI L/C
1998 Arctic Cat EXT 580 EFI L/C
1997 Arctic Cat ZR 580 EFI L/C
1997 Arctic Cat Powder 580 Special EFI L/C

OEM 3005-080

Dimensions:
Interior diameter: 51 mm
Exterior diameter: 114 mm
Thickness: 20 mm
Length of wires stator to connectors: 200 mm

Other specifications:
Number of wires: 11
Number of plugs: 4
Number of pins: 11

Wire to wire resistance:
Alternator: Red/Yellow To Red/Yellow = 0.4 ohms +/-20%

Source 1: Black To Green = 45 ohms +/-20%
Source 2: Brown To Green = 450 ohms +/-20%
Other: Blue/White To Blue/White = 18 ohms +/-20%
Other accessories: Orange To Orange = 0.2 ohms +/-20%
