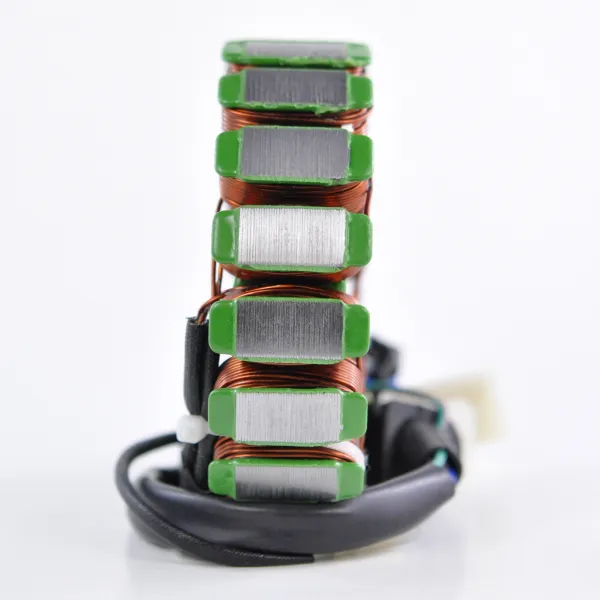

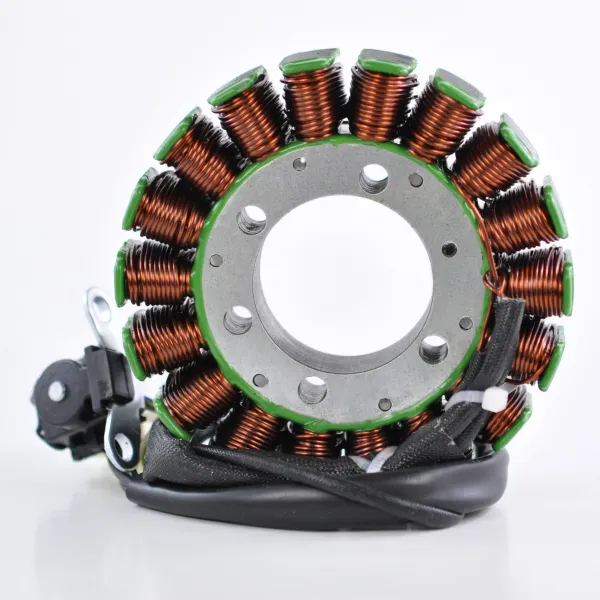

Stator Honda CBR300R CB300F OEM 31120-KYJ-901

 Stator Honda CBR300R CB300F OEM 31120-KYJ-901

2022 Honda CBR 300 R
2021 Honda CBR 300 R
2020 Honda CBR 300 R
2020 Honda CB 300 R
2019 Honda CBR 300 R
2019 Honda CB 300 R
2018 Honda CBR 300 R
2018 Honda CB 300 F
2017 Honda CBR 300 R
2017 Honda CB 300 F
2016 Honda CBR 300 R
2016 Honda CB 300 F
2015 Honda CBR 300 R
2015 Honda CB 300 F
2013 Honda CBR 250 R
2012 Honda CBR 250 R
2011 Honda CBR 250 R

OEM 31120-KYJ-901

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 107 mm
Thickness : 22 mm
Length of wires stator to grommet : 60 mm
Length of wires grommet to plug : 180 mm
Length of pickup coil's wire to grommet : 20 mm

Other specifications :
Number of wires : 6

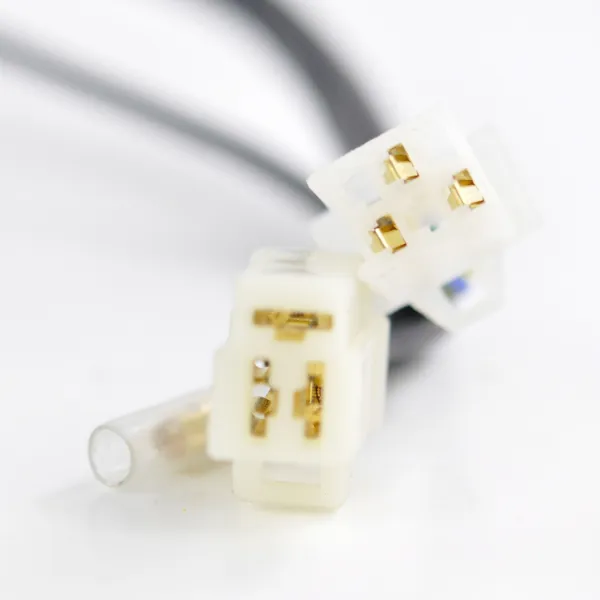

Number of plugs : 3
Number of pins : 10

Wire to wire resistance :
Alternator : Black to Black = 0.6 ohms +/-20%
Pickup : White/Yellow to Blue/Yellow = 232 ohms +/-20%
