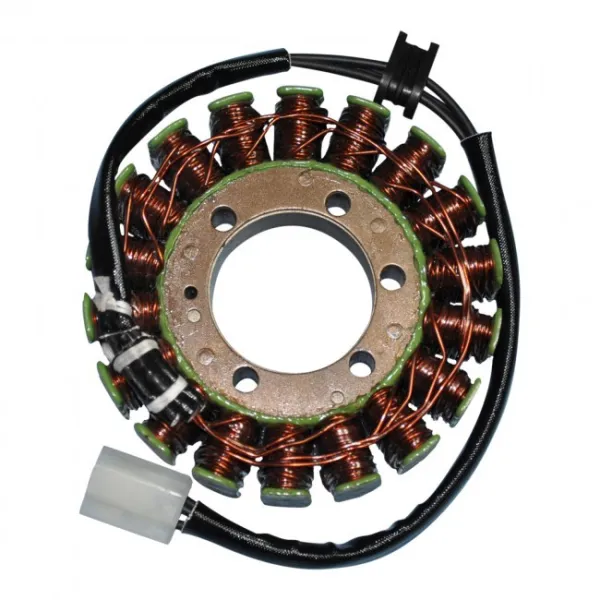

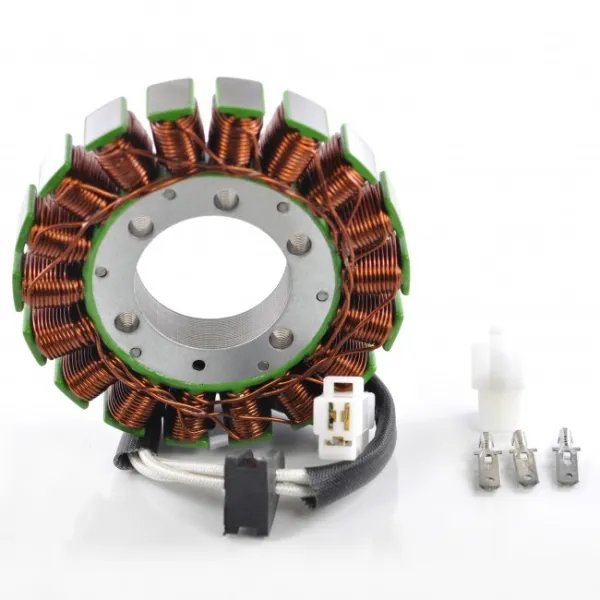

Stator-Honda-CBR600 F4

Stator

Resistant to 200 degrees Celsius

1999 Honda CBR 600 F4
2000 Honda CBR 600 F4

OEM 31120-MBW-611

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 107 mm
Thickness : 18 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 160 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +-20%
