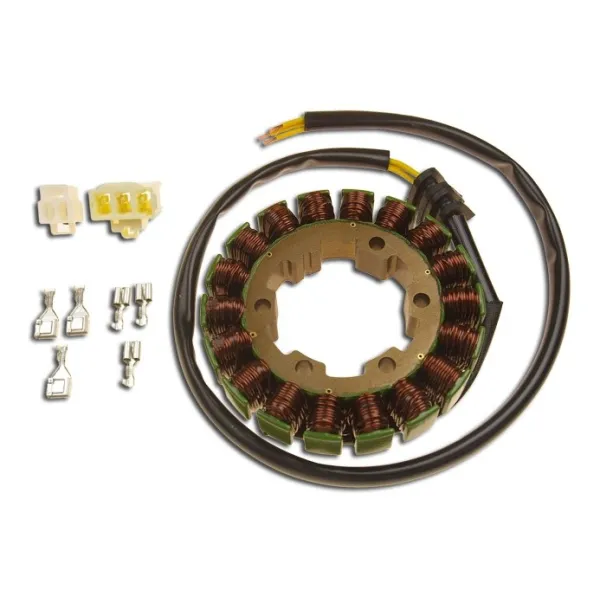

Stator Stator Honda CBR929RR Fireblade SC44 OEM 31120-MEF-003 31120-MCT-681 31120-MCT-003

Stator Honda CBR929RR Fireblade SC44 (2000-2001)

OEM 31120-MEF-003 31120-MCT-681 31120-MCT-003

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 114 mm
Thickness : 18 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 200 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +-20%
