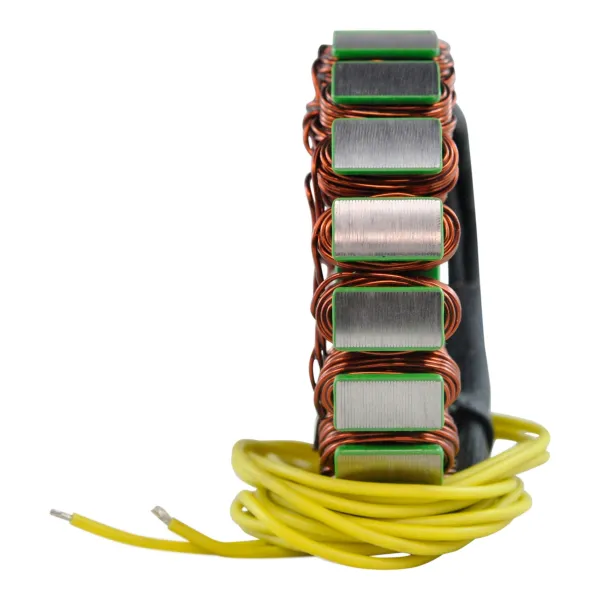

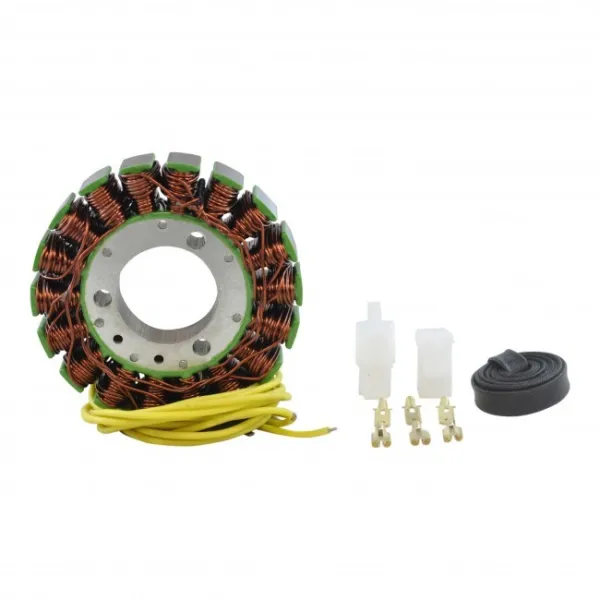

Stator Hyosung GV650 GT650 GT650 Comet GV650 Avitar

Stator

Resistant to 200 degrees Celsius

2013 Hyosung GT 650
2013 Hyosung GT 650 R
2013 Hyosung GV 650 Aquila Pro
2012 Hyosung GT 650
2012 Hyosung GT 650 R
2012 Hyosung GT 650 R T.T.
2012 Hyosung GV 650 Aquila Pro
2011 Hyosung GT 650
2011 Hyosung GT 650 R
2011 Hyosung GT 650 R T.T.
2011 Hyosung GV 650 Aquila
2010 Hyosung GT 650 Comet
2010 Hyosung GT 650 R
2010 Hyosung GT 650 R T.T.
2010 Hyosung GV 650 Aquila
2009 Hyosung GT 650 Comet
2009 Hyosung GT 650 R
2009 Hyosung GT 650 R T.T.
2009 Hyosung GT 650 S
2009 Hyosung GV 650 Avitar
2009 Hyosung GV 650 Special Edition
2009 Hyosung GV 650 T.T.
2008 Hyosung GT 650 Comet
2008 Hyosung GT 650 R Comet
2008 Hyosung GT 650 R T.T.
2008 Hyosung GT 650 S Comet
2008 Hyosung GV 650 Avitar
2008 Hyosung GV 650 Avitar T.T.
2007 Hyosung GT 650 Comet
2007 Hyosung GT 650 R Comet
2007 Hyosung GT 650 R T.T.
2007 Hyosung GT 650 S Comet
2007 Hyosung GV 650 Avitar
2007 Hyosung GV 650 Avitar T.T.
2006 Hyosung GT 650
2006 Hyosung GT 650 R Comet
2006 Hyosung GT 650 S Comet
2006 Hyosung GV 650 Avitar
2005 Hyosung GT 650 R Comet
2005 Hyosung GT 650 S Comet
2005 Hyosung GV 650 Avitar

Dimensions :
Interior diameter : 38mm
Exterior diameter : 101mm
Thickness : 20mm
Length of wires stator to terminals: 1000mm

Other specifications :
Number of wires : 3
Number of plugs : 0
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
