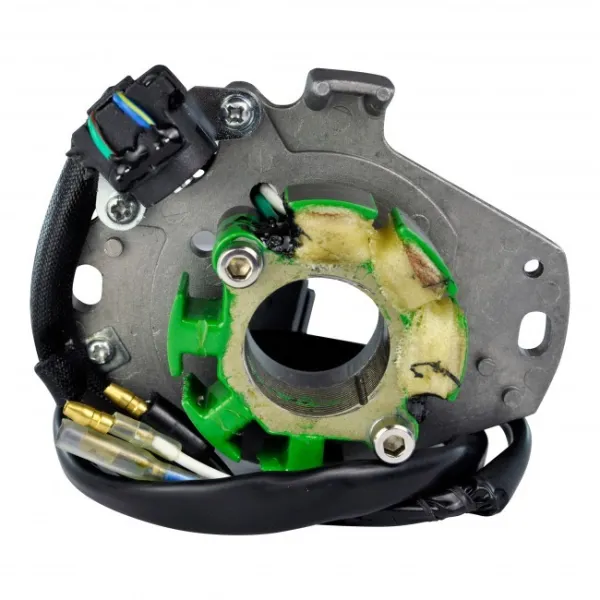

Stator Honda CR125R CR250R OEM 31100-KZ3-691 31100-KZ3-701 31100-KZ3-861 31100-KZ3-891 31100-KZ4-701 31100-KZ4-731

Stator Ignition Only

1990 Honda CR 125 R R
1991 Honda CR 125 R R
1992 Honda CR 125 R R
1993 Honda CR 125 R R
1994 Honda CR 125 R R
1995 Honda CR 125 R R
1996 Honda CR 125 R R

1990 Honda CR 250 R R
1991 Honda CR 250 R R
1992 Honda CR 250 R R
1993 Honda CR 250 R R
1994 Honda CR 250 R R
1995 Honda CR 250 R R
1996 Honda CR 250 R R

OEM

31100-KZ4-861
31100-KZ4-731
31100-KZ4-701
31100-KZ4-A11
31100-KZ3-701
31100-KZ3-861
31100-KZ3-891

Dimensions :
Interior diameter : 27 mm
Exterior diameter : 76 mm
Thickness : 26 mm
Length of wires stator to grommet : 80 mm
Length of wires grommet to plug : 440 mm
Length of pickup coil's wire to grommet : 145 mm

Other specifications :
Number of wires : 4
Number of plugs : 3
Number of pins : 4

Wire to wire resistance :
Pickup : Blue/White to Green/Red = 255 ohms +/-20%
Source : Blue to White = 35 ohms +/-20%
