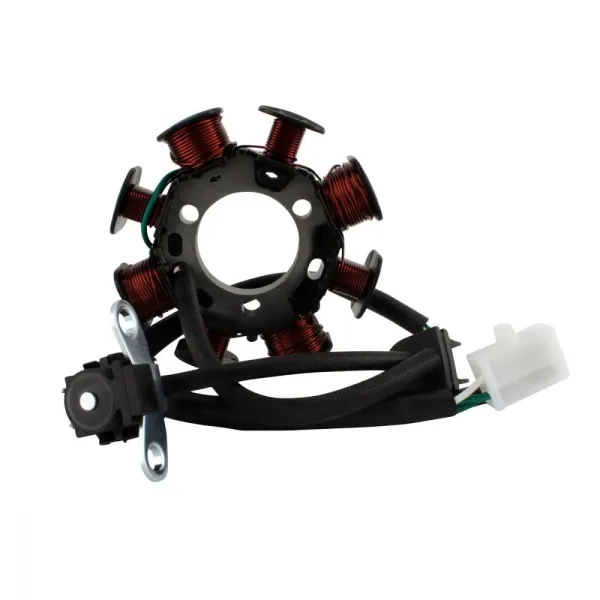

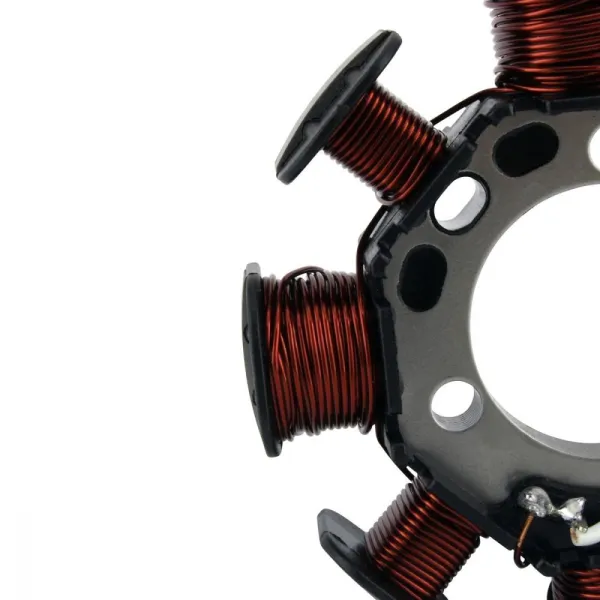

Stator Honda CR150F 2006-2009 2012-2017 OEM 31120-KPT-A01

2017 Honda CRF 150 F

2016 Honda CRF 150 F

2015 Honda CRF 150 F

2014 Honda CRF 150 F

2013 Honda CRF 150 F

2012 Honda CRF 150 F

2009 Honda CRF 150 F

2008 Honda CRF 150 F

2007 Honda CRF 150 F

2006 Honda CRF 150 F

OEM 31120-KPT-A01

Dimensions:

Interior diameter: 35 mm

Exterior diameter: 93 mm

Thickness: 8 mm

Length of wires stator to grommet: 150 mm

Length of wires grommet to plug: 300 mm

Length of pickup coil's wire to grommet:100 mm

Other specifications:

Number of wires: 4

Number of plugs: 2

Number of pins: 3

Number of poles: 8

Wire to wire resistance:

Alternator: White to Green = 1.1 ohms +-20%

Pickup: Blue/Yellow to Green = 240 ohms +-20%
