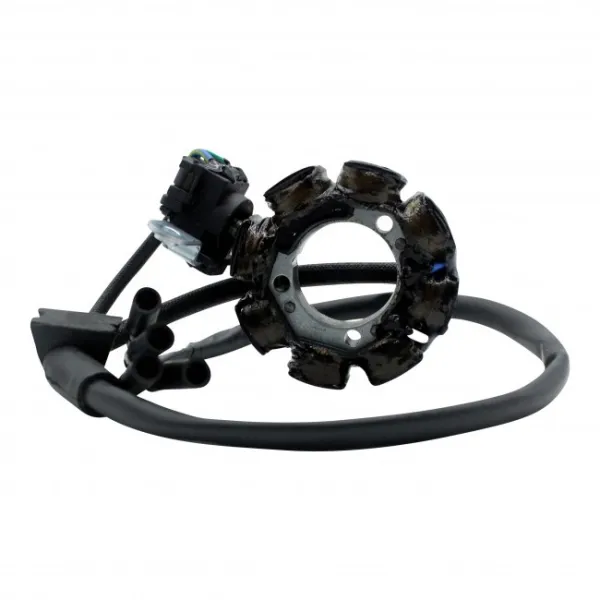

Stator Honda Honda CRF450R 2002-2003

Stator Resistant to 200°C - Ignition Only

2003 Honda CRF 450 R
2002 Honda CRF 450 R

OEM

31100-MEB-670
31100-MEB-671

Dimensions :
Interior diameter : 28mm
Exterior diameter : 60mm
Thickness : 13mm
Length of wires stator to grommet : 110mm
Length of wires grommet to plug : 300mm
Length of pickup coil's wire to grommet : 50mm

Other specifications :
Number of wires : 4
Number of plugs : 4
Number of pins : 4

Wire to wire resistance :
Pickup : Green to Blue = 270 ohms +/-20%
Source : White/Green to Blue/Yellow = 22 ohms +/-20%
