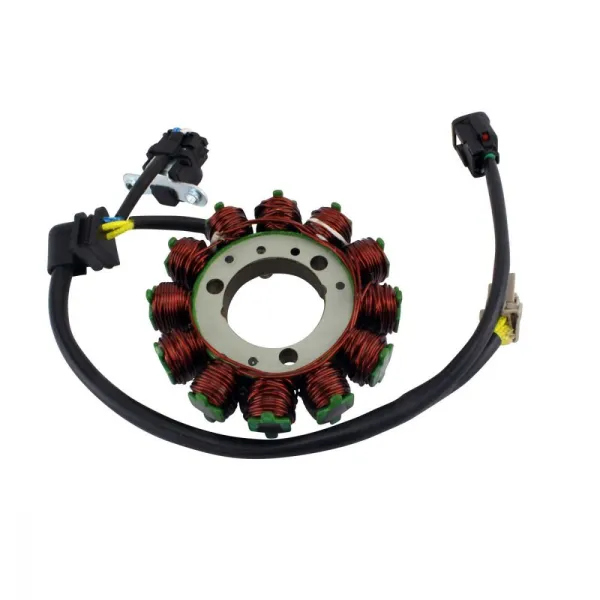

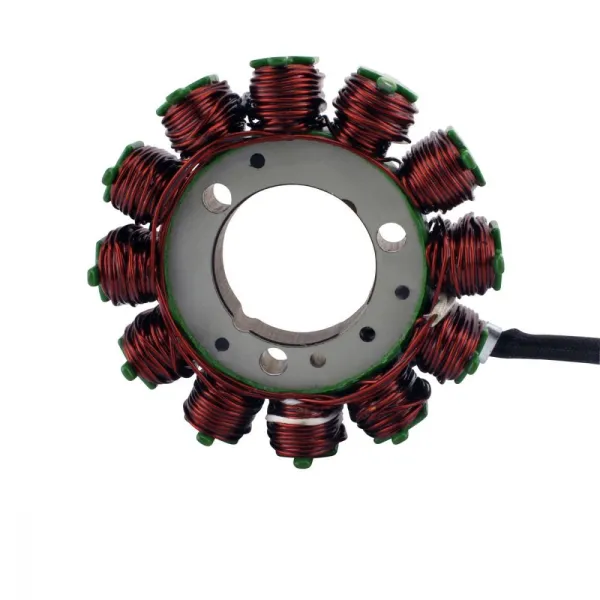

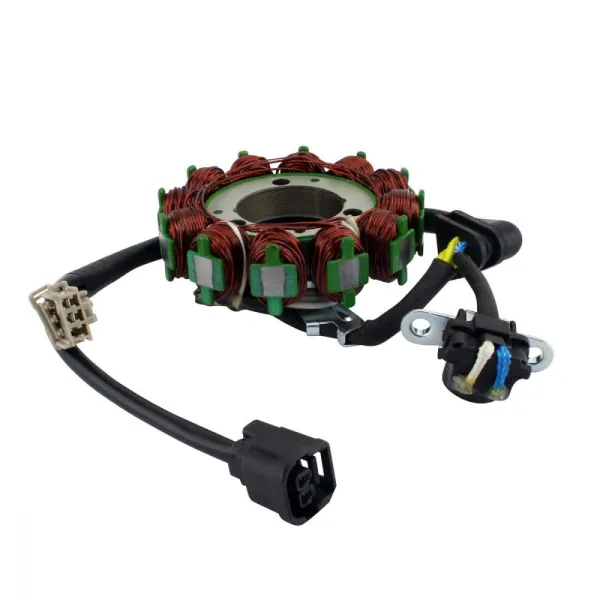

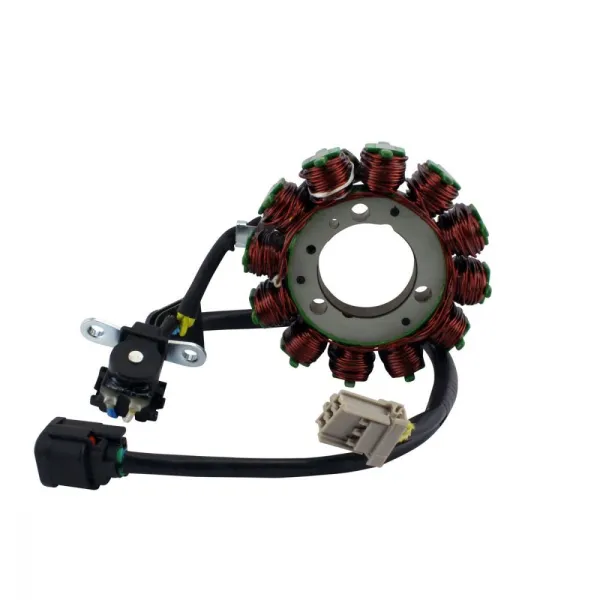

Stator Honda CRF450R CRF450RX OEM 31120-MKE-AF1

Stator Resistant to 200°C - Ignition Only

2021-2025 Honda CRF 450 RX
2021-2025 Honda CRF 450 R

OEM 31120-MKE-AF1

Dimensions:
Interior diameter: 35 mm
Exterior diameter: 89 mm
Thickness: 9 mm
Length of wires stator to grommet: 60 mm
Length of wires grommet to plug: 215 mm
Length of pickup coil's wire to grommet: 45 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 12
Wire to wire resistance:
Alternator: Yellow to Yellow = 1 ohms +-20%
Pickup: Blue/Yellow to White/Yellow = 240 ohms +-20%
