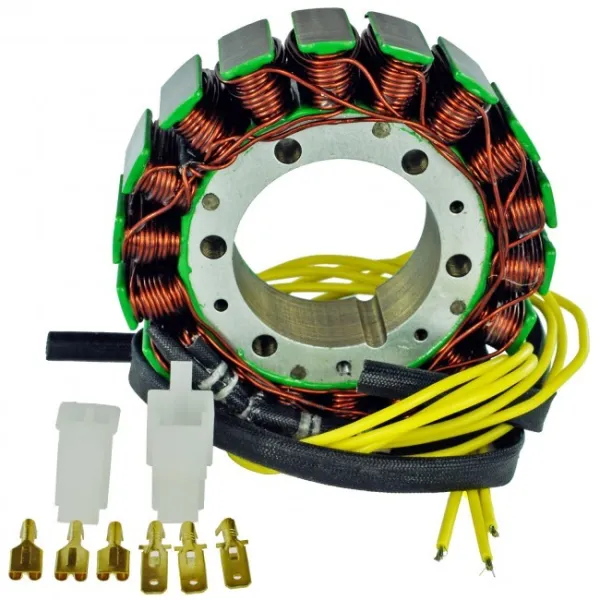

Stator-Honda-CX500

Stator-Honda-CX500

€152.40 Tax included

Resistant to 200 degrees Celsius-CX500

Reference
CARM01014-BEG08
5-7 Days (2 Items)

Stator

1980 Honda CX 500 Custom CX500C
1981 Honda CX 500 Custom CX500C
1982 Honda CX 500 Custom CX500C

1982 Honda CX 500 Turbo CX500TC

1983 Honda CX 650 Custom CX650C

1983 Honda CX 650 Turbo CX650TC

OEM
31120-ma1-005
31120-maa-005
31120-mah-005
31120-mba-004
31120-mc7-005
31120-mck-000
31120-me9-005
31120-mg8-005
31120-mk7-005
31120-mn8-004
31120-mr5-015
31120-mr5-870
31120-mr5-871
32101-05a00
32101-16G00


Resistant to 200 degrees Celsius.

Dimensions :
Interior diameter : 53 mm
Exterior diameter : 115 mm
Thickness : 27 mm
Length of wires stator to terminals : 600 mm
Other specifications :
Number of wires : 3
Number of plugs : 0
Number of pins : 3
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms +/-20%
Alternator : Yellow to Ground = O.L. on display
