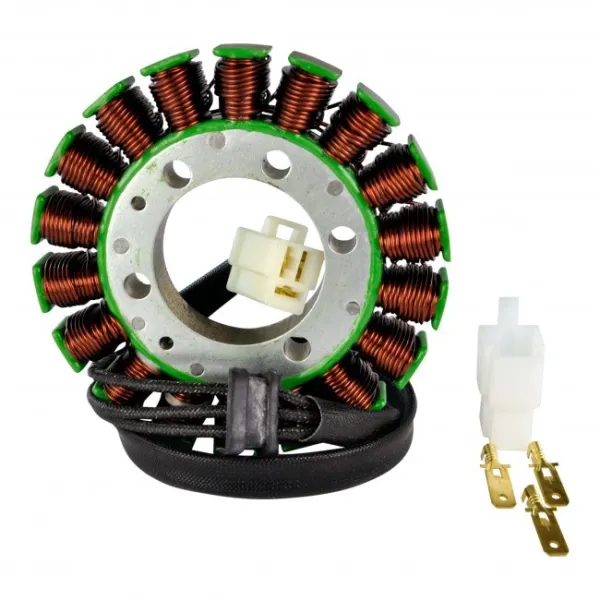

Stator Kawasaki EX500 Ninja

Stator Kawasaki EX500 Ninja (2006-2011)

OEM
21003-0041
21003-0042

Dimensions :
Interior diameter : 41 mm
Exterior diameter : 102 mm
Thickness : 14 mm
Length of wires stator to grommet: 65 mm
Length of wires grommet to plug: 300 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
