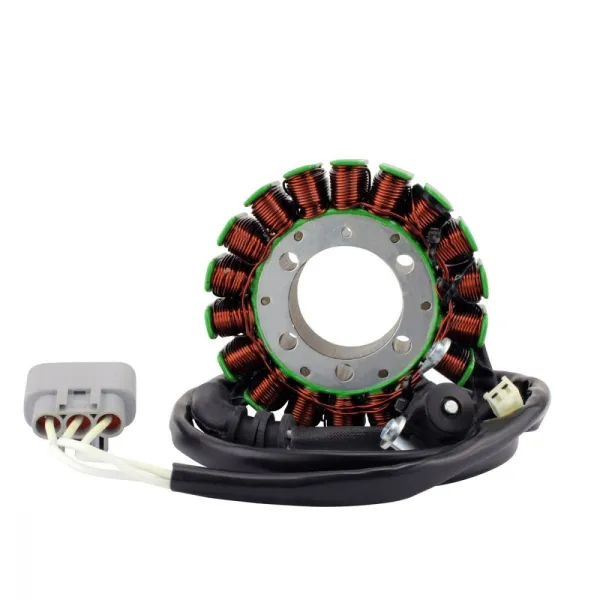

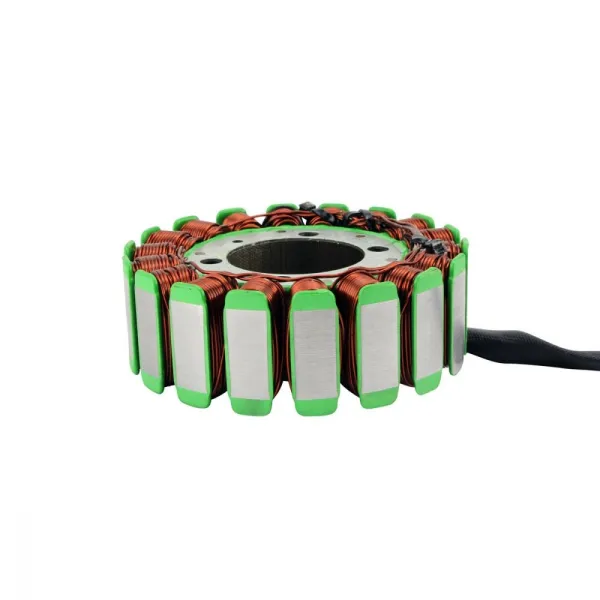

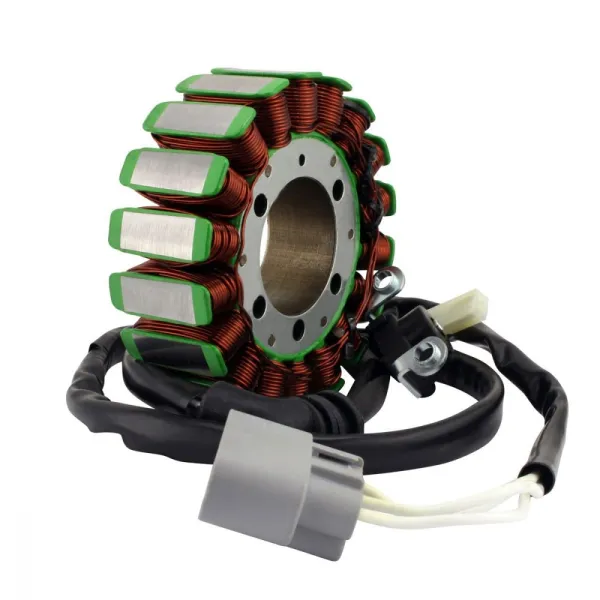

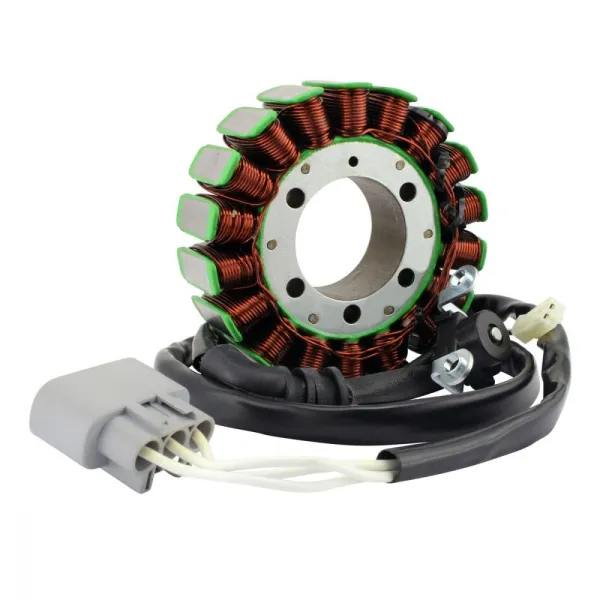

Stator Yamaha Tracer 900 MT09 XSR 900 FZ09 FZ09 OEM 1RC-81410-00-00

2021 Yamaha XSR 900
2020 Yamaha XSR 900
2020 Yamaha Tracer 900
2020 Yamaha MT-09
2019 Yamaha XSR 900
2019 Yamaha Tracer 900
2019 Yamaha MT-09
2018 Yamaha XSR 900
2018 Yamaha MT-09
2017 Yamaha XSR 900
2017 Yamaha FZ-09
2017 Yamaha FJ-09
2016 Yamaha XSR 900
2016 Yamaha FZ-09
2016 Yamaha FJ-09
2015 Yamaha FZ-09
2015 Yamaha FJ-09
2014 Yamaha FZ-09

OEM 1RC-81410-00-00

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 105 mm
Thickness: 27 mm
Length of wires stator to grommet: 155 mm
Length of wires grommet to plug: 600 mm & 800 mm
Length of pickup coil's wire to grommet: 60 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: White to White = 0.5 ohms +-20%
Alternator: White to ground = O.L
Pickup: Black to Grey = 272 ohms +-20%
