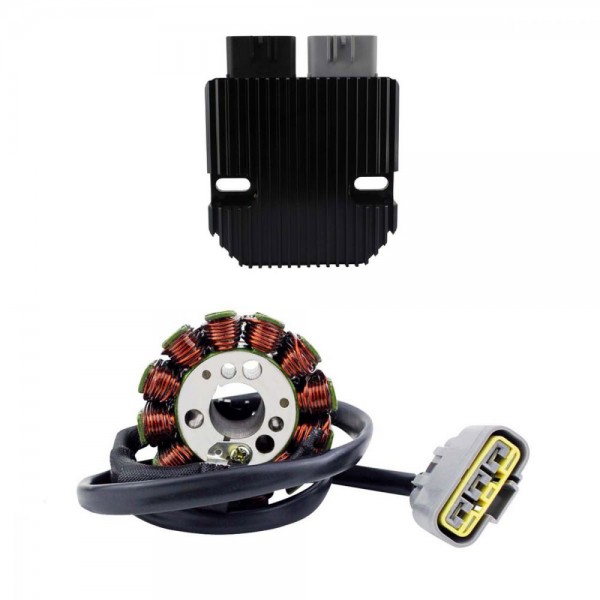

REVOLT Regulator Stator Yamaha FZS1000 FZ1 FZ8 YZF R1 OEM 2D1-81410-00-00 2D1-81410-01-00 2D1-81410-10-00 5VY-81410-00-00

REVOLT Regulator Rectifier Generator Stator Yamaha FZS1000 FZ1 FZ8 YZF R1

2014 Yamaha FZ 1
2013 Yamaha FZ 1
2012 Yamaha FZ 1
2012 Yamaha FZ 8
2011 Yamaha FZ 1
2011 Yamaha FZ 8
2010 Yamaha FZ 1
2009 Yamaha FZ 1
2008 Yamaha FZ 1
2008 Yamaha YZF R1
2007 Yamaha FZ 1
2007 Yamaha YZF R1
2006 Yamaha FZ 1
2006 Yamaha YZF R1
2006 Yamaha YZF R1 LE
2005 Yamaha YZF R1
2004 Yamaha YZF R1

OEM 2D1-81410-01-00
5VY-81410-00-00
2D1-81410-10-00

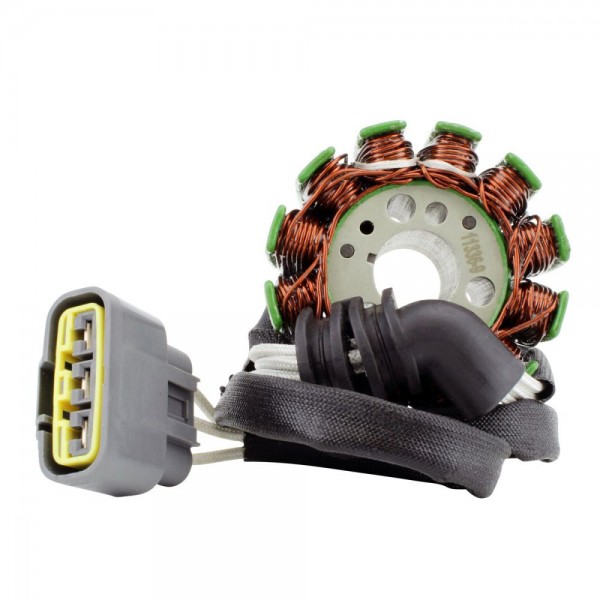

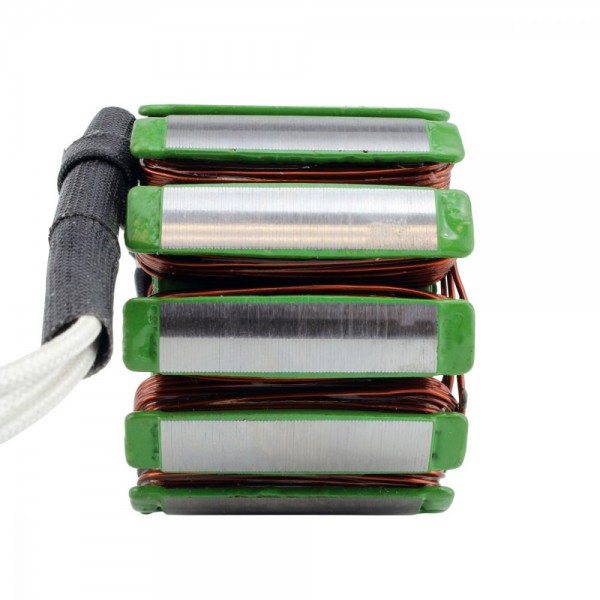

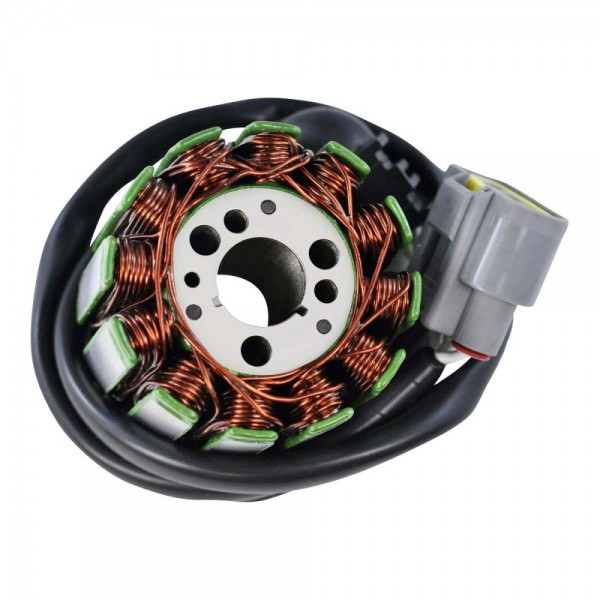

Dimensions Stator :
Interior diameter : 18mm
Exterior diameter : 68mm
Thickness : 42mm

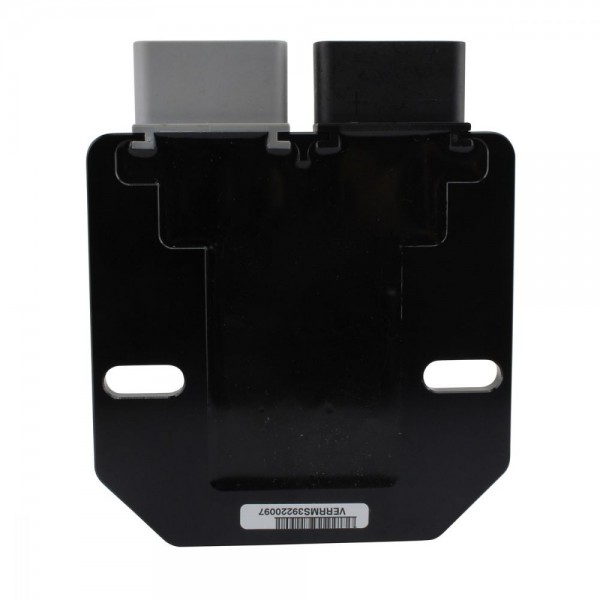

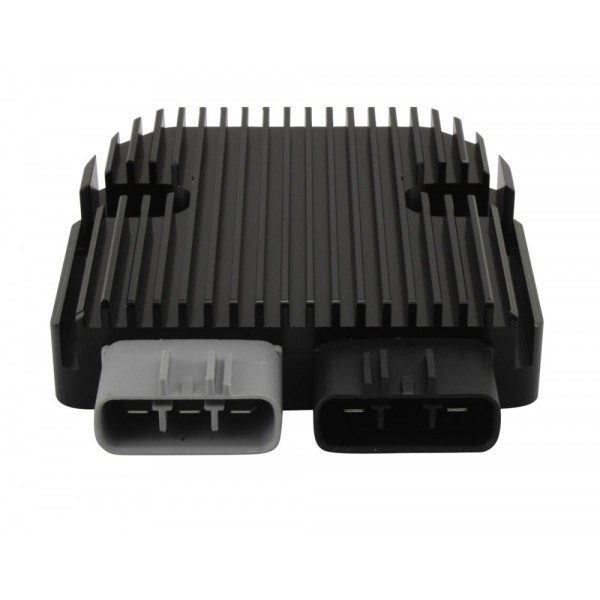

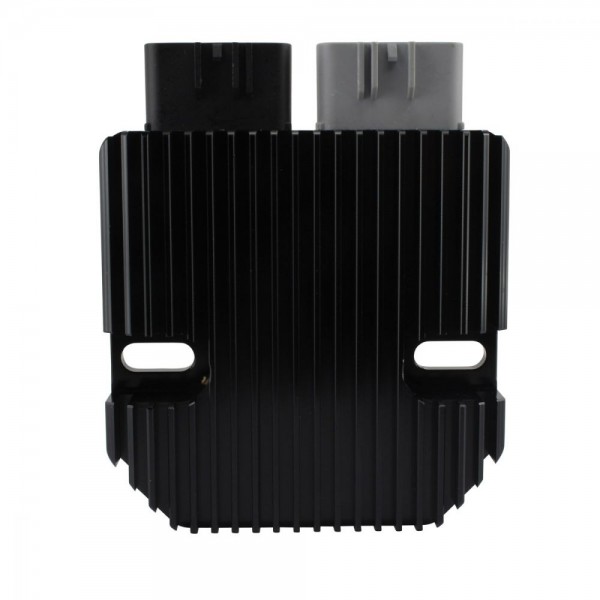

REVOLT Voltage Regulator Rectifier :

Width: 103 mm

Length: 102 mm

Height: 26 mm

Fixation holes center to center: 78 mm

Other specifications:

Number of plugs: 2

Number of pins: 5

Number of wires: 0

Minimum Charging Voltage: 14.5 V +/- 0.5 V

Maximum Charging Current: 50 A / 500 W

Open Circuit Voltage: < 15 V

Operation Temperature: -20° C to 85°C

RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products.

SOLVES THE MAJOR CAUSE OF FAILURE
REVOLT is the only voltage regulator rectifier on the market with a redesigned rectifier circuit to considerably improve reliability.

DISSIPATE HEAT 45% BETTER THAN OEM

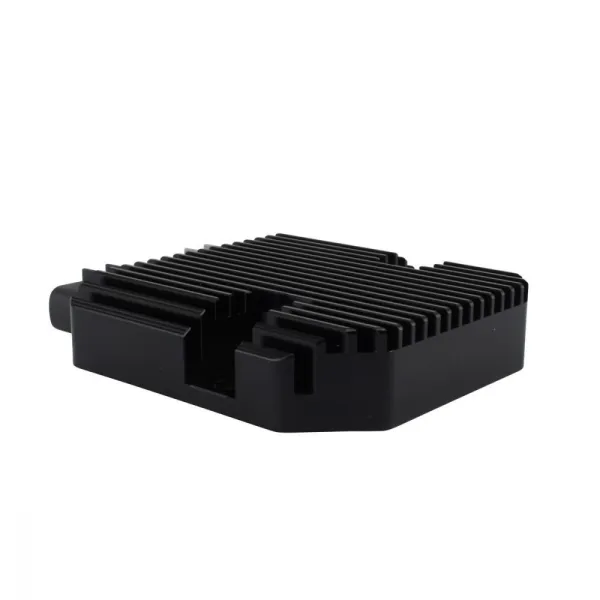

Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

REVOLT is engineered, designed, and manufactured in USA under strict USA-based quality control standards.
