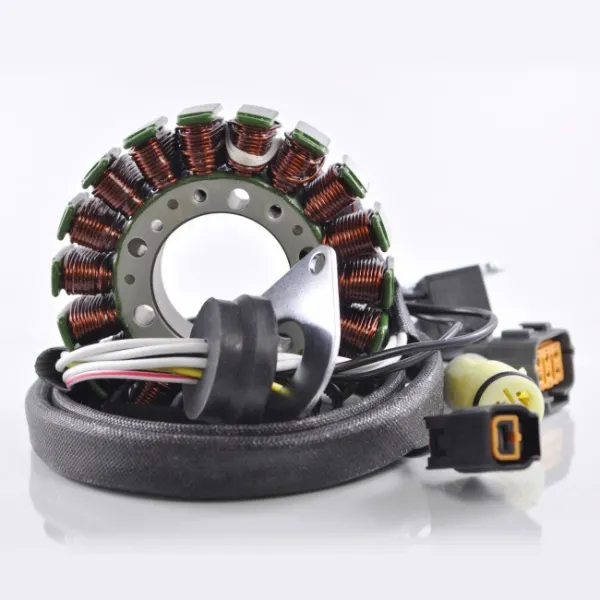

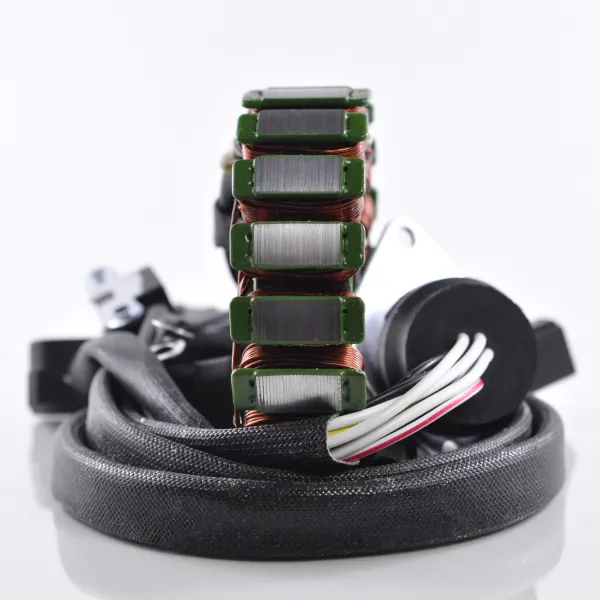

Stator Yamaha Waverunner GP1300R 2003-2008

Stator - Highest grade copper windings, resistant to 200 degrees Celsius

2008 Yamaha Waverunner GP 1300 R
2007 Yamaha Waverunner GP 1300 R
2006 Yamaha Waverunner GP 1300 R
2005 Yamaha Waverunner GP 1300 R
2004 Yamaha Waverunner GP 1300 R
2003 Yamaha Waverunner GP 1300 R

OEM 60T-81410-00-00
60T-81410-01-00

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 104 mm
Thickness : 22.5 mm
Length of wires stator to grommet : 57 mm
Length of wires grommet to plug : 990 mm
Length of pickup 1 coil's wire to grommet : 90 mm
Length of pickup 2 coil's wire to grommet : 260 mm
Length of pickup 3 coil's wire to grommet : 160 mm

Other specifications :
Number of wires : 9

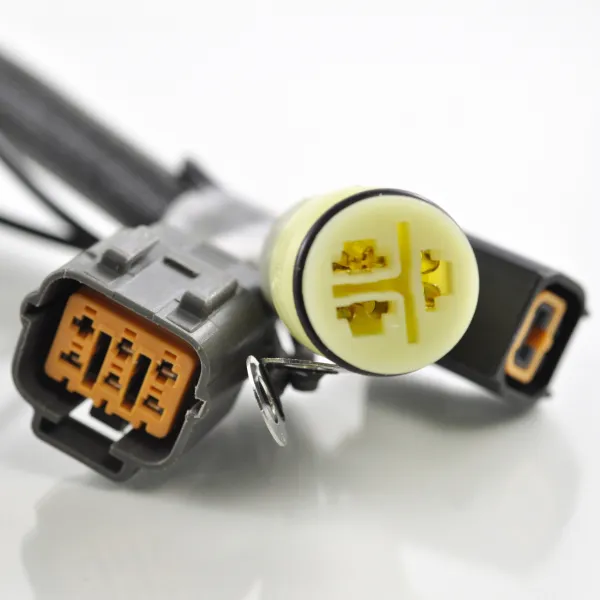

Number of plugs : 3
Number of pins : 9

Wire to wire resistance :
Alternator : Green to Green = 0.9 ohms +-20%
Pickup 1 : White/Yellow to Black = 527 ohms +-20%
Pickup 2 : White/Black to Black = 526 ohms +-20%
Pickup 3 : White/Red to Black = 520 ohms +-20%
