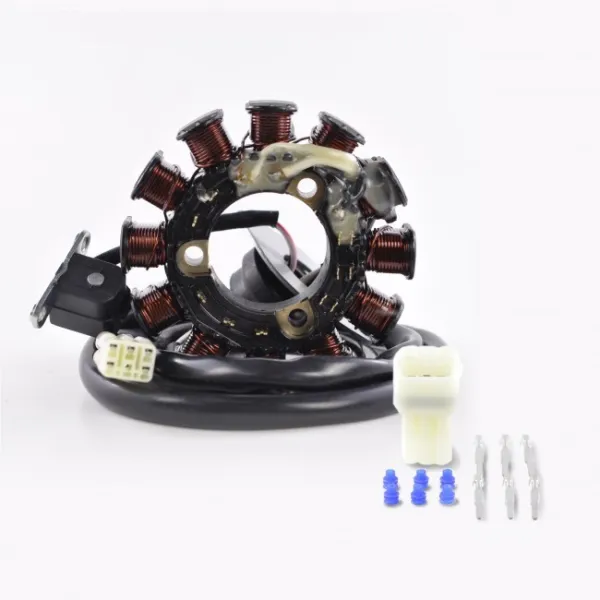

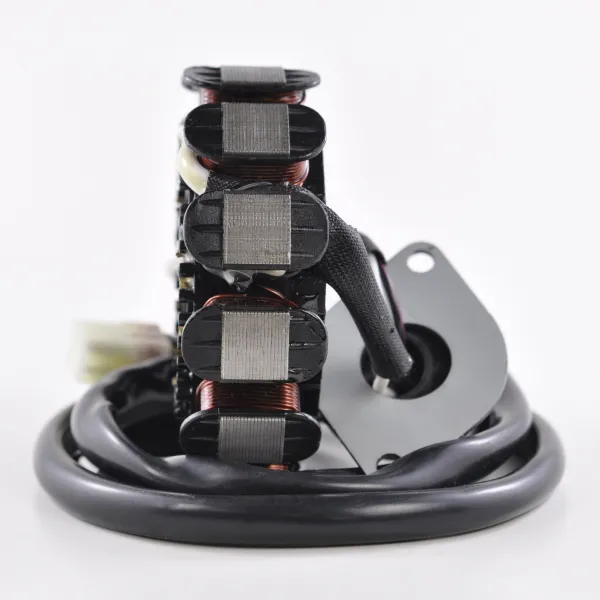

Stator Yamaha Waverunner XLT1200 Waverunner GP1200 Waverunner XL1200 OEM 66V-85510-00-00

Stator - Highest grade copper windings, resistant to 200 degrees Celsius

    2005
        Yamaha
            Waverunner XLT 1200
                PWC 2005 Yamaha Waverunner XLT 1200
    2004
        Yamaha
            Waverunner XLT 1200
                PWC 2004 Yamaha Waverunner XLT 1200
    2003
        Yamaha
            Waverunner XLT 1200
                PWC 2003 Yamaha Waverunner XLT 1200
    2002
        Yamaha
            Waverunner GP 1200
                PWC 2002 Yamaha Waverunner GP 1200
            Waverunner XLT 1200
                PWC 2002 Yamaha Waverunner XLT 1200
    2001
        Yamaha
            Waverunner GP 1200
                PWC 2001 Yamaha Waverunner GP 1200
            Waverunner XL 1200
                PWC 2001 Yamaha Waverunner XL 1200
            XR 1800
                PWC 2001 Yamaha XR 1800
    2000
        Yamaha
            Waverunner GP 1200
                PWC 2000 Yamaha Waverunner GP 1200
            Waverunner XL 1200
                PWC 2000 Yamaha Waverunner XL 1200
            XR 1800
                PWC 2000 Yamaha XR 1800
    1999
        Yamaha
            Waverunner XL 1200
                PWC 1999 Yamaha Waverunner XL 1200

OEM 66V-85510-00-00

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 103 mm
Thickness : 16 mm
Length of wires stator to grommet : 55 mm
Length of wires grommet to plug : 165 mm
Length of pickup coil's wire to grommet : 95 mm

Other specifications :
Number of wires :5
Number of plugs : 1
Number of pins : 5

Wire to wire resistance :
Alternator : White To White = 0.9 ohms +-20%
Pickup : Yellow/Red Tot Black/red = 506 ohms +-20%
