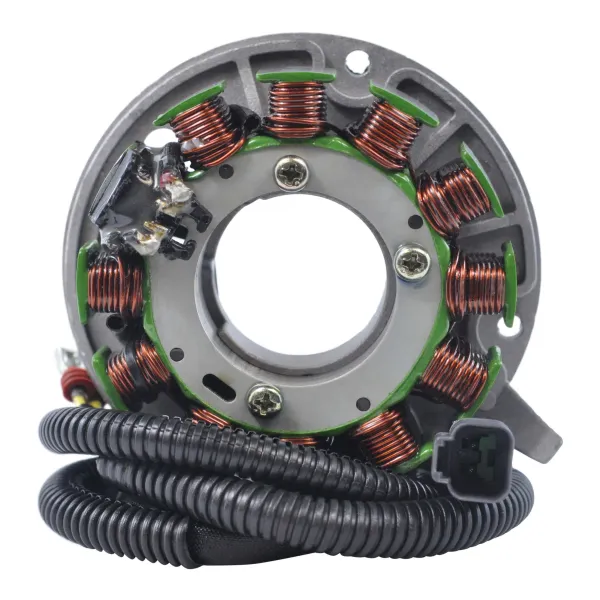

Stator-SkiDoo-Expedition Grand Touring MX Z Renegade Skandic Tundra 550 600 2010-2016

Stator
Resistant to 200 degrees Celsius

2016
Ski-doo
Expedition 550 Sport Carb F/C
Skandic 550 WT Carb F/C
Skandic 600 SWT EFI L/C
Skandic 600 WT EFI L/C
Tundra 550 Carb F/C
Tundra 550 Sport Carb F/C

2015
Ski-doo
Expedition 550 Sport Carb F/C
Grand Touring Sport 550 Carb F/C
Skandic 550 SWT Carb F/C
Skandic 550 WT Carb F/C
Tundra 550 Carb F/C
Tundra 550 Sport Carb F/C

2014
Ski-doo
Expedition 550 Sport Carb F/C
Grand Touring Sport 550 Carb F/C
MX Z 550 Sport Carb F/C
Renegade 550 Sport Carb F/C
Skandic 550 SWT Carb F/C
Skandic 550 WT Carb F/C
Tundra 550 Carb F/C
Tundra 550 Sport Carb F/C

2012
Ski-doo
Expedition 550 Sport Carb F/C
Grand Touring Sport 550 Carb F/C
MX Z 550 Sport Carb F/C
Renegade 550 Sport Carb F/C
Skandic 550 Tundra Carb F/C
Skandic 550 WT Carb F/C
Tundra 550 Carb F/C
Tundra 550 Sport Carb F/C

2010
Ski-doo
Grand Touring Sport 550 Carb F/C
MX Z 550 TNT Carb F/C
Renegade 550 Sport Carb F/C
Skandic 550 Tundra Carb F/C


OEM
420889367

Dimensions :
Interior diameter : 44mm
Exterior diameter : 96mm
Thickness : 18mm
Length of wires stator to connector: 420mm & 550mm

Other specifications :
Number of wires : 4
Number of plugs : 2
Number of pins : 4

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4ohms +/-20%
Source : Black to Red = 0.8ohms +/-20%
