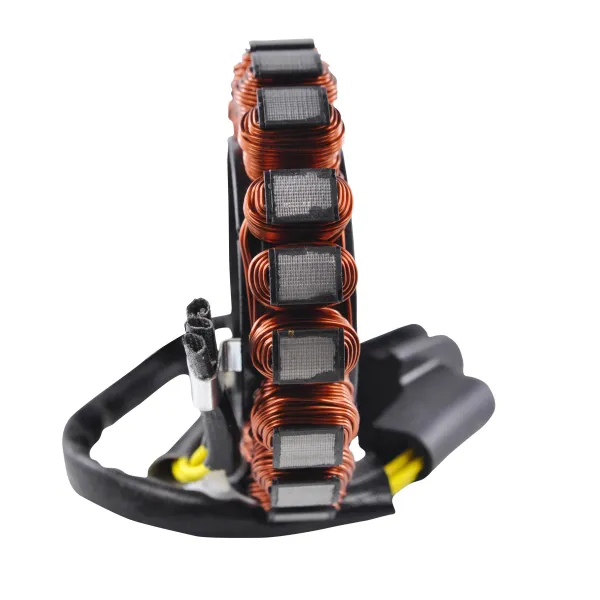

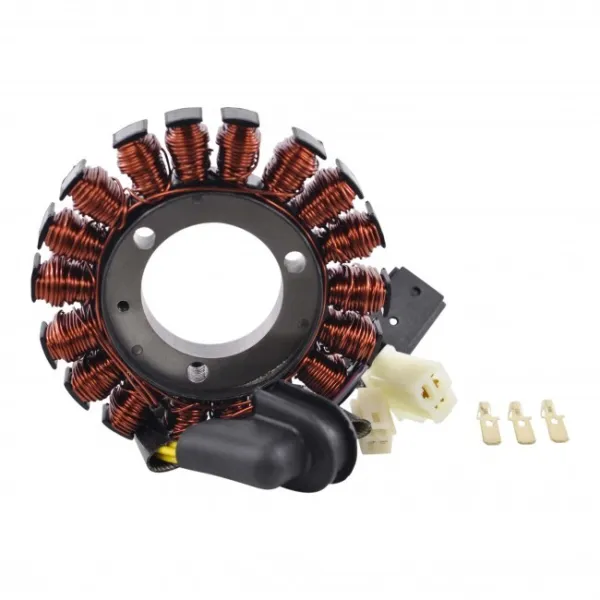

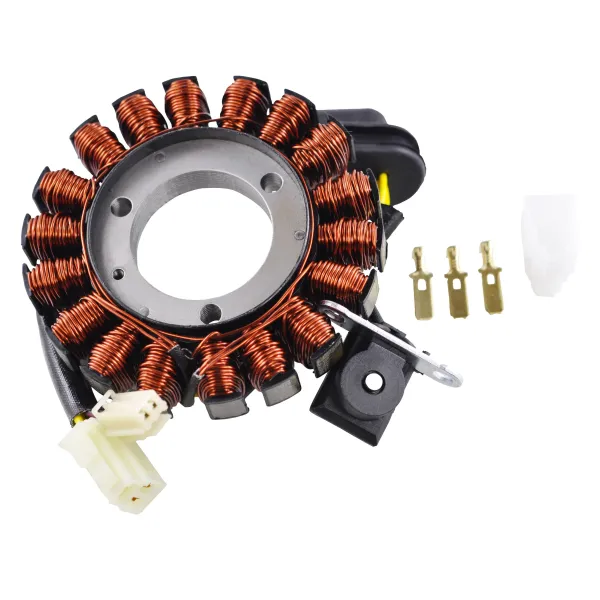

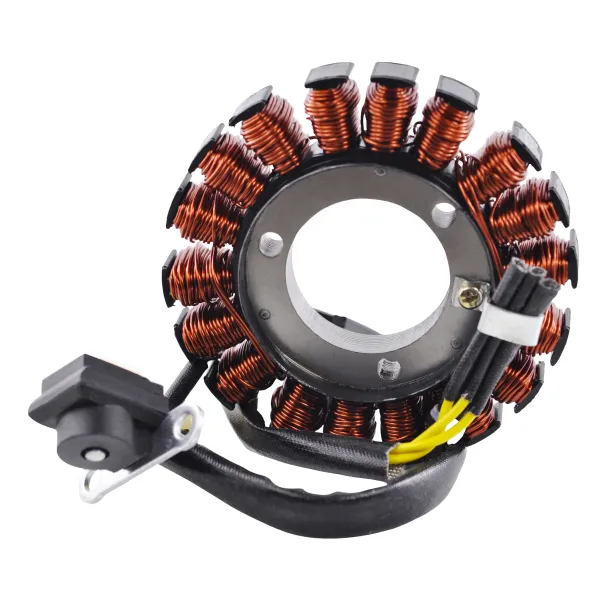

Stator Suzuki GSX1250 GSX650F GSF1250 Bandit OEM 32101-18H00

Stator

2016 Suzuki GSF 1250 Bandit
2011 Suzuki GSX 1250
2009 Suzuki GSF 1250 Bandit
2009 Suzuki GSX 650 F
2008 Suzuki GSF 1250 Bandit
2008 Suzuki GSX 650 F
2007 Suzuki GSF 1250 Bandit

OEM 32101-18H00

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 107 mm
Thickness : 12 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 170 mm
Length of pickup coil's wire to grommet : 35 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Between each Black = 0.5 ohms +-20%
Pickup : Black to Black/Red = 117 ohms +-20%

Resistant to 200 degrees Celsius
