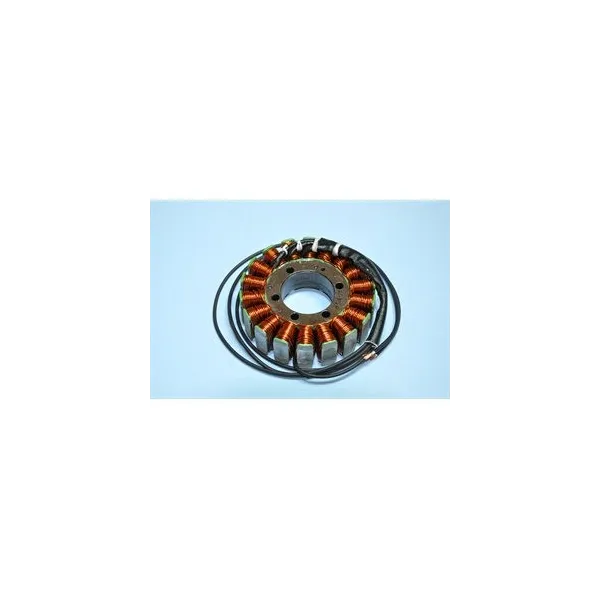

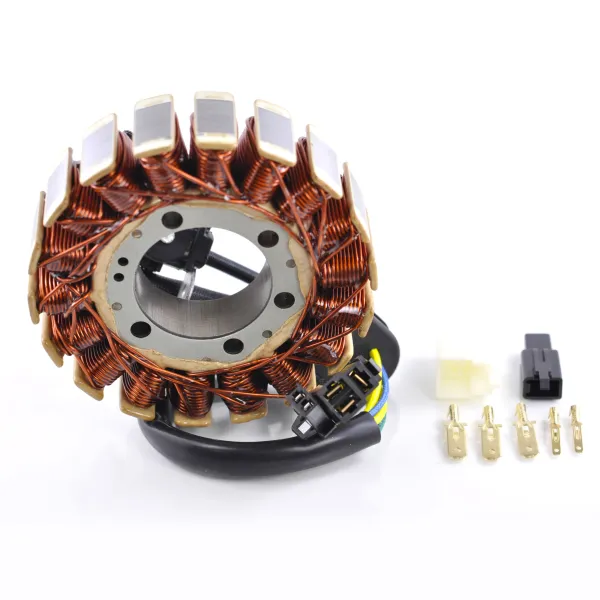

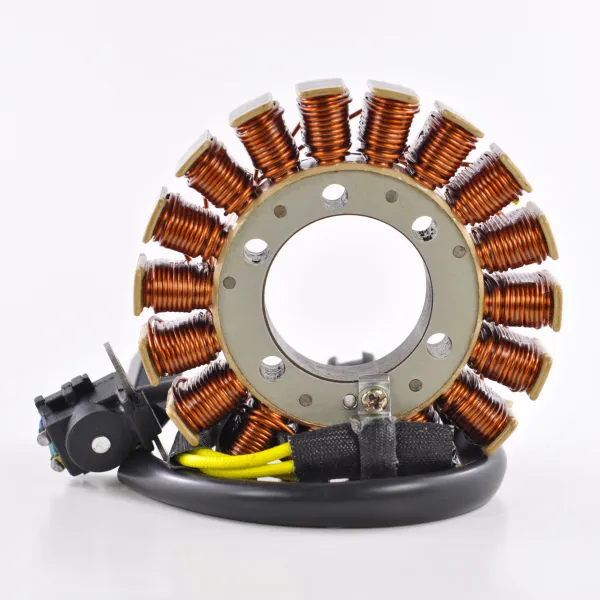

Stator-Suzuki-GSX1300 B-King

Stator

Resistant to 200 degrees Celsius

2008  Suzuki Street Bike,  GSX1300  B-King

2009  Suzuki Street Bike,  GSX1300  B-King

OEM 32101-24F20
32101-24F30


Dimensions :
Interior diameter : 42 mm
Exterior diameter : 108 mm
Thickness : 22 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 200 mm
Length of pickup coil's wire to grommet : 55 mm

Other specifications :

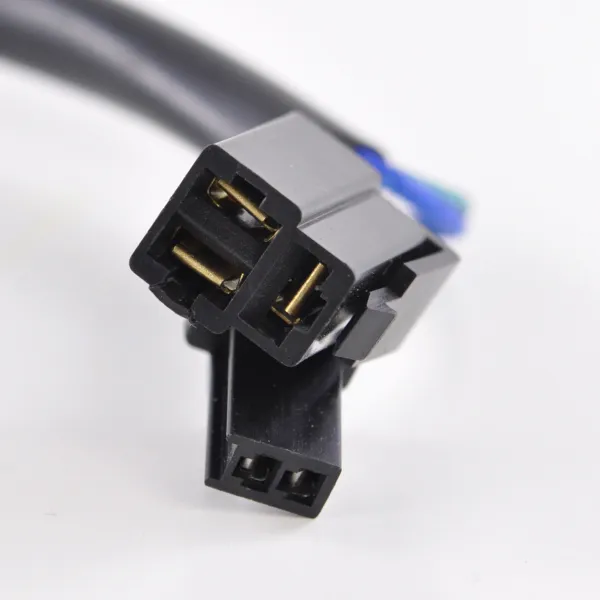

Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : White to White = 0.5 ohms +-20%
Pickup : Blue to Green = 239 ohms +-20%
